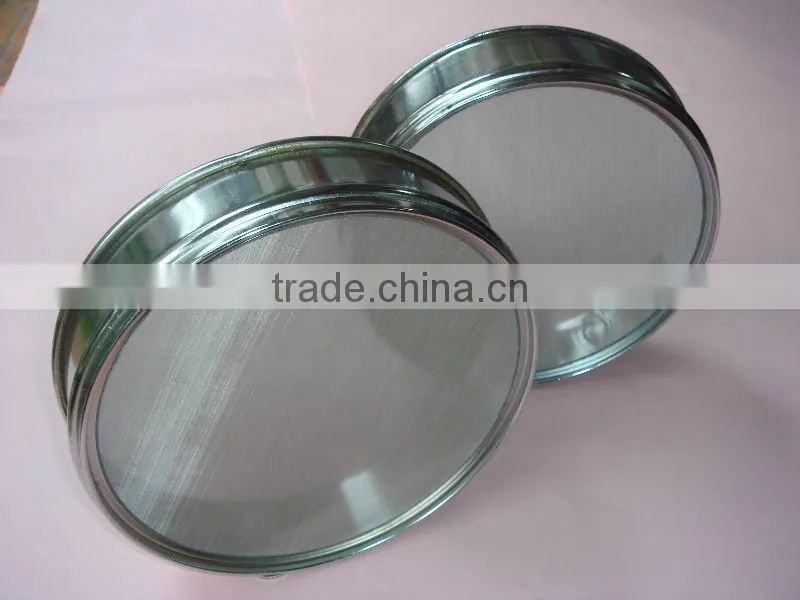

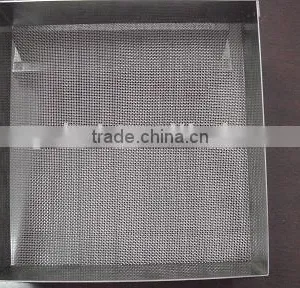

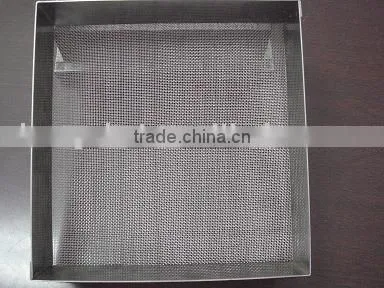

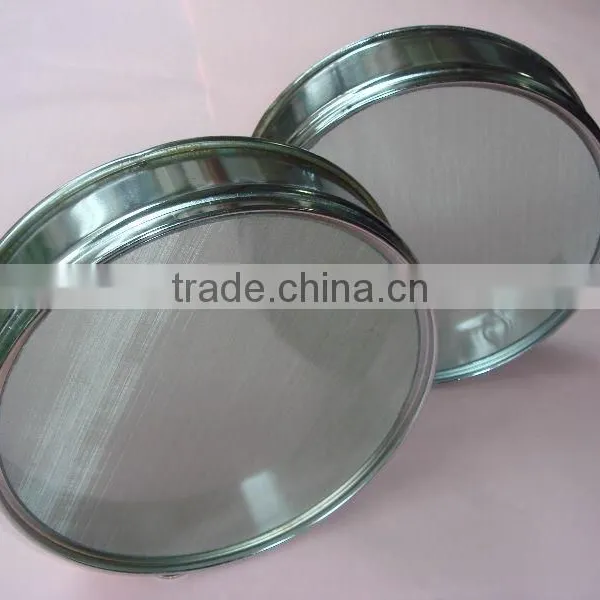

standard test sieve , Stainless Steel Standard Test Sieve; Vibrating Sieve; Wire Mesh Sieve
Application:
The standard testing sieve is applied to exact mesh analysis, test, measure, classification for powdery material in lab, hospital, pharmacy, foodstuff, metallurgy, construction etc departments
Features:
The frame of testing sieve is made of SUS 304# stainless steel, the thickness is 0.6 mm, firm and durable, no magnetism.
Sieve and frame are soldered all around, then make a mosaic base, as the frame is two-double, so that the testing sieve is more firm and durable.
The testing sieve is processed by use special electrochemistry methods, and coat chrome, so the surface of testing sieve is exact, glazed and wearable,it will not get distorted after long time use .
Specifications:
- Diameter: 20cm
- Mesh:8-635
- Side pad used around the circle
- Seamless circle above the stainless steel mesh
Quality control
In order to guarantee its high quality, our company equips full time test personnel and special test apparatus, such as microscope, projector, balance and dens meter etc. and it is produced accord with
The aperture size can be customized according to clients' requirements.
Mesh |
Wire Dia(mm) |
Opening(mm) |
Material(AISI) |
2mesh*2mesh |
1.8 |
10.9 |
304 or 316 |
3mesh*3mesh |
1.5 |
6.96 |
304 or 316 |
4mesh*4mesh |
1 |
5.35 |
304 or 316 |
7mesh*7mesh |
1 |
2.63 |
304 or 316 |
10mesh*10mesh |
0.6 |
1.94 |
304 or 316 |
12mesh*12mesh |
0.5 |
1.62 |
304 or 316 |
16mesh*16mesh |
0.4 |
1.19 |
304 or 316 |
16mesh*16mesh |
0.35 |
1.24 |
304 or 316 |
18mesh*18mesh |
0.35 |
1.06 |
304 or 316 |
20mesh*20mesh |
0.4 |
0.87 |
304 or 316 |
24mesh*24mesh |
0.26 |
0.8 |
304 or 316 |
30mesh*30mesh |
0.3 |
0.55 |
304 or 316 |
35mesh*35mesh |
0.17 |
0.56 |
304 or 316 |
40mesh*40mesh |
0.23 |
0.4 |
304 or 316 |
50mesh*50mesh |
0.2 |
0.31 |
304 or 316 |
60mesh*60mesh |
0.15 |
0.27 |
304 or 316 |
70mesh*70mesh |
0.12 |
0.24 |
304 or 316 |
80mesh*80mesh |
0.13 |
0.19 |
304 or 316 |
90mesh*90mesh |
0.1 |
0.16 |
304 or 316 |
100mesh*100mesh |
0.09 |
0.15 |
304 or 316 |
120mesh*120mesh |
0.063 |
0.12 |
304 or 316 |
150mesh*150mesh |
0.053 |
0.11 |
304 or 316 |
180mesh*180mesh |
0.053 |
0.09 |
304 or 316 |
200mesh*200mesh |
0.04 |
0.07 |
304 or 316 |
250mesh*250mesh |
0.04 |
0.063 |
316 |
300mesh*300mesh |
0.04 |
0.044 |
316 |
325mesh*325mesh |
0.035 |
0.043 |
316L |
350mesh*350mesh |
0.03 |
0.042 |
316L |
400mesh*400mesh |
0.03 |
0.33 |
316L |
450mesh*450mesh |
0.028 |
0.028 |
316L |
500mesh*500mesh |
0.025 |
0.026 |
316L |
You’re welcome to contact us freely if you are interested in our products.
