Home > Instruments & Meters > Test Instrument > Test Machine > Lab Test Sieve

Lab Test Sieve

Name: Lab Test Sieve
Brand: shangshai
SKU: 139710977
Availability: InStock

US$ 8 - 25 MOQ: 2 Sets

Key Specifications

Get Latest Price

Place of Origin:

Shanghai, China

Brand Name:

shangshai

Model Number:

SS-LTS

Contact Supplier Request Quote Chat Now

Shanghai Shangshai Bolting Cloth Manufacturing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shanghai, China

Brand Name shangshai

Model Number SS-LTS

Power Electronic

Usage Auto Testing Machine

Laboratory Stainless Steel Mesh Test Sieve/ stainless steel standard lab test salt sieve woven wire mesh test sieve/Lab test sieve

Product Description

Application: The stainless steel test sieve is applied to exact mesh analysis, test, measure, classification for powdery material in lab, hospital, pharmacy, foodstuff, metallurgy, construction departments,etc.

Aperture sizes are as per 25μm,38μm, 45μm, 53μm, 63μm, 75μm, 80μm, 90μm, 100μm, 106μm, 125μm, 150μm, 160μm, 180μm, 200μm, 212μm, 250μm, 300μm, 315μm, 355μm, 400μm, 425μm, 500μm, 600μm, 630μm, 710μm, 800μm, 850μm, 1.00mm, 1.18mm, 1.25mm, 1.40mm, 1.60mm, 1.70mm, 2.00mm, 2.36mm, 2.50mm, 2.80mm, 3.35mm, 4.00mm, 4.75mm,5.00mm,10mm

Stainless Steel Standard Sieve:

1.Mesh material : SS304/316/304L/316L,etc.

2.Wire dia : 0.025--2.0mm

3.Diameter : 3'' , 6'' , 8'' , 10'' , 12'' , 200mm , 300mm , etc.

4.Mesh : 5--500mesh Aperture/Opening :10--10000µm

5.Frame material : SS , brass.

6.Frame height (full) : 1-3/4'' -- 2-5/8'' half : 1-1/4'' -- 1-5/8''

7.Depth to cloth (full) : 1-1/4'' -- 2'' half : 5/8'' -- 1''

Parameters

Classification			Test sieves of metal wire cloth	Test sieves of perforated metal plate	Test sieves of electroformed sheets
Material			Stainless Steel, H80 Brass	Stainless Steel	Stainless Steel
Production Technology			Weaving	Punching	Electrochemical machining
Production Standard			ISO3310-1:1990 R20/3,R20,R40/3 series, ASTM, TYLER, JIS, DIN, BSI	ISO3310-2:1990 R20/3,R20,R40/3 series, ASTM, TYLER, JIS, DIN, BSI	ISO3310-3:1990 R20/3,R20,R40/3 series, ASTM, TYLER, JIS, DIN, BSI
Specification	Sieve Diameter (mm)		Φ75/ Φ100/ Φ127/ Φ200/ Φ203/ Φ300/ Φ400/ Φ600	Φ75/ Φ100/ Φ127/ Φ200/ Φ203/ Φ300/ Φ400/ Φ600	Φ75
	Screen Frame	Thickness	0.6-0.7 mm
		Height	25mm, 50mm or customized according to customer requirements
		Shape	Round, square, rectangle or customized according to customer requirements
	Mesh Size		3mm-0.02mm	150mm-3mm	500μm-5μm

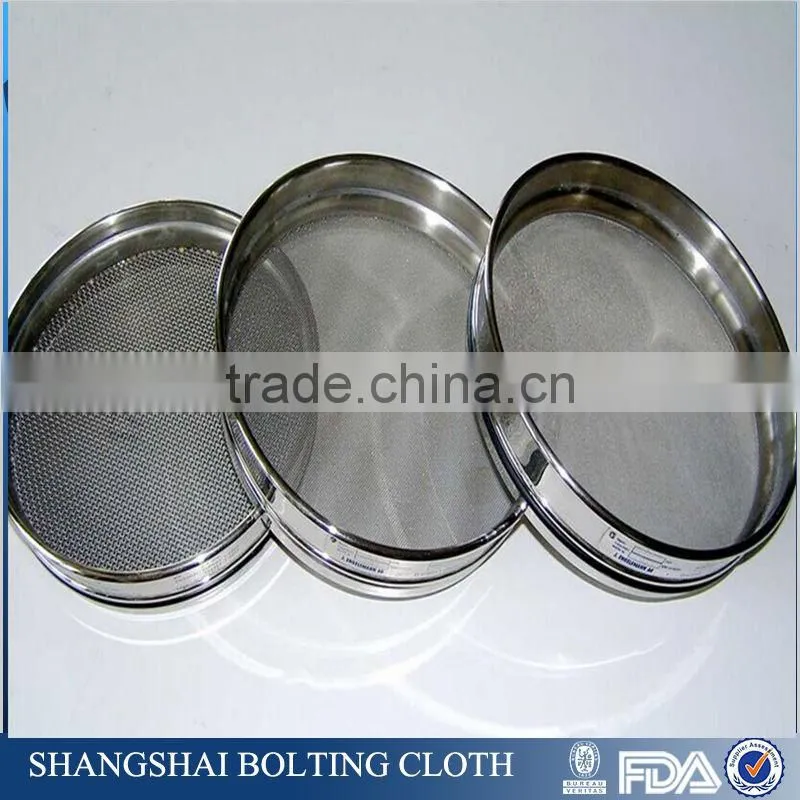

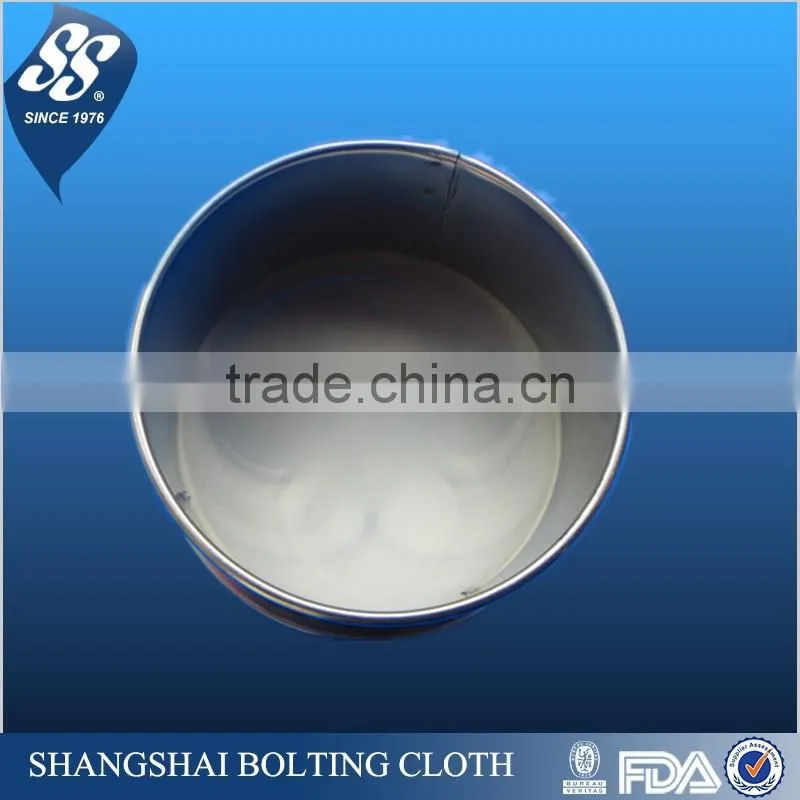

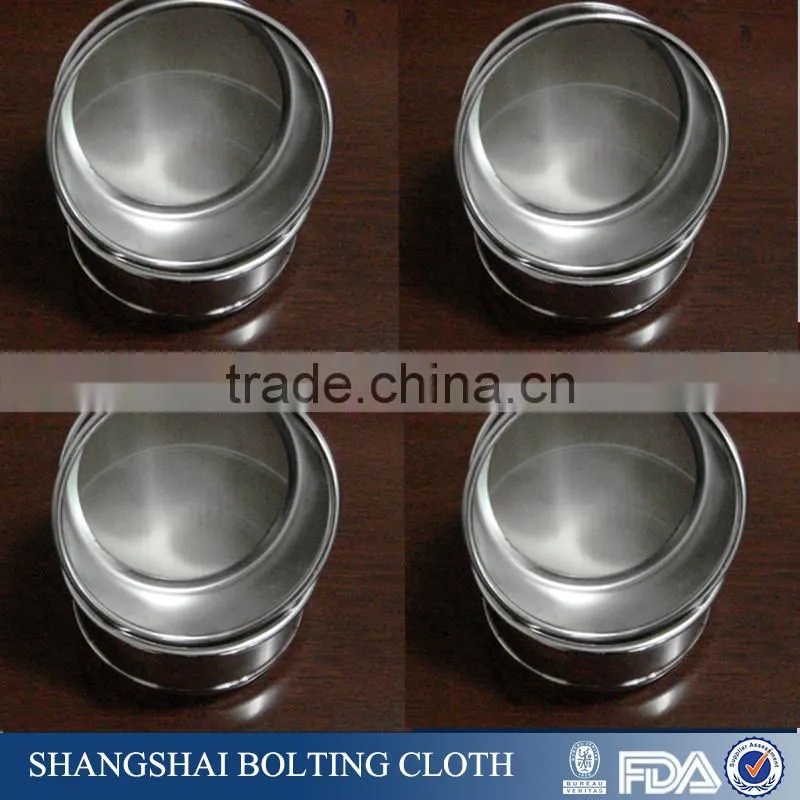

Standard Sieve for Lab Test

Standard Test Sieve Feature:

Good filtering .
Corrosion resistance.
Easy to clean.
Long using life.

Standard Test Sieve Application:

Used for chemical, cosmetics, general industrial, fertilizer, foods ( grain , coffee ), minerals,etc.

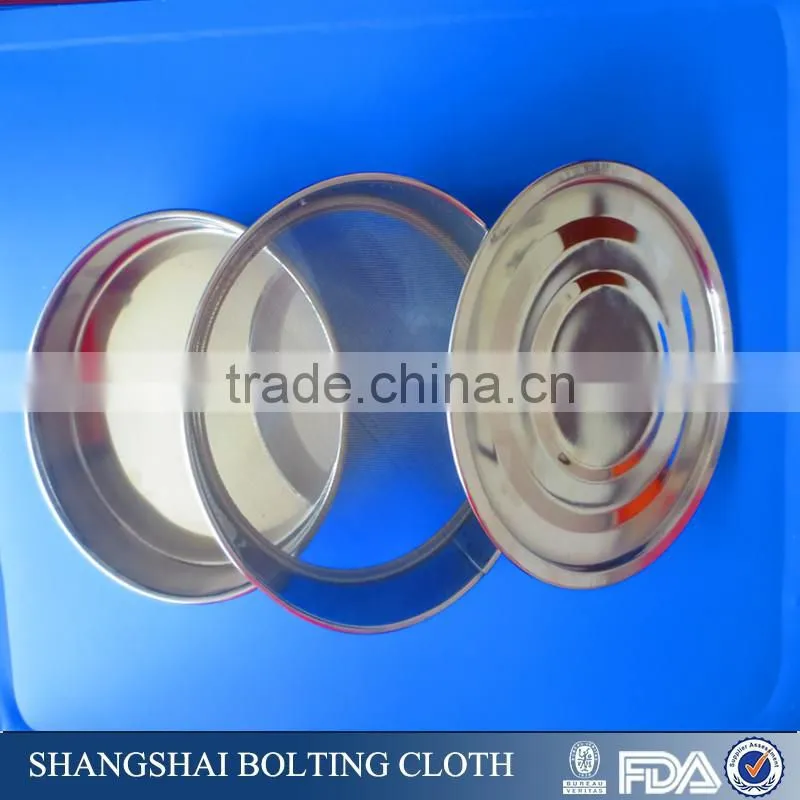

Test Sieve Cover & Bottom

Features

This stainless steel standard lab test sieve‘s features is as follow:

1) Usage: Suitable for exact mesh analysis, test, measure, classification of granular material, widely used in abrasive, building materials, chemical, pharmaceutical, metallurgy industries, etc.

2) Easy to use, attractive and durable, high precision, wear-resistant, heat-resistant

3) Screen frame is definitized by stainless steel stretching, not magnetic. Top and bottom screen frame uses taper fit, complete sealing after installation, avoids electrostatic adsorption.

4) Accurate mesh: Screen cloth conforms to ISO3310:1990, ASTM, TYLER, JIS, DIN, BSI and subjects to tool microscope and projector examination, without deformation for long term usage.

Structure

1) Screen frame: polishing or not, according to customer requirements

2) Screen cloth: three kinds-wire cloth, perforated plate, electroformed sheet

3) Screen cloth and frame are fixed by welding, can withstand temperatures up to 300 degree.

Certifications

Packaging & Shipping

Shipping Ways in ShangShai.

Shanghai Shangshai can offer different kinds of shipping,we can deliver the goods with different method based on your order quantity.

1.Send to Amazon we choose UPS and Fedex Commonly

2.Large quantities to choose shipping by sea is cost effective.Sometimes by air if customer is urgent in need.

3.Customers choose express commonly to send them samples.

4.SF EXPRESS and truck are domestic used.
