Aluminum Screen Frame Polyester Silk Printing Mesh

Aluminum Screen Frame Polyester Silk Printing Mesh thumbnail-1
Aluminum Screen Frame Polyester Silk Printing Mesh thumbnail-2
Aluminum Screen Frame Polyester Silk Printing Mesh thumbnail-3
Aluminum Screen Frame Polyester Silk Printing Mesh thumbnail-4
Aluminum Screen Frame Polyester Silk Printing Mesh thumbnail-5
Aluminum Screen Frame Polyester Silk Printing Mesh thumbnail-6
Aluminum Screen Frame Polyester Silk Printing Mesh photo-1
Aluminum Screen Frame Polyester Silk Printing Mesh photo-2
Aluminum Screen Frame Polyester Silk Printing Mesh photo-3
Aluminum Screen Frame Polyester Silk Printing Mesh photo-4
Aluminum Screen Frame Polyester Silk Printing Mesh photo-5
Aluminum Screen Frame Polyester Silk Printing Mesh photo-6
US$ 0.8 - 9.6 MOQ: 100 Meters
Key Specifications
Get Latest Price
Material:
100% Polyester
Weave Type:
Plain
Elasticity:
Low
Contact Supplier Request Quote Chat Now
Shanghai Shangshai Bolting Cloth Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai or any port in china: Textile screen printing mesh
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Material 100% Polyester
Weave Type Plain
Elasticity Low
Printing Silk Screen Printing
Mesh Count 18mesh-420mesh
Monofilament Style Yes
Place of Origin Hebei, China
Brand Name Shangshai
Model Number PET Silk Screen Printing Mesh

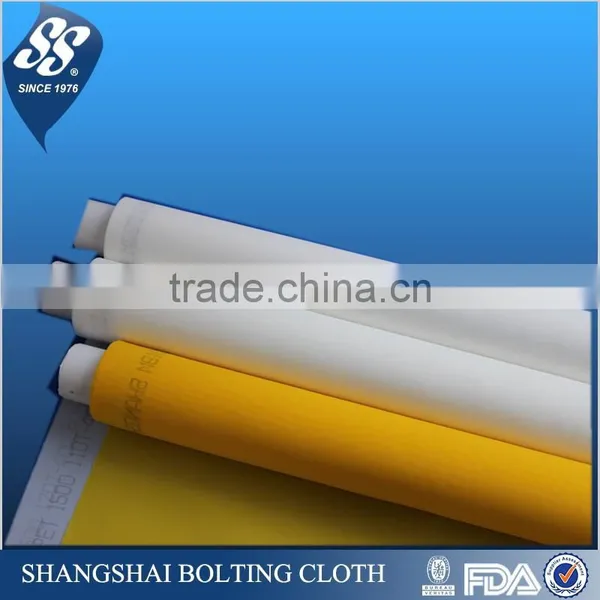

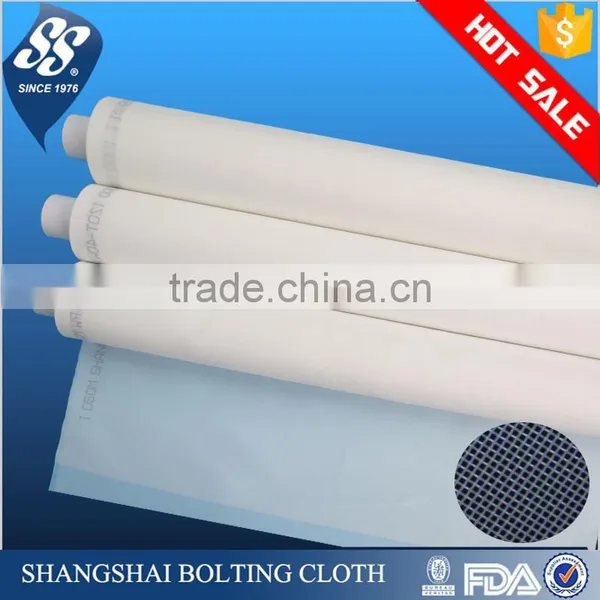

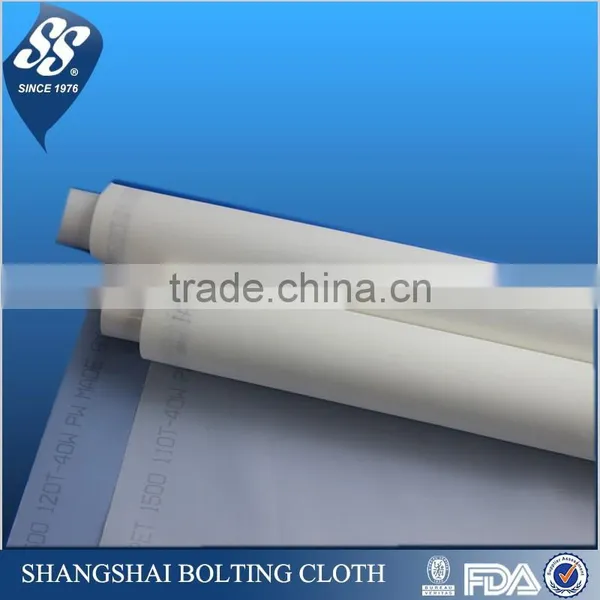

White Aluminum screen frame polyester silk printing mesh120 mesh

Product Description

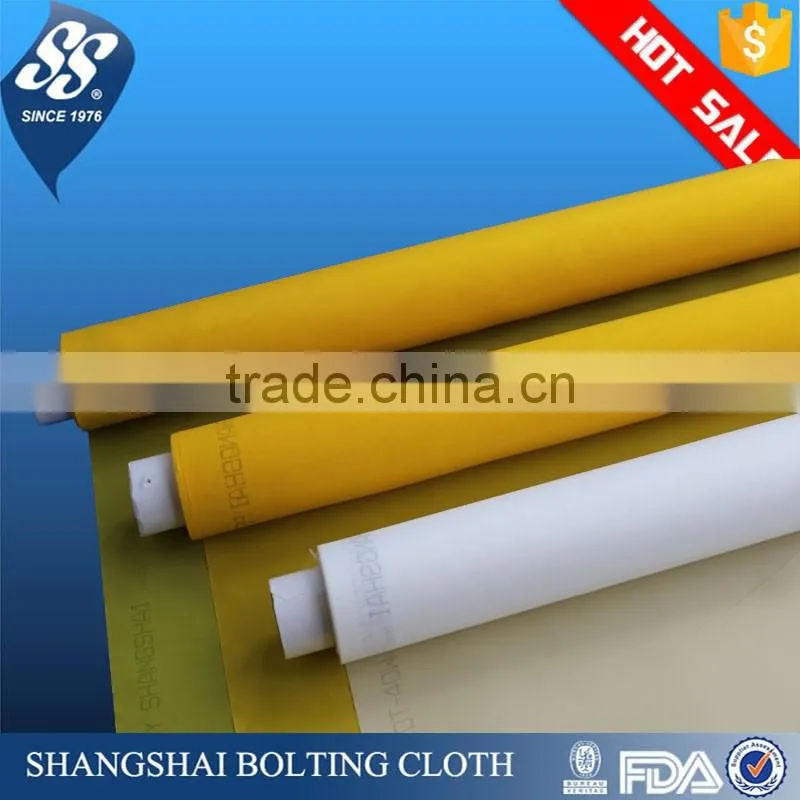

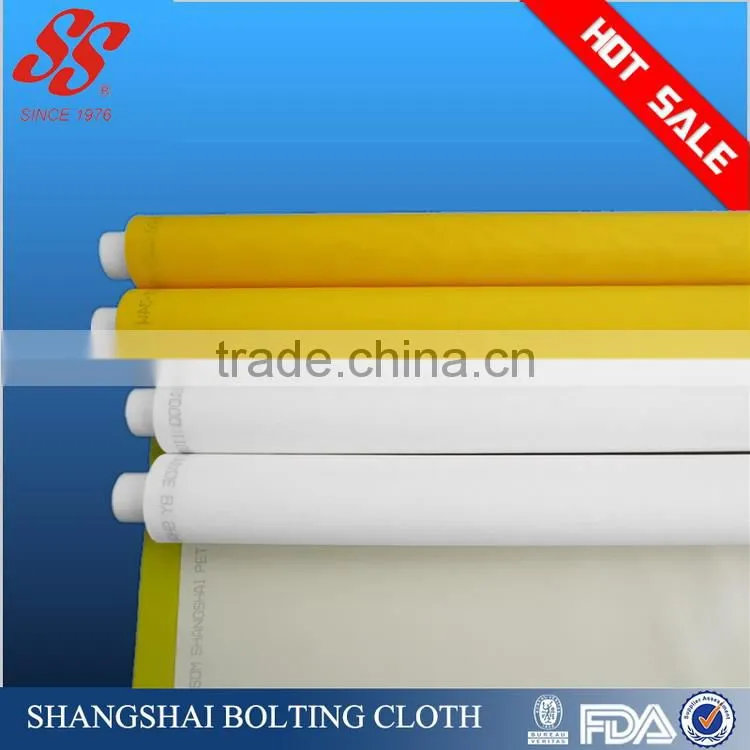

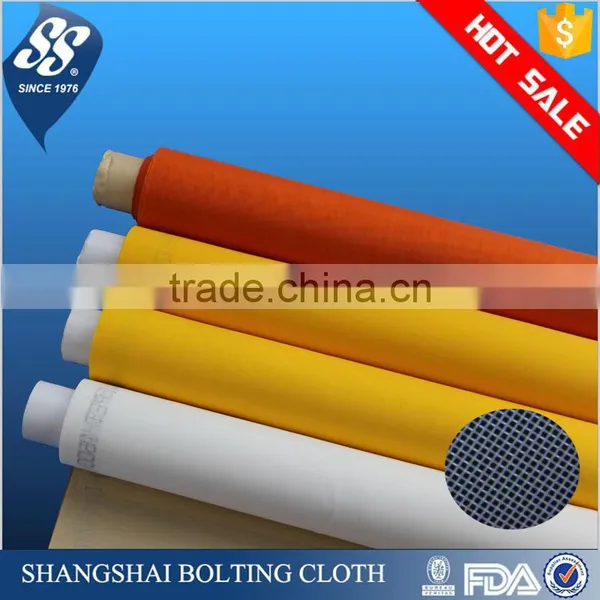

  yellow Aluminum screen frame polyester silk printing mesh

1. shangshai is a factory and manufacturer, factory inspection is accepted

2. mesh count is from 10~420mesh, width and length can be customized, max 370cm

3. color: white, yellow, orange

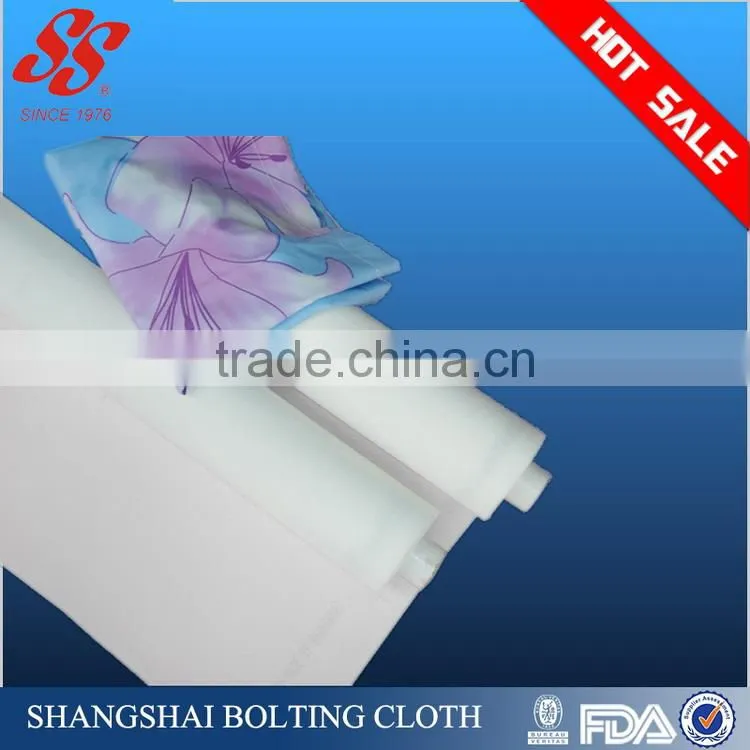

polyester mesh for textile silk screen printing

Aluminum screen frame polyester silk printing meshAluminum screen frame polyester silk printing mesh

Aluminum screen frame polyester silk printing mesh

polyester mesh for PCB silk screen printing

Aluminum screen frame polyester silk printing mesh

polyester mesh for glass, ceramic, t shirt silk screen printing

Aluminum screen frame polyester silk printing mesh

specification table

 Textile screen printing mesh specification table:

1. 8~110 mesh has white color, if need yellow mesh can be customized

2. mesh above 110 has white, yellow color

Details sheet: polyester silk screen printing mesh



Specification            Mesh count Thread Dia.(/um) Mesh opening   (/um) Open area(%) Thickness(/um)
(/cm) (/inch)
PET7/1068 7 18 350 1068 56 693
PET8/941 8 20 300 941 57 594
PET10/743 10 25 250 743 55 495
PET12/686 12 30 140 686 68 277
PET12/578 12 30 250 578 48 495
PET14/489 14 36 200 489 50 340
PET15/443 15 40 200 443 47 340
PET16/461 16 40 140 461 58 238
PET16/404 16 40 200 404 44 340
PET16/356 16 40 250 356 34 425
PET18/385 18 45 150 385 51 255
PET18/357 18 45 180 357 44 306
PET20/399 20 50 80 399 69 136
PET20/380 20 50 100 380 62 170
PET20/333 20 50 150 333 47 255
PET20/304 20 50 180 304 39 306
PET21/319 21 54 140 319 48 238
PET22/356 22 56 80 356 66 136
PET24/320 24 60 80 320 63 136
PET24/301 24 60 100 301 56 170
PET24/282 24 60 120 282 49 204
PET24/263 24 60 140 263 42 238
PET24/253 24 60 150 253 39 255
PET28/263 28 70 80 263 58 136
PET28/244 28 70 100 244 50 170
PET29/214 29 74 120 214 41 204
PET30/203 30 76 120 203 39 204
PET32/236 32 80 64 236 61 109
PET32/221 32 80 80 221 53 136
PET32/202 32 80 100 202 44 170
PET32/183 32 80 120 183 36 204
PET34/184 34 86 100 184 42 170
PET36/188 36 90 80 188 49 136
PET36/178 36 90 90 178 44 153
PET36/169 36 90 100 169 39 170
PET39/191 39 99 55 191 60 94
PET39/183 39 99 64 183 54 109
PET39/176 39 99 71 176 50 121
PET39/168 39 99 80 168 45 136
PET39/149 39 99 100 149 35 170
PET43/160 43 110 64 160 51 109
PET43/145 43 110 80 145 41 136
PET47/150 47 120 55 150 53 94
PET47/141 47 120 64 141 47 109
PET47/135 47 130 71 135 42 121
PET51/134 51 130 55 134 50 94
PET51/119 51 135 71 119 39 121
PET53/127 53 135 55 127 48 94
PET53/118 53 135 64 118 42 109
PET53/112 53 135 71 112 37 121
PET56/117 56 142 55 117 45 94
PET56/109 56 142 64 109 38 109
PET59/109 59 150 55 109 42 94
PET59/100 59 150 64 100 36 109
PET61/103 61 155 55 103 41 94
PET61/95 61 155 64 95 34 109
PET64/96 64 163 55 96 39 94
PET64/88 64 163 64 88 32 109
PET68/87 68 173 55 87 36 94
PET68/79 68 173 64 79 29 109
PET72/89 72 183 45 89 42 77
PET72/86 72 183 48 86 40 82
PET72/80 72 183 55 80 34 94
PET77/71 77 195 55 71 31 94
PET80/76 80 200 45 76 38 77
PET80/73 80 200 48 73 35 82
PET90/68 90 230 40 68 38 68
PET90/63 90 230 45 63 33 77
PET90/60 90 230 48 60 28 82
PET100/51 100 250 40 51 30 85
PET110/48 110 280 34 48 33 58
PET110/43 110 280 40 43 26 68
PET120/44 120 305 31 44 33 53
PET120/42 120 300 34 42 29 58
PET120/37 120 300 40 37 18 68
PET130/31 130 330 40 31 17 68
PET130/36 130 330 34 36 26 58
PET140/34 140 350 31 34 25 53
PET140/32 140 350 34 32 19 58
PET150/34 150 380 27 34 30 46
PET150/31 150 380 30 31 23 51
PET150/28 150 380 34 28 16 58
PET165/29 165 420 27 29 22 46
PET165/25 165 420 31 25 16 53

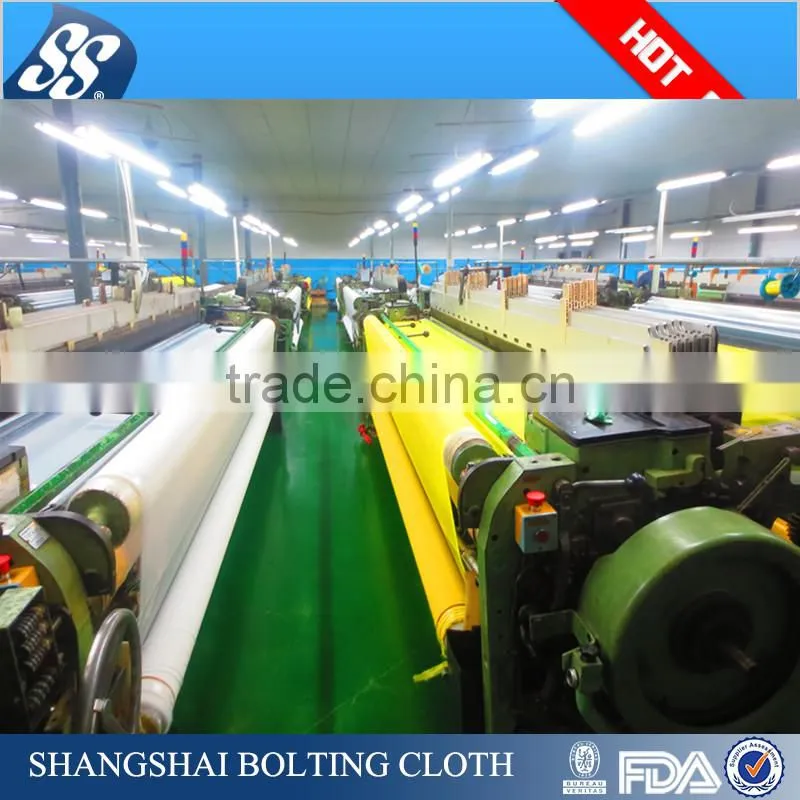

Our factory

 Textile screen printing mesh

Head Office: Room101, Building#5, No.1220, Jiangning Road, Shanghai, 200060, China.
Manufacture Address:
1. No.8, Faxiang Road, Jiangqiao Industrial Park, Jiading Area, Shanghai China.
2. Xutuan Industrial District, Anping County, Hebei, China.

Aluminum screen frame polyester silk printing mesh

Applications

 Textile screen printing mesh applications :

Aluminum screen frame polyester silk printing mesh
