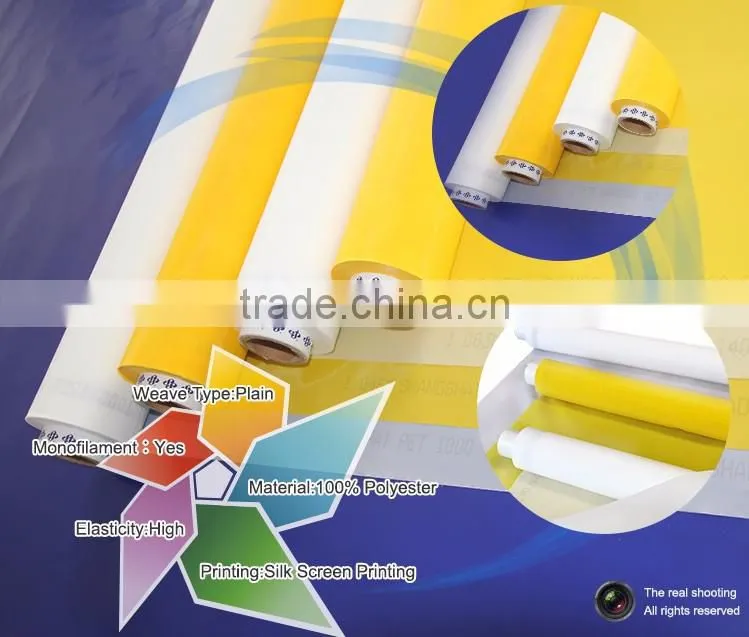

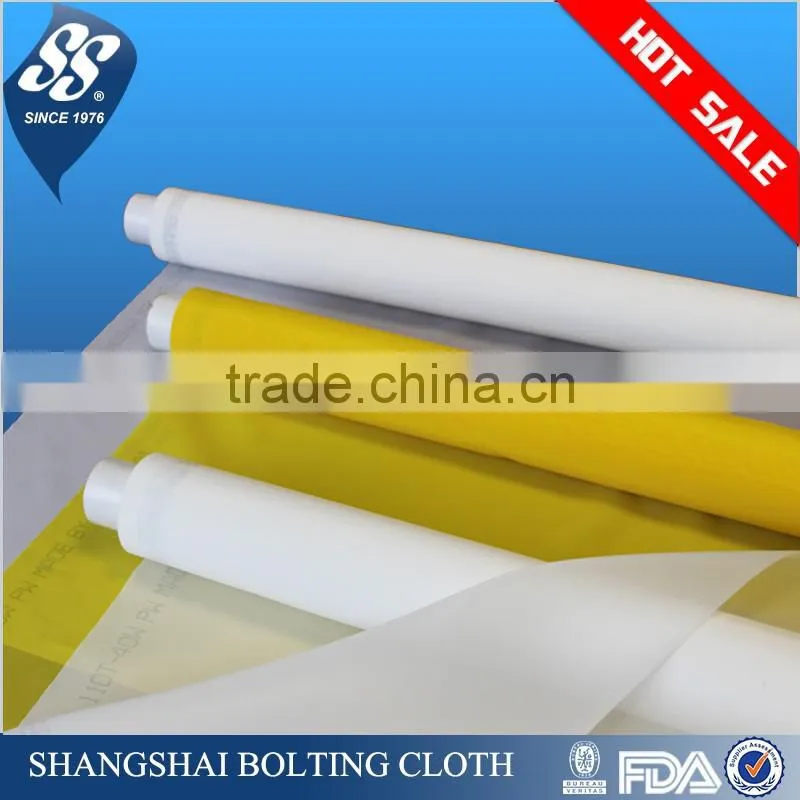

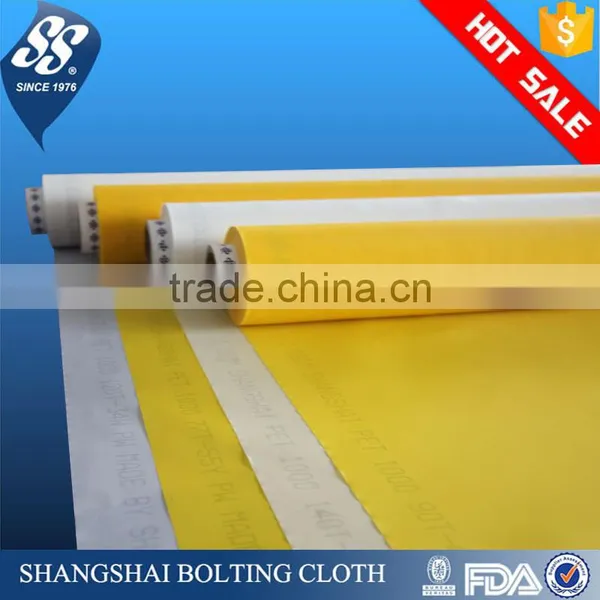

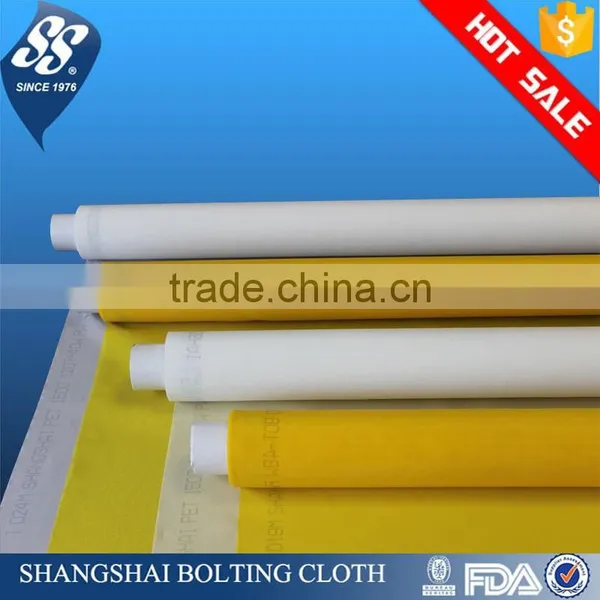

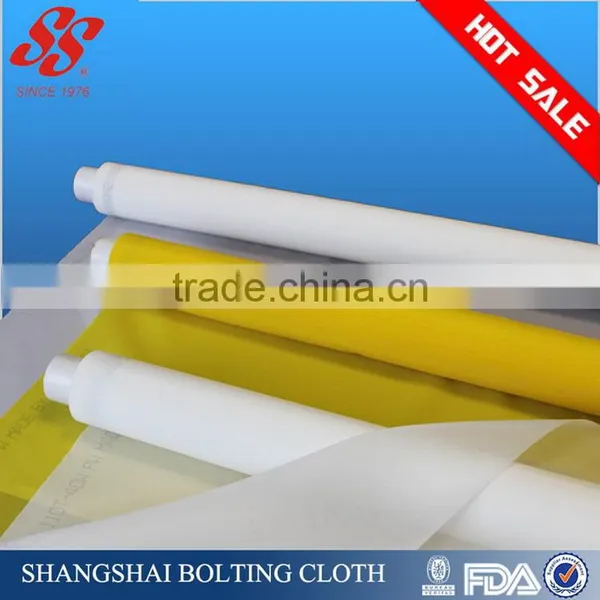

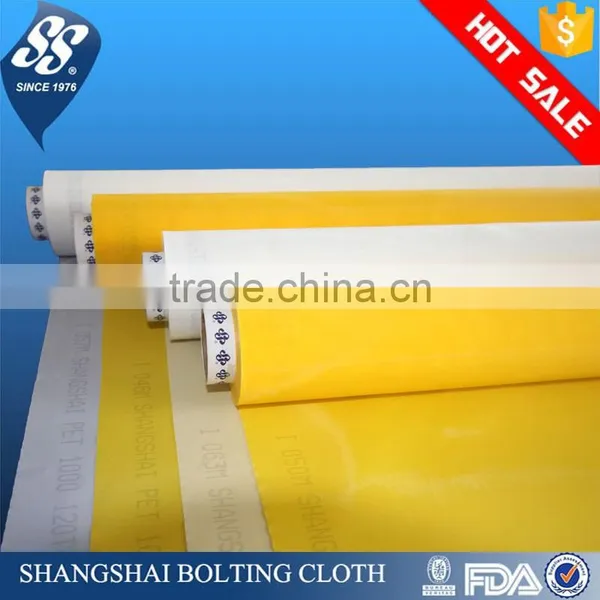

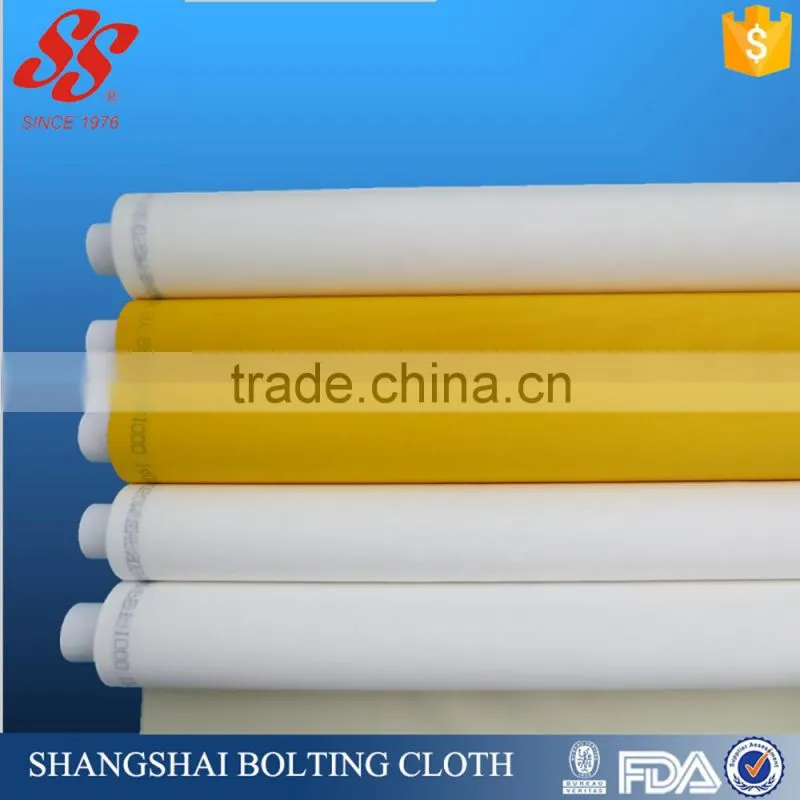

43T Polyester Printing Mesh
Shangshai has both domestic materials and imported materials yar.(Imported from Japan or Switzerland)
Free Samples(1m2) can be sent for your reference firstly!You pay for the freight is OK.
Freight will be deduct after placing the orders.
Specification Details of Screen Printing Mesh:
1.Material: 100% Polyester
2.Mesh count: 18mesh(7T)-420mesh(165T)
3. Width: 0.6m-3.65m
4.Length: 30-70m per roll
5.Thread diameter:31-350um
6.Color: white/yellow/orange
7.Packing: PVC bag inside for each roll, then carton,then waterproof bag outside
Features & advantages of Screen Printing Mesh:
1. Faster turnaround time from the screen room to the pressroom
2. Good diathermancy
3. High air permeability
4. Acid resistance and Alkali resistance
5. Long working life
6. Hard wear
7. Three factories for manufacturing
8. Imported weaving machines from Switzerland and Italy.
Need For Quotation of screen printing mesh:
1.Mesh Count
2.Thread Diameter
3.Width
4.Quantity
| Model | Specification (/cm) | Mesh count (mesh/inch) | Thread Diameter (um) | Mesh opening(um) | Open Area(%) | Thickness(um) |
| SS-PET7/1080 | 7 | 18 | 350 | 1080 | 57 | 640 |
| SS-PET8/950 | 8 | 20 | 300 | 950 | 58 | 550 |
| SS-PET10/700 | 10 | 25 | 250 | 700 | 49 | 620 |
| SS-PET12/583 | 12 | 30 | 250 | 583 | 49 | 450 |
| SS-PET16/425 | 16 | 40 | 200 | 425 | 46 | 400 |
| SS-PET20/320 | 20 | 50 | 180 | 320 | 41 | 350 |
| SS-PET24/297 | 24 | 60 | 120 | 297 | 51 | 240 |
| SS-PET29/213 | 29 | 76 | 120 | 213 | 41 | 240 |
| SS-PET32/213 | 32 | 80 | 100 | 213 | 46 | 200 |
| SS-PET34/194 | 34 | 86 | 100 | 194 | 44 | 221 |
| SS-PET36/178 | 36 | 90 | 100 | 178 | 41 | 216 |
| SS-PET40/170 | 40 | 100 | 80 | 170 | 46 | 150 |
| SS-PET43/153 | 43 | 110 | 80 | 153 | 43 | 130 |
| SS-PET47/142 | 47 | 120 | 71 | 142 | 44 | 135 |
| SS-PET53/125 | 53 | 135 | 64 | 125 | 44 | 120 |
| SS-PET59/105 | 59 | 150 | 64 | 105 | 39 | 120 |
| SS-PET62/100 | 62 | 155 | 64 | 100 | 37 | 115 |
| SS-PET64/92 | 64 | 163 | 64 | 92 | 35 | 120 |
| SS-PET68/83 | 68 | 173 | 64 | 83 | 32 | 130 |
| SS-PET72/84 | 72 | 183 | 55 | 84 | 37 | 100 |
| SS-PET77/75 | 77 | 195 | 55 | 75 | 33 | 105 |
| SS-PET90/66 | 90 | 230 | 48 | 66 | 35 | 85 |
| SS-PET100/61 | 100 | 250 | 40 | 61 | 37 | 70 |
| SS-PET110/52 | 110 | 280 | 40 | 52 | 33 | 85 |
| SS-PET120/42 | 120 | 300 | 40 | 42 | 26 | 68 |
| SS-PET140/37 | 140 | 350 | 34 | 37 | 24 | 58 |
| SS-PET150/34 | 150 | 380 | 31 | 34 | 26 | 46 |
| SS-PET165/420 | 165 | 420 | 31 | 25 | 17 | 46 |
Remark:The following datas are theoretic ,please reference the actual datas if there it differs. | ||||||

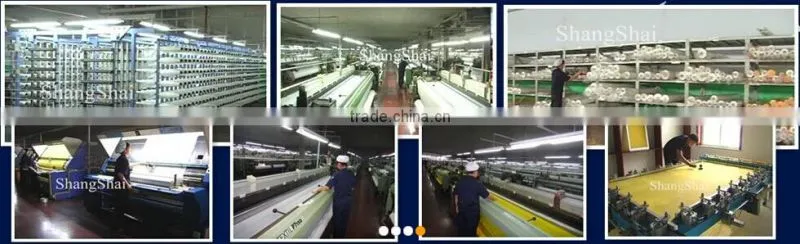

Welcome to our Factory!
Shanghai Shangshai Bolting Cloth Manufacturing Co.,Ltd is a professional manufacturer of all kinds of Screen Printing Mesh, Filter Mesh, Flour Mesh,and stainless steel mesh established in 1997.
Our company has 2 factories, the bigger one is located in ANPING, HEBEI, is a recommended enterprise of the HEBEI Government. The factory in Hebei covers 119 ACRES (79,373 square meters), the other factories are located in Shanghai.
Mainly Products: Polyester Mesh, Terylene Mesh, Nylon Mesh, Polyamide Mesh, Flour Mesh, Stainless Steel Mesh, Iron Wire Mesh, Filter Mesh, etc. screen printing and filtration related products.
Equipments: 300 SWISS SULZER RUTI weaving machines, 5 Benninger high speed warping machines, 2 water washing heat setting machines. The width of weaving machines: 280cm, 330cm, 360cm, 390cm.Exported Countries: America, Germany, Japan, Britain, Italy, Russia, Brazil, Turkey, Argentina, Pakistan, Thailand, Singapore, Korea, Mexico, etc all over the world.

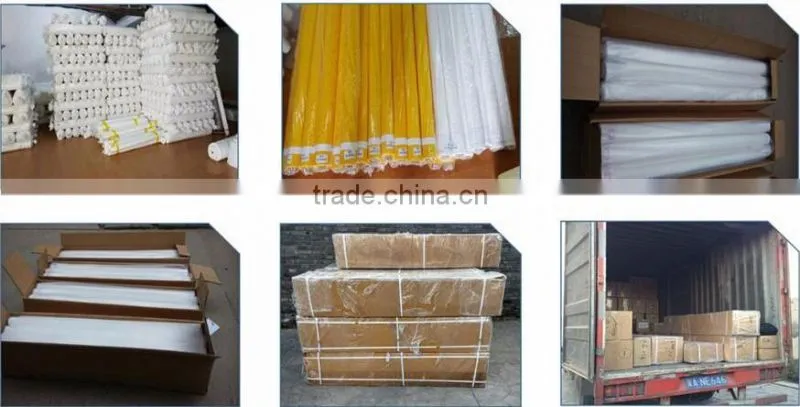

ShangShai have two ways of packing Screen Printing Mesh.
1.Mesh rolls in pp bag,2-10rolls one carton,with waterproof bags outside,at last packing belt to strengthen.
2.Fold the mesh into the pp bag,then put into the cartons,with waterproof bags outside,at last with packing belt.
Shipping Ways in ShangShai.
Shanghai Shangshai can offer different kinds of shipping,we can deliver the goods with different method based on your order quantity.
1.Send to Amazon we choose UPS and Fedex Commonly
2.Large quantities to choose shipping by sea is cost effective.Sometimes by air if customer is urgent in need.
3.Customers choose express commonly to send them samples.
4.SF EXPRESS and truck are domestic used.
(SF usual send to Korea,HongKong,USA)
If you require further information about our Screen Printing Mesh, please use the contact from below:
