Specifications

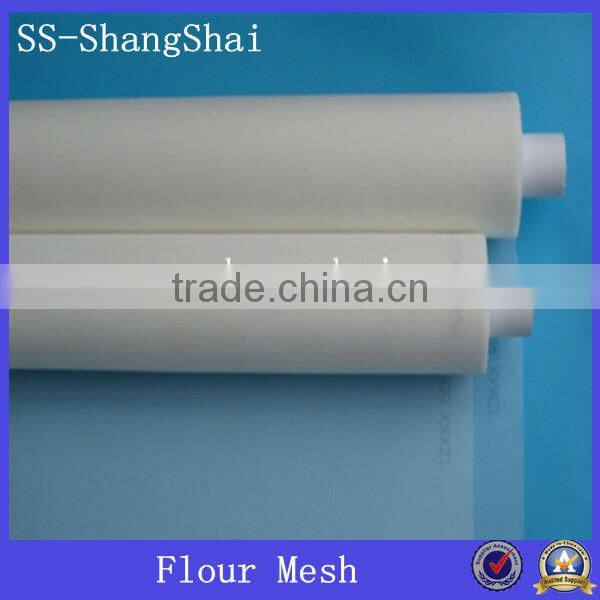

XXXSeries Flour Milling Mesh1.ISO&SGS
2.100%Polyester/100%Nylon
3.30-70m/roll
4.White Color
Flour Mesh Filtering Supplier/Manufacturer
Widely used in food filtration and industry filter.
GG series flour mesh,xx series flour mesh and xxxseries flour mesh.(GG Series flour milling mesh/xx series flour milling mesh,xxx series flour milling mesh)
Features & Applications :
Filtration rates can be from 27% to 78%. Width: 115cm-158cm and length is from 30M/roll to 75meters /roll. Specifications are very exact ,long service life.The fabric has been brushed, so it is more flexible and thicker,the dedusting efficiency can reach 99.99%
General Introduction:
Our XX, XXX and GG Series Flour Mesh are with high extraction, and quality can meet to FDA standard, can be used forUltra fine flour milling. Including nylon and polyester materials, standard width127cm/145cm/165cm, also can be made as Your request.
XX Series: For soft wheat and rye
XXX Series: For medium to hard wheat and high capacity sifters
GG Series: Mainly used for gritting gauze for coarse and scalping sieves.
STABLE QUALITY,IN TIME DELIVERY,FAVOURABLE PRICE IS OUR INVARIABLE TENET.
Specifications & Details :
| Flour Mesh Specifications XX Series | ||||||
| Specification | Mesh Opening(um) | Thread Diameter(um) | Tram Silk (um) | Warp/weft (cm) | Open Area(%) | |
| 3xx | 300 | 100+2*60 | 100 | 24.0/25.0 | 54 | |
| 4xx | 280 | 100+2*60 | 100 | 25.5/26.5 | 53 | |
| 5xx | 250 | 100+2*60 | 90 | 27.5/29 | 51 | |
| 6xx | 214 | 90+2*60 | 90 | 32/34 | 49 | |
| 7xx | 199 | 80+2*60 | 80 | 33/36 | 48 | |
| 8xx | 181 | 80+2*60 | 70 | 36/40 | 46 | |
| 8.5xx | 160 | 70+2*60 | 70 | 40/43.5 | 44 | |
| 9xx | 146 | 70+2*60 | 64 | 43/48 | 44 | |
| 9.5xx | 140 | 60+2*60 | 60 | 43.0/50.0 | 43 | |
| 10xx | 130 | 60+2*50 | 64 | 49/52 | 44 | |
| 10.5xx | 125 | 60+2*50 | 60 | 48.5/54.0 | 40 | |
| 11xx | 120 | 60+2*50 | 48 | 53/60 | 42 | |
| 12xx | 112 | 60+2*50 | 48 | 55/63 | 40 | |
| 12.5xx | 106 | 60+2*43 | 48 | 56.0/64.0 | 40 | |
| 13xx | 100 | 60+2*50 | 48 | 58/68 | 58 | |
| 14.5xx | 90 | 50+2*43 | 50 | 62.5/71.5 | 37 | |
| 15xx | 88 | 50+2*43 | 48 | 65/74 | 34 | |
| 17xx | 80 | 50+2*43 | 43 | 68.0/81.0 | 35 | |
| 20xx | 75 | 50+2*43 | 43 | 70.0/84.7 | 34 | |
| 21xx | 71 | 50+2*43 | 43 | 74.0/87.7 | 33 | |
| 25xx | 63 | 43+2*43 | 43 | 78.0/94.0 | 30 | |
| Remark:The above data is theoretical and for your reference only. | ||||||
| Flour Mesh Specifications XXX Series | ||||||
| Specification | Mesh Opening(um) | Thread Diameter (um) | Thickness (cm) |
Mesh Count | Open Area(%) | |
| 3xxx | 301 | 140 | 22.7 | 57.6 | 47 | |
| 4xxx | 280 | 140 | 23.8 | 60.5 | 44 | |
| 5xxx | 257 | 120 | 26.5 | 67.3 | 47 | |
| 6xxx | 213 | 120 | 30 | 76.2 | 41 | |
| 7xxx | 203 | 120 | 31 | 78.7 | 39 | |
| 8xxx | 182 | 100 | 35.5 | 90.2 | 42 | |
| 8.5xxx | 163 | 100 | 38 | 96.5 | 38 | |
| 9xxx | 154 | 90 | 41 | 104.1 | 40 | |
| 9.5xxx | 143 | 90 | 43 | 109.2 | 38 | |
| 10xxx | 133 | 80 | 47 | 119.4 | 39 | |
| 10.5xxx | 124 | 80 | 49 | 124.5 | 37 | |
| 11xxx | 120 | 80 | 50 | 127.0 | 36 | |
| 12xxx | 112 | 70 | 55 | 139.7 | 38 | |
| 12.5xxx | 105 | 70 | 57 | 144.8 | 36 | |
| 13xxx | 99 | 70 | 59 | 149.9 | 34 | |
| 14xxx | 97 | 70 | 60 | 152.4 | 34 | |
| 15xxx | 92 | 60 | 66 | 167.6 | 36 | |
| 15.5xxx | 89 | 60 | 67 | 170.2 | 36 | |
| 16xxx | 95 | 50 | 69 | 175.3 | 43 | |
| 17xxx | 91 | 50 | 71 | 180.3 | 42 | |
| Remark:The above data is theoretical and for your reference only. | ||||||
| Flour Mesh Specifications GG | |||||||
| Specification | Mesh Opening |
Thread Diameter (um) |
Base (cm) |
Mesh count (/inch) |
Open Area(%) |
Square Meter /g |
|
| 10GG | 2000 | 550 | 3.9 | 9.9 | 61.5 | 237.3 | |
| 12GG | 1800 | 450 | 4.4 | 11.2 | 64 | 180 | |
| 14GG | 1600 | 400 | 5 | 12.7 | 64 | 177.8 | |
| 15GG | 1400 | 400 | 5.6 | 14.2 | 60.5 | 197.5 | |
| 16GG | 1300 | 350 | 6.1 | 15.5 | 62.1 | 165 | |
| 18GG | 1188 | 350 | 6.5 | 16.5 | 59.7 | 177 | |
| 19GG | 1080 | 350 | 7 | 17.8 | 57 | 190.4 | |
| 20GG | 1000 | 300 | 7.7 | 19.6 | 59.2 | 153.8 | |
| 22GG | 950 | 300 | 8 | 20.3 | 57.8 | 160 | |
| 24GG | 850 | 300 | 8.7 | 22.1 | 54.6 | 173.9 | |
| 26GG | 800 | 300 | 9.1 | 23.1 | 52.9 | 181.8 | |
| 27GG | 750 | 250 | 10 | 25.4 | 56.3 | 138.9 | |
| 28GG | 710 | 250 | 10.4 | 26.4 | 54.7 | 144.7 | |
| 30GG | 670 | 250 | 10.9 | 27.7 | 53 | 151 | |
| 31GG | 610 | 250 | 11.6 | 29.5 | 50.3 | 161.5 | |
| 32GG | 600 | 250 | 11.8 | 30.0 | 49.8 | 163.4 | |
| 34GG | 560 | 220 | 12.8 | 32.5 | 51.5 | 137.9 | |
| 36GG | 530 | 220 | 13.3 | 33.8 | 49.9 | 143.4 | |
| 38GG | 500 | 220 | 13.9 | 35.3 | 48.2 | 149.4 | |
| 40GG | 475 | 200 | 14.8 | 37.6 | 49.5 | 131.7 | |
| 42GG | 450 | 200 | 15.4 | 39.1 | 47.9 | 136.8 | |
| 44GG | 425 | 200 | 16 | 40.6 | 46.2 | 142.2 | |
| 45GG | 400 | 180 | 17.2 | 43.7 | 47.6 | 124.1 | |
| 47GG | 375 | 180 | 18 | 45.7 | 45.7 | 129.7 | |
| 50GG | 355 | 150 | 19.8 | 50.3 | 49.4 | 99 | |
| 52GG | 335 | 150 | 20.6 | 52.3 | 47.7 | 103.1 | |
| 54GG | 315 | 150 | 21.5 | 54.6 | 45.9 | 107.5 | |
| 56GG | 308 | 150 | 21.8 | 55.4 | 45.2 | 109.2 | |
| 58GG | 300 | 150 | 22.2 | 56.4 | 44.4 | 111.1 | |
| 60GG | 280 | 150 | 23.3 | 59.2 | 42.4 | 116.3 | |
| 62GG | 275 | 150 | 23.5 | 59.7 | 41.9 | 117.6 | |
| 64GG | 265 | 150 | 24.1 | 61.2 | 40.8 | 120.5 | |
| 66GG | 250 | 120 | 27 | 68.6 | 45.7 | 86.5 | |
| 68GG | 243 | 120 | 27.5 | 69.9 | 44.8 | 88.2 | |
| 70GG | 236 | 120 | 28.1 | 71.4 | 43.9 | 89.9 | |
| 72GG | 224 | 120 | 29.1 | 73.9 | 42.4 | 93 | |
| 74GG | 212 | 120 | 30.1 | 76.5 | 40.8 | 96.4 | |
| Remark:The above data is theoretical and for your reference only. | |||||||
Production Process:
For more specifications kindly please contact us!
Welcome to our Factory!
Shanghai Shangshai Bolting Cloth Manufacturing Co.,Ltd is a professional manufacturer of all kinds of Screen Printing Mesh, Filter Mesh and Flour Mesh, established in 1997.
Our company has 2 factories, the bigger one is located in ANPING, HEBEI, is a recommended enterprise of the HEBEI Government. The factory in Hebei covers 119 ACRES (79,373 square meters), the other factories are located in Shanghai.
Mainly Products: Polyester Mesh, Terylene Mesh, Nylon Mesh, Polyamide Mesh, Flour Mesh, Stainless Steel Mesh, Iron Wire Mesh, Filter Mesh, etc. screen printing and filtration related products.
Equipments: 300 SWISS SULZER RUTI weaving machines, 5 Benninger high speed warping machines, 2 water washing heat setting machines. The width of weaving machines: 280cm, 330cm, 360cm, 390cm.Exported Countries: America, Germany, Japan, Britain, Italy, Russia, Brazil, Turkey, Argentina, Pakistan, Thailand, Singapore, Korea, Mexico, etc all over the world.
