Specifications
indoor motion sensor light1.white/black
2.light control:15-330lux
3.detection angle:360/180 degree
4.ce/gs ip44

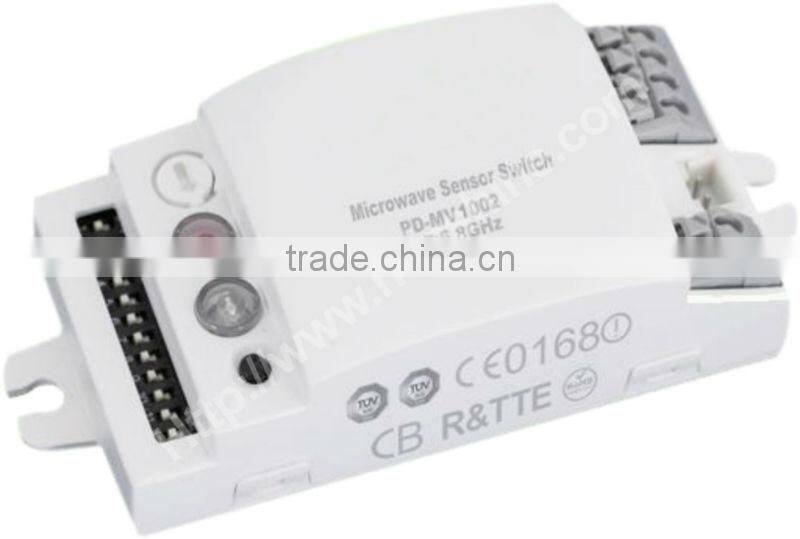

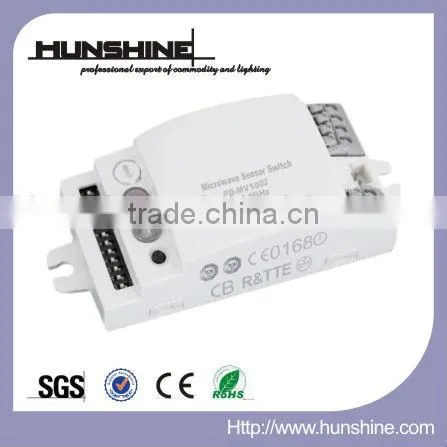

330lux light control indoor motion sensor light
1.detail description
1.standby power: 0.5w (approximate)
2.voltage: 220 to 240v/ac
3.frequency: 50hz
4.installation: ceiling/wall mounting
5.hf system: 5.8ghz cw radar ism band
6.transmission power: <0.2mw
7.detection angle: 360° (ceiling installation)180° (wall installation)
8.maximum rated load:
200w (220v/ac fluorescent cosΘ=0.5)
9.detection range:1m/2m/3m4m//5m/7m/9m/12m(radii.)
10.time setting: delay times :10sec/20sec/30sec/50sec/90sec/150sec/210sec/300sec(customization available)
half light state(standby time)0.5min/1min/3min/5min/20min/40min/60min(customization available)
11. Light control: 15-330lux
ction:
- detection field: the wide detection range is made up of up and down, left and right (see the following diagram), the detection range could be adjusted according to your desire, but the moving orientation in detection field has great relation with the sensitivity.
- identify day and night automatically: the ambient light of st09 could be adjusted according to your desire: when turn to sun (max), it will work day and night, when turn it to moon (min), it will only work in the ambient light less than 3lux. as for adjustment, please refer to testing way.
- time-delay is added continually: when it receives the second induction signals after the first induction, it will compute time once more on the rest of the first time-delay basis (set time).
- time-delay is adjustable: it can be set according to your desire.
3.packing details
we usually use color box.if you have special packing requirements,pls inform us in advance.
| packing | color box |
| inner box(pcs) | 1 |
| outer box(pcs) | 50 |
| gross weight(kg) | 14.0 |
| meas't(cbm) | 0.061 |
ningbo hunshine international trading co.,ltd.
we have many years experience to export lighting products to more than 50 countries . if you want more detailed information of this product or related products,please contact us, we will reply as soon as possible (general in 24 hours).
