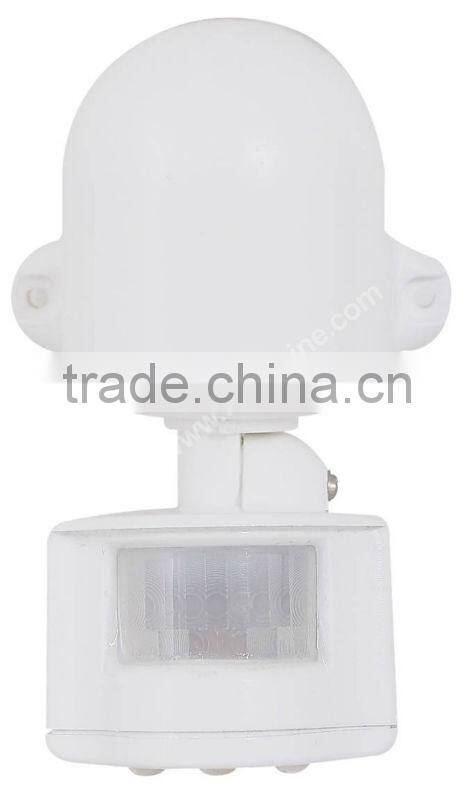

Help CenterOutdoor Human Body Sensor With Ip44
Related Products
-
Outdoor Pir Sensor Module With Ip44US$ 3 - 5MOQ: 1000 Pieces -
Outdoor Pir Light Sensor Price CheapUS$ 3 - 5MOQ: 1000 Pieces
-
360 Degree Long Range Motion SensorUS$ 3.5 - 5MOQ: 2000 Pieces
-
Pir Mp.alert for Elder Person and KeysUS$ 3 - 6MOQ: 1000 Pieces
-
Promotion Gift Keychain Anti Lost AlarmUS$ 3 - 6MOQ: 1000 Pieces
Specifications
human body sensor1.white/black
2.ambient light:5lux~daylight (adjustable)
3.detection angle:120 degree
4.ce/gs ip44
outdoor pir sensor module with ip44
1.detail product description
1.power source:220-240v/ac
2.power frequency:50-60hz
3.ambient light:<30lux(adjustable)
4.rated load: 1200w max.tungsten lamp
120w max.fluorescent lamp
5.detection distance:12m(max<22°c)
6.detection angle: 120°
7.time setting: 5sec~10±2min
8.green led activity indicator
temperature:-10~+40°c
10.power consumption:0.5w(static0.1w)
11.installation height:1.5-3m
12.detection motion speed:0.6-1.5m/s
ing humidity: ≤93%rh
14.certification:ce/gs
15.waterproof:ip44
ction:
- detection field: the wide detection range is made up of up and down, left and right (see the following diagram), the detection range could be adjusted according to your desire, but the moving orientation in detection field has great relation with the sensitivity.
- identify day and night automatically: the ambient light of st09 could be adjusted according to your desire: when turn to sun (max), it will work day and night, when turn it to moon (min), it will only work in the ambient light less than 3lux. as for adjustment, please refer to testing way.
- time-delay is added continually: when it receives the second induction signals after the first induction, it will compute time once more on the rest of the first time-delay basis (set time).
- time-delay is adjustable: it can be set according to your desire, the minimum is 10sec±3sec,the maximum is 7min±2min.
|
color
|
white/black |
|
operating voltage(v)
|
120/230 |
|
distance(m)
|
12 |
|
range
|
120° |
|
size
|
85*90 |
3.packing details
we usually use color box.if you have special packing requirements,pls inform us in advance.
| packing | color box |
| inner box(pcs) | 1 |
| outer box(pcs) | 50 |
| gross weight(kg) | 14.0 |
| meas't(cbm) | 0.061 |
ningbo hunshine international trading co.,ltd.
we have many years experience to export lighting products to more than 50 countries . if you want more detailed information of this product or related products,please contact us, we will reply as soon as possible (general in 24 hours).
