Marine Sea Water Strainer JIS F7121

Marine Sea Water Strainer JIS F7121 thumbnail-1
Marine Sea Water Strainer JIS F7121 photo-1
US$ 25 - 200 MOQ: 1 Piece
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Other, strainer
Pressure:
Other, Low Pressure, 5K/10K
Contact Supplier Request Quote Chat Now
Chongqing Jinbo Marine Equipment Import & Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
any port in China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Standard or Nonstandard Standard
Structure Other, strainer
Pressure Other, Low Pressure, 5K/10K
Power Manual
Material Other, Casting, Cast Iron
Temperature of Media Normal Temperature
Media Water
Port Size 40-400
Place of Origin Chongqing, China
Model Number JIS F7121S
Brand Name JINBO or OEM
Application Other, marine pipe system

Marine Sea Water Strainer JIS 7121

Product Description

 Marine Sea Water Strainer JIS F7121 also can be called as marine can water filter(strainer) or marine basket sea water filer(strainer).

Design Standard: JIS F7121-1996

Test Standard: JIS 7200-1996

Hydraulic Test Pressure: Body- 0.3Mpa

Flange size as per JIS B2220 - 5K/10K

Type: S, LA, LB



Main Material:

Body: Cast Iron (FC200)

Bonnet: Cast Iron (FC200)

Strainer: Stainless Steel (SUS304)

Gasket: non-asbestos

Yoke: FCD450

Air Vent Plug: Brass

Drain Plug: Brass





Main Size List(mm):

DN d L L1 D C h t H
25 25 170 85 95 75 12 14 191
32 32 190 95 115 90 15 16 218
40 40 190 95 120 95 15 16 218
50 50 200 100 130 105 15 16 239
65 65 250 125 155 130 15 18 306
80 80 270 135 180 145 19 18 341
100 100 320 160 200 165 19 20 401
125 125 400 200 235 200 19 20 485
150 150 460 230 265 230 19 22 575
200 200 550 275 320 280 23 24 665
250 250 680 340 385 345 23 26 825
300 300 760 380 430 390 23 28 920
350 350 820 410 480 435 25 30 1030
400 400 880 440 540 495 25 30 1135

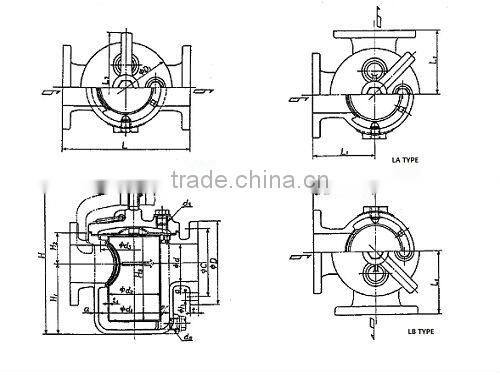

Drawing for DN40-DN100

Marine Sea Water Strainer JIS F7121

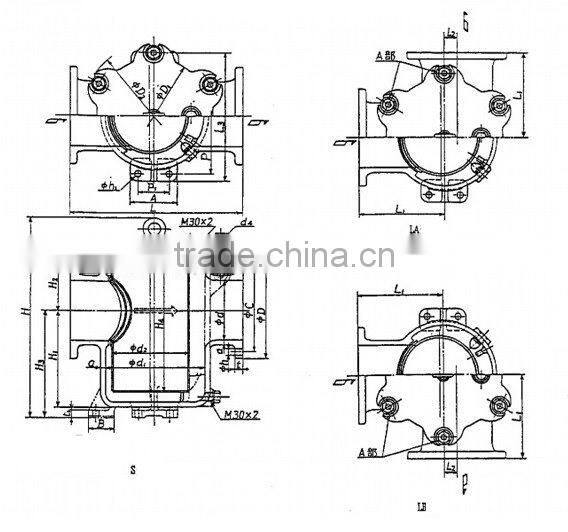

Drawing for DN125-DN400

Marine Sea Water Strainer JIS F7121



Packaging & Shipping

Package: plywood case

Shipping: by sea, by air or by courier





Our Services



One-Stop Service: We supply all kinds of marine and offshore products, from securing the order to final delivery, we work hard to make sure everything goes as required and with high standard quality.



High quality: We are here to provide you with safe and reliable goods. Quality is always our main priority, our quality control program make sure that no defect or poor workmanship will be supplied. According to customer's requirement, our quality can meet the rules and standards of International Class Society such as LR, ABS, DNV, GL, BV, NK, KR, RINA, IRS and CCS.



Professional: With more than 7 years of experience in marine and offshore field, our marketing and technical team can assure you that we can understand your requirement well and deal with your inquiry professionally.



Fast Delivery: We cooperate with the reliable logistic partner, including land, air and sea to help us deliver the goods to your hand on time.





Reliable Partner: With 95% clients' satisfactory, we are confident to be your reliable partner.



Company Information

We are an ISO 9001-2008 Company Certified by DNVGL,  supply all kinds of marine and offshore products for various vessels including VLCC, FSO, FPSO, LNGC, LPGC, Container Ships, Cargo Liners, Bulk Carriers, Oil Tankers and oil platform, from securing the order to final delivery, we work hard to make sure everything goes as required and with high standard quality.
