Marine Cast Steel Quick Closing Valve JIS F7399 10K
US$ 30 - 500
MOQ: 1 Piece
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Shutoff
Pressure:
Other, Low Pressure, 10K
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port in China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Marine Cast Steel Emergency Shut-Off Valve JIS F7399 10KUS$ 30 - 500MOQ: 1 Piece -
Marine Valve (JIS GB CB ANSI DIN CBM Standard)US$ 10 - 10,000MOQ: 1 Piece
-
Marine Sea Water Strainer JIS F7121US$ 25 - 200MOQ: 1 Piece
-
Marine Basket Sea Water Strainer JIS F7121 S TypeUS$ 50 - 1,000MOQ: 1 Piece
-
Marine Basket Sea Water Angle Strainer JIS F7121US$ 25 - 200MOQ: 1 Piece
Standard or Nonstandard
Standard
Structure
Shutoff
Pressure
Other, Low Pressure, 10K
Power
Manual
Material
Other, Casting, Cast Steel
Temperature of Media
Normal Temperature
Media
Oil
Port Size
40-150
Place of Origin
Shandong, China
Model Number
JIS F7399
Brand Name
JINBO
Marine Cast Steel Quick Closing Valve JIS F7399 10K:
Operation type: Manual (Lever) or Pneumatically operated
Design Standard: JIS F7399-1996
Test Standard: JIS 7400-1996
Hydraulic Test Pressure:Body- 0.7Mpa, Seat-0.2Mpa,Seal for quick closing-0.1Mpa
Flange size as per JIS B2220 - 10K
Main Material:
Body: Cast Steel (SC49)
Bonnet: Cast Steel (SC49)
Seat: Stainless Steel (SCS2)
Disc: Stainless Steel (SCS2)
Stem: Stainless Steel (SUS403)
Operation Spindle: SUS403
Operation Lever: SUS403
Handwheel: FC200 (Cast iron)

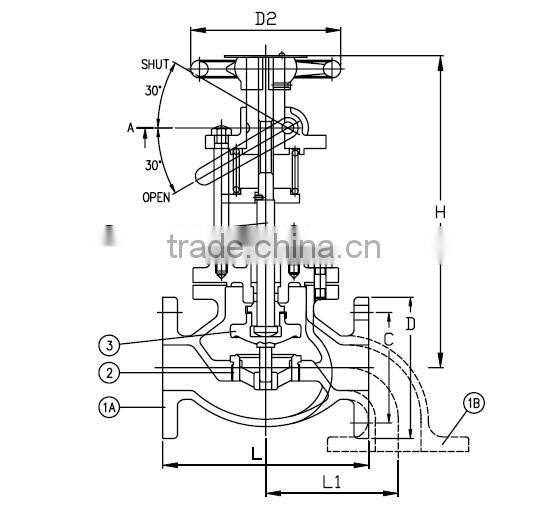

Main Size List(mm):
| DN | L | L1 | L2 | D | C | No of bolt hole | bolt hole diameter | flange thickness | H | D2 |
| 40 | 170 | 85 | 80 | 140 | 105 | 4 | 19 | 16 | 310 | 140 |
| 50 | 220 | 125 | 90 | 155 | 120 | 4 | 19 | 16 | 335 | 160 |
| 65 | 270 | 155 | 100 | 175 | 140 | 4 | 18 | 18 | 395 | 180 |
| 80 | 300 | 165 | 120 | 185 | 150 | 8 | 19 | 18 | 420 | 180 |
| 100 | 350 | 200 | 130 | 210 | 175 | 8 | 20 | 18 | 510 | 224 |
| 125 | 420 | 250 | 160 | 250 | 210 | 8 | 19 | 20 | 440 | 250 |
| 150 | 490 | 300 | 180 | 280 | 240 | 8 | 19 | 22 | 520 | 320 |
