Round Steel Pressure Proof Watertight Hatch Cover
US$ 200 - 2,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Jinbo
Model Number:
CB/T3842-2000
Payment & Shipping
Payment Methods:
Port of Shipment:
any port in China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Round Steel Quick Acting Watertight Hatch CoverUS$ 200 - 2,000MOQ: 1 Piece -
Round Steel Watertight Hatch CoverUS$ 200 - 2,000MOQ: 1 Piece
-
Marine Steel Weathertight Hatch Cover With Counter WeightUS$ 200 - 2,000MOQ: 1 Piece
-
Hatch Cover for Suez Canal LightUS$ 200 - 2,000MOQ: 1 Piece
-
Marine Steel Double Side Opened/Closed Weathertight Hatch CoverUS$ 200 - 2,000MOQ: 1 Piece
Place of Origin
Jiangsu, China
Brand Name
Jinbo
Model Number
CB/T3842-2000
Part
Hinge

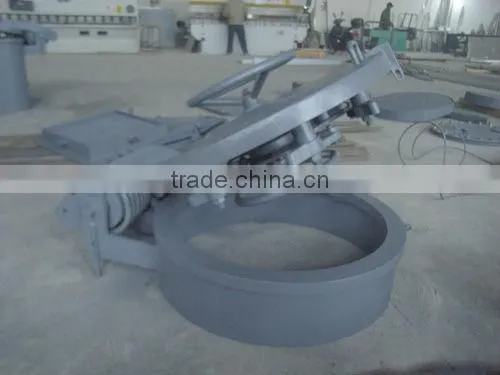

Round Steel Pressure Proof Watertight Hatch Cover:
Standard:CB/T3842-2000
The hatch cover is with the spring-balance device and the central clip device, so it is watertight, and can be opened or closed quickly and easily.There are two types, A type is round, B type is square. It is used as the quick entry or exit which has the watertight demand on various ships
The use pressure is 0.2Mpa.
Watertight test requirement: The cover must be closed, and maintain 15 minutes after 0.3Mpa water is put into the test tank.
Main Material:
Cover-Steel
Coaming-Steel
Handwheel-Steel, Stainless Steel or Steel with Galv
Spring-Spring Steel
Main Size List(mm):
| Clear Size | Cut Out Size | Coaming Inner Diameter | Cover Outside Diameter | Cover Thickness | Coaming | Center Distance | Weight | |
| D | D1 | D2 | D3 | t | t1 | H | B | kgs |
| 600 | 640 | 670 | 720 | 12 | 12 | 200 | 473 | 245 |
| 650 | 690 | 720 | 770 | 498 | 266 | |||
| 700 | 740 | 770 | 820 | 523 | 285 | |||
| 750 | 790 | 820 | 870 | 548 | 306 | |||
| 800 | 840 | 870 | 920 | 573 | 328 | |||
.
