Marine Steel Double Side Opened/Closed Weathertight Hatch Cover

Marine Steel Double Side Opened/Closed Weathertight Hatch Cover thumbnail-1
Marine Steel Double Side Opened/Closed Weathertight Hatch Cover photo-1
US$ 200 - 2,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Chongqing, China
Brand Name:
Jinbo
Model Number:
CB/T3728-1995
Contact Supplier Request Quote Chat Now
Chongqing Jinbo Marine Equipment Import & Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
any port in China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Chongqing, China
Brand Name Jinbo
Model Number CB/T3728-1995
Part Hinge

Specifications

Marine Steel Hatch Cover
1)Standard or customerized size
2)CCS,BV,DNV,ABS,NK,LR,GL cert
3)Competitive price an good quality

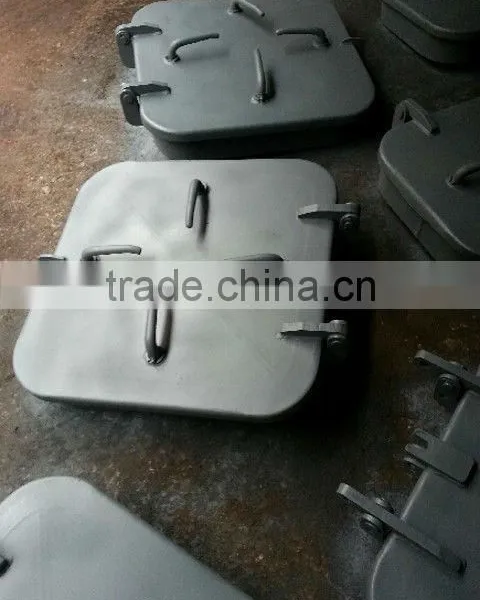

Marine Steel Double Side Opened/Closed Weathertight  Hatch Cover

Steel Small Size Hatch Cover Standard: CB/T3728-1995

It is used for small size hatch cover of various ships, meet ISO 5778-1979, and have the Type A, B,C, D, E,F.

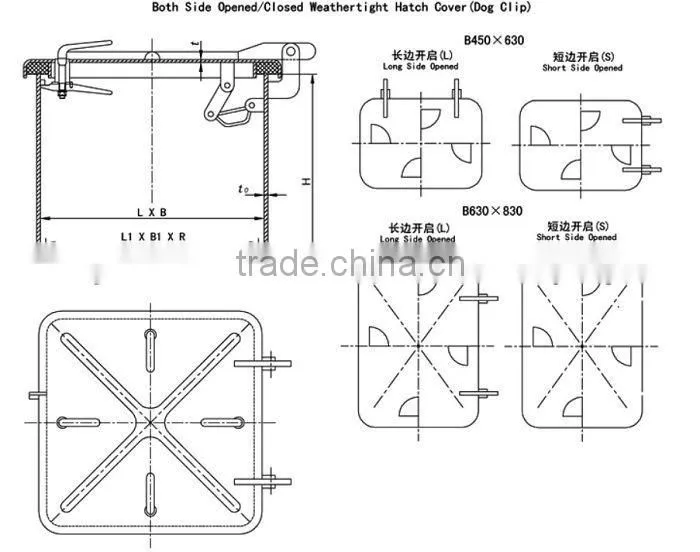

Type B is Both Side Opened/Closed Weathertight Hatch Cover With Dog Clip

*The counter weight is added according to the size or the customer's request.





Main Material:

Cover-Steel

Coaming-Steel

Dog Clip-Steel, Stainlesss Steel or Copper or Steel with galv





Main Size List(mm):

Nominal Size(LXB) Size of door way(L1XB1XR) Size of Cover (L2XB2) Thick of cover (t) Coaming Dog Clip Weight(KG)
to H Dia Qty
450*630 420*600*100 508*688 4 4.6 100

150

200

250

450

600

   4 28.7
512*692 6 6.8 35.4
516*696 8 8.11 42.0
530*530 500*500*100 508*588 4 4.6 28.5
592*592 6 6.8 35.1
596*596 8 8.11 41.7
630*630 600*600*100 688*688 4 4.6 33.5
692*692 6 6.8 42.4
696*696 8 8.11 51.2
630*830 600*800*100 688*888 4 4.6 39.7
692*892 6 6.8 51.2
696*896 8 8.11 62.3
830*830 800*800*100 888*888 4 4.6 6 51.2
892*892 6 6.8 65.3
896*896 8 8.11 79.4
830*1230 800*1200*100 888*1288 4 4.6 8 71.4
892*1292 6 6.8 91.5



Remarks:



1)The weight is not including the coaming weight.



2)The thickness and the height of the coaming are decided by the customer.


Marine Steel Double Side Opened/Closed Weathertight Hatch Cover
