Specifications
Pile Guide Roller:1.Widely used in ports and docks;
2.Agile-turning, easy-installation.
3, Fast delivery time.
4,long usage
Pile Guide Roller:
Pile Guide Roller Cushion Roller Rolling Rubber Fender :
It is commonly used on the berth corners and dock entrances, also widely installed along the walls of dry docks and other restricted channels to help guide vessels and prevent hull damage.
The wheel is mounted on a fixed axle supported by a special frame. And wheel can be rotated freely when the ship hull contact / slid the along with the wheel . Roller Fenders combine reasonable energy absorption with low reaction at all berthing angles.
Roller fender is low maintenance frame design and easy installation.
Feature:
1.Widely used in ports and docks;
2.Agile-turning, easy-installation.
Standard Size of Rolling Rubber Fender Type D1:
| Specification and size Item | A | B | C | D | E | F |
| D1-060-20 | 600 | 200 | 320 | 110 | 420 | 695 |
| D1-075-25 | 750 | 250 | 400 | 140 | 510 | 870 |
| D1-090-30 | 900 | 300 | 480 | 165 | 610 | 1040 |
| D1-120-40 | 1200 | 400 | 640 | 220 | 820 | 1380 |
| D1-150-50 | 1500 | 500 | 800 | 275 | 1010 | 1740 |
| D1-180-60 | 1800 | 600 | 960 | 330 | 1210 | 2080 |
| D1-210-70 | 2100 | 700 | 1155 | 385 | 1410 | 2440 |
| D1-240-80 | 2400 | 800 | 1280 | 440 | 1610 | 2770 |
Standard Size of Rolling Rubber Fender Type D2
| Specification and size Item | A | B | C | D | E | F |
| D2-060-20 | 600 | 200 | 320 | 110 | 770 | 695 |
| D2-075-25 | 750 | 250 | 400 | 140 | 935 | 870 |
| D2-090-30 | 900 | 300 | 480 | 165 | 1120 | 1040 |
| D2-120-40 | 1200 | 400 | 640 | 220 | 1500 | 1380 |
| D2-150-50 | 1500 | 500 | 800 | 275 | 1850 | 1740 |
| D2-180-60 | 1800 | 600 | 960 | 330 | 2215 | 2080 |
| D2-210-70 | 2100 | 700 | 1155 | 385 | 2590 | 2440 |
| D2-240-80 | 2400 | 800 | 1280 | 440 | 2950 | 2770 |

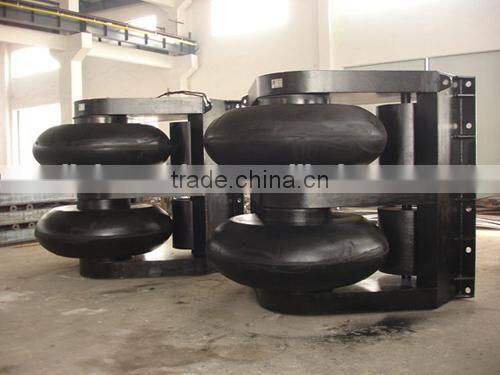

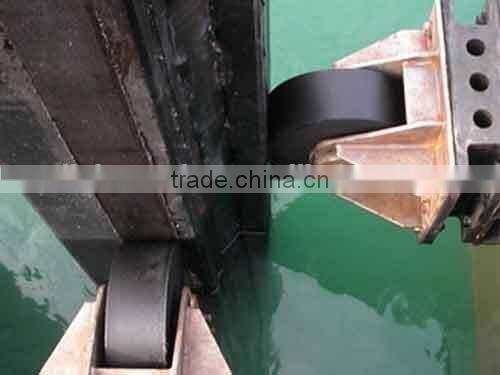

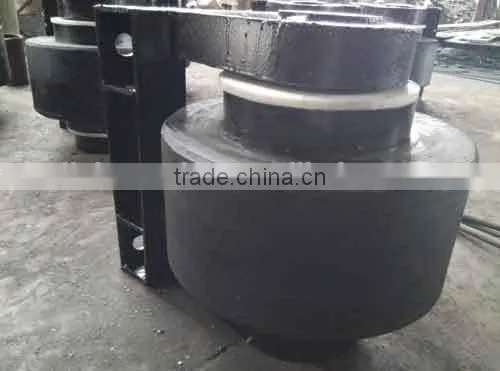

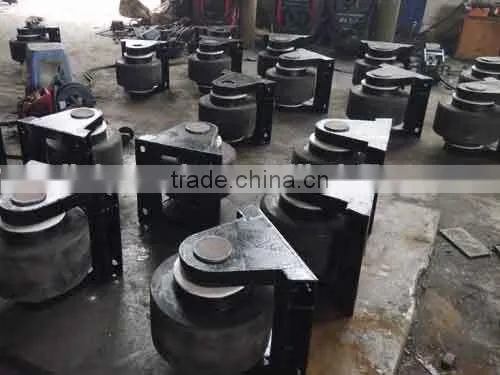

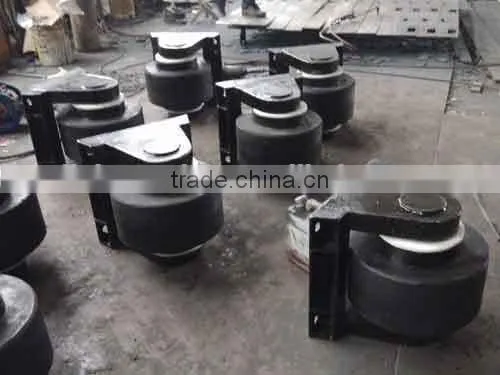

Photo:
