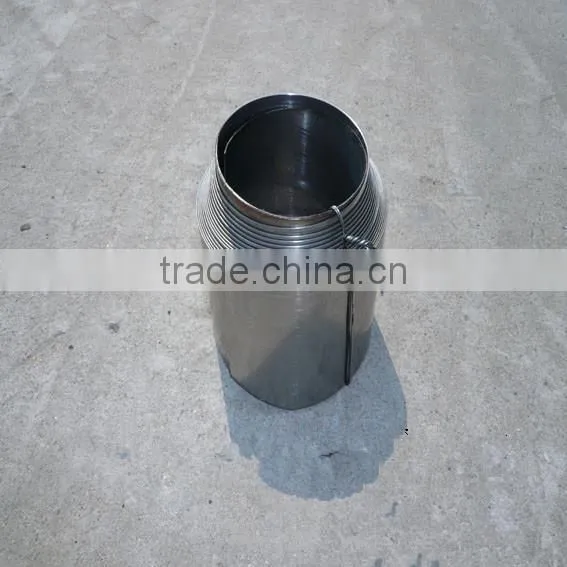

Help CenterFlexble Spiral Spring Steel Telescopic Cover
Related Products
-
Round Type Telescopic Covers Protecting Machine ScrewUS$ 3 - 20MOQ: 1 Piece -
OEM Automatic Telescopic CoverUS$ 1 - 50MOQ: 1 Piece
-
Rectangle Type Telescopic Cover for Lift With CE CertificationUS$ 1 - 50MOQ: 1 Piece
-
LC-LIDA Spiral Steel Tape Telescopic Machine CoversUS$ 5 - 20MOQ: 1 Piece
-
Flexible Accordion Cnc Machine Telescopic CoversUS$ 1 - 50MOQ: 1 Piece
Performance:The spiral steel tape shield is a functional part for machine tools jointly developed by our factory and italy and used for digital-controlled machine tools and processing centers.hydraulic syother,shaft and various screws.It not only serves dustproof,devbrsproof and coolant proof,but also maintains the acuracy of the machine tools so as to obtain long life time of the machine.
Construction Features:This type of shield is made by using fine quality steel strips with heat treatment and is kind of protection for serews,shafts and associated parts,The shield,mounted on a alignment flanges on both ends,has no contact with the parts to be protected .This shield is connected to the alignment flanges according to compression force that can be estimated beforehand.So this shield is working stably.freely pull out and talle up and has very low level noise.The surface color is black,which is identical with most of the flanges on the machine.
D1 shield’s small end inside Diameter=dmaz + 10mm
D2 shield’s large end inside diameter
D3 largeflange inside diameter=D2+6-8mm
D4 small flange outside diameter=D1+1-2mm
dmax-Max , diameter of the parts to be shieeded
Lmin-Min, compression length
Lmax-Max extension length
L-allowable max.travel range
