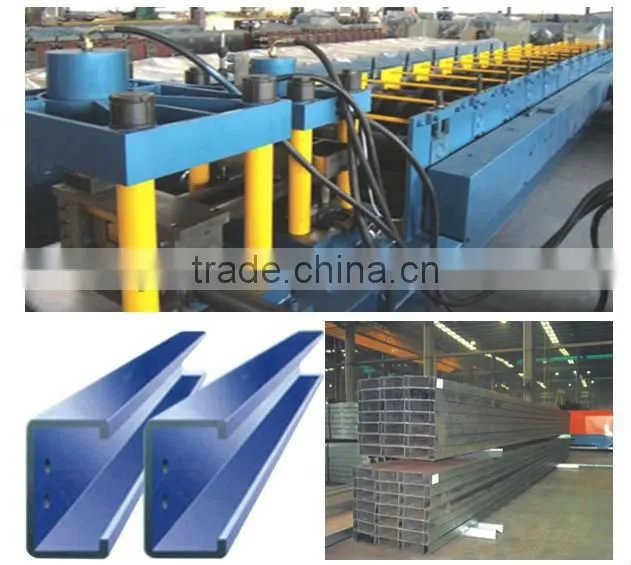

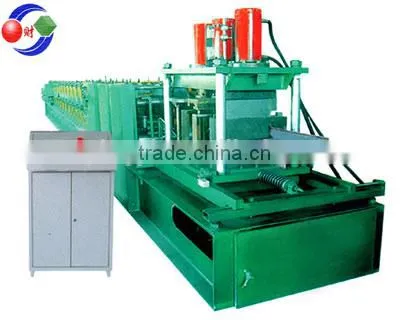

Help CenterC Type Metal Sheet Purline Forming Machine From 9#
Related Products
-
Steel Coil Cutting Line From 9#US$ 30,000 - 500,000MOQ: 1 Set -
Production Line for Steel BarrelUS$ 5,000 - 1,000,000MOQ: 1 Set
-
Roll Forming Machine From AdaUS$ 10,000 - 100,000MOQ: 1 Unit
-
Tube Forming MachineUS$ 90,000 - 200,000MOQ: 1 Set
-
Cold / Hot Rolling MillUS$ 200,000 - 10,000,000MOQ: 1 Set
Product Description
1.PLC computer control
2.no noise,no shake
3.hydraulic system,long operating
4.easy operation
5.maintenance-free
Introduction
1 This machine is made up of roll forming machine,molding press,cutting machine,PLC computer control and hydraulic system
2 The machine is stable,no noise,no shake
3 Controlling by computer, PLC display, operation is easy, running is steady and reliable,endurable, maintenance-free
4 cutting machine is characterized by stable driving, easy operation
5 hydraulic system use the CDF-10 hydraulic pump, long operating life,no noise
6 this machine is applies to roof fortification
Flow chart:
Decoiling the sheet--sheet guilding--film covering--roll forming--measure length--cutting the panel--panel to the supporter
Machine Feature:
1.Precise forming
2. High-solid forming stand guarantees the goods and uniform high quality of final product
3. The operation automatically minimizes the tolerance of cutting length
Products Feature:
1. A stylish and attractive design, giving the appearance of a traditional roof tile.
2. Resistant to frost, heat,hail and gales; 100% waterproof, due to the lateral run-off channel on each sheet for several models.
3.The raw material can be in different color, with elegant and noble looking. It is widely used as the garden like factory, hotel, exhibition, villa,civil construction etc.
Technical Parameters:
Material Spec: colored steel sheet; galvanized steel sheet
Thickness of coil sheet: 0.3-0.8mm
Main Motor Power: 4 kw
Forming Speed: 10-15m/min
Hydraulic station power: 3kw
Quantity of stand:about 14 or 16 stands
Hydraulic pressure:10-12mpa
controlling system: PLC
Index error of length:10m+2mm
Total weight: about 6 tons
Voltage: 380V 3phase 60 HZ or at buyer's requirement
Material of main equipment
Roller material: high grade NO.45 forged steel, plated hard chrome on the surface of roller with thickness 0.05mm
Active shaft material: high grade NO.45 carbon wrought steel at Φ 72mm
Cutting blade: Cr12 mould steel with quenched treatment.
| main parameter of roll forming machine | ||
| Suitable to process | Steel plate | |
| Width of the plate | 1000mm/1200mm/1250mm | |
| Rollers | 11rows | |
| Dimensions | 5.8*1.55*1.51m | |
| Power | 4kw+4kw | |
| Thickness of the plate | 0.2-0.7mm | |
| Productivity | 8-10m/min | |
| Diameter of the roller | ¢70mm | |
| Weight | About 3.4T | |
| Voltage | 380V 50Hz 3phases | |
