Taiwan Manufacturers 7.5HP 8inch Aquaculture Submersible Motor

Taiwan Manufacturers 7.5HP 8inch Aquaculture Submersible Motor photo-1
Taiwan Manufacturers 7.5HP 8inch Aquaculture Submersible Motor photo-2
Taiwan Manufacturers 7.5HP 8inch Aquaculture Submersible Motor photo-3
Taiwan Manufacturers 7.5HP 8inch Aquaculture Submersible Motor photo-4
Taiwan Manufacturers 7.5HP 8inch Aquaculture Submersible Motor photo-5
Taiwan Manufacturers 7.5HP 8inch Aquaculture Submersible Motor photo-6
US$ 280 - 2,200 MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
SONHO
Model Number:
BL
Payment & Shipping
Payment Methods:
Port of Shipment:
Kaohsiung port
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Taiwan, China
Brand Name SONHO
Model Number BL
Theory Axial Flow Pump
Structure Single-stage Pump
Usage Water
Power Electric
Standard or Nonstandard Standard
Fuel Other
Pressure Low Pressure
Application Submersible
BL-KL SERIES

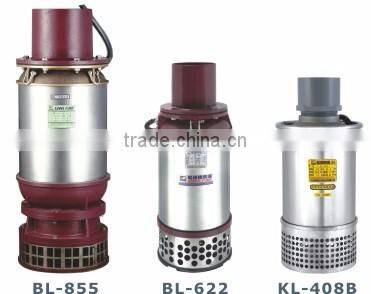

Taiwan manufacturers 7.5HP 8inch Aquaculture submersible motor FEATURES

1. Axial flow design to meet large flow capacity, energy saving and easy installation.
2. Easy to operate, no need to use high voltage power supply and less vibration and noise caused.
3. Pump body and motor frame/casing are made of alloy copper and stainless steel to raise durability and wear-resistance.
4. Dual mechanical seals are adopted for higher wear-resistancein seawater, muddy liquid and wastewater.
5. Pump outer casing, motor frame and shaft are made of stainless steel. High precise screwing positions are designed
to easy disassemble and maintenance.
6. Inner cable wires and cable base are upgraded by filling EPOXY to raise humidity-resistance.
7. Economical type (cast-iron) made are available for customized requirements.

APPLICATIONS

Agriculture irrigation, drainage of fishing pond, aqua farm, subway, and large flow capacity in industries, flood control...etc.

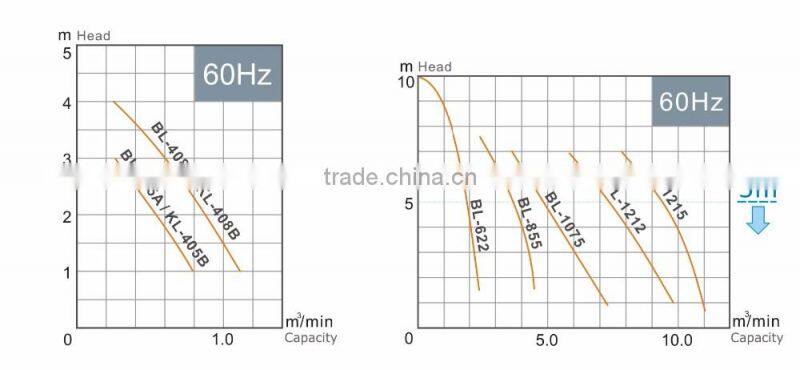

MODEL
(60 HZ)
Output
HP(KW)
Discharge
inch
Head
(m)
Capacity
(m3/min)
BL-405A
1/2(0.5)
4"
1.5
0.7
KL-405B
1/2(0.5)
4"
1.5
0.7
BL-408A
1(0.75)
4"
1.5
1.0
KL-408B
1(0.75)
4"
1.5
1.0
BL-622
3(2.2)
6"
3.5
2.0
BL-855
7-1/2(5.)
8"
4
4.0
BL-1075
10(7.5)
10"
4
5.5
BL-1212
16(12)
12"
4
8.0
BL-1215
20(15)
12"
4
10
