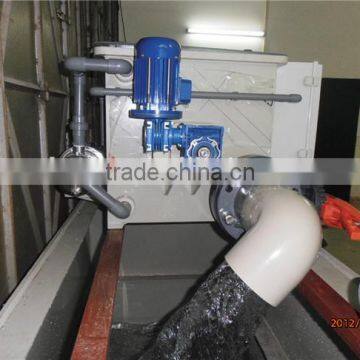

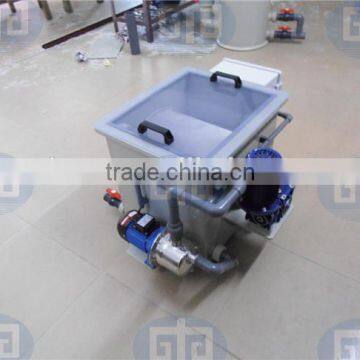

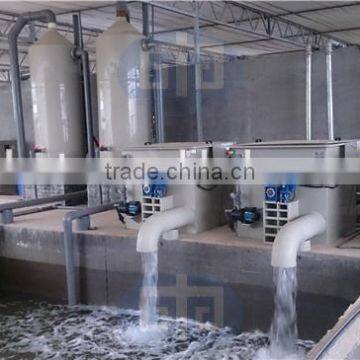

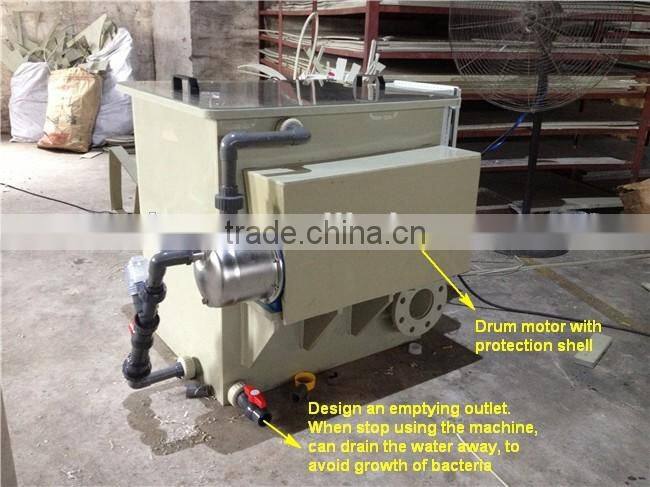

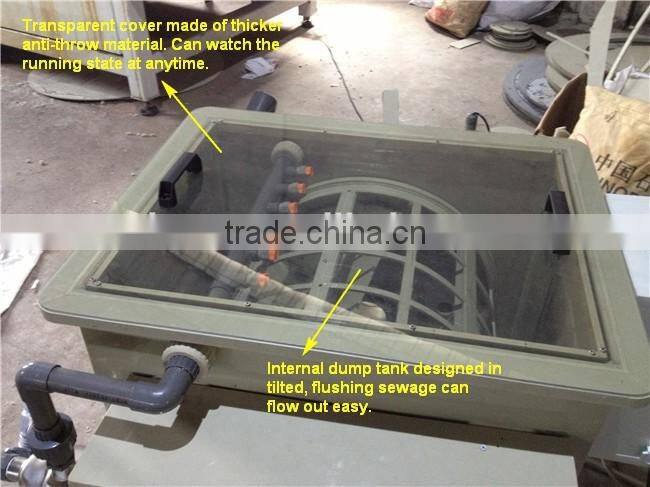

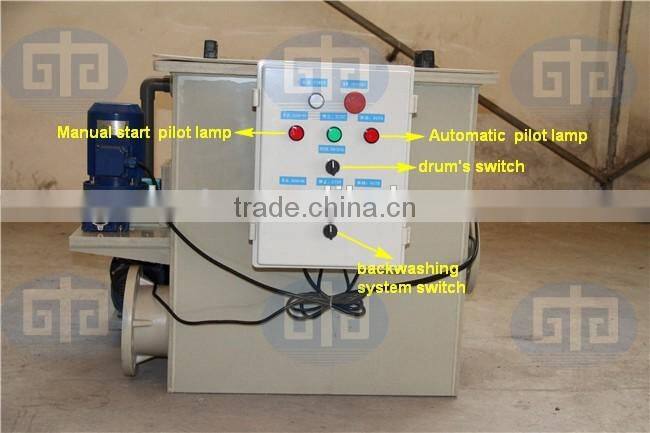

Fish farm drum filter, drum filter for the recirculating aquaculture system
Automatic backwashing drum filter is an aquatic generation in ZhongHang company barrel microfiltration machine on the basis of the upgrade to the latest version of the micro filter, also known as drum filter. It not only improves the drum of a generation of all the advantages of the micro filter, and targeted improvements were made based on a lot of customer feedback. Make it nearly perfect various performance indicators.

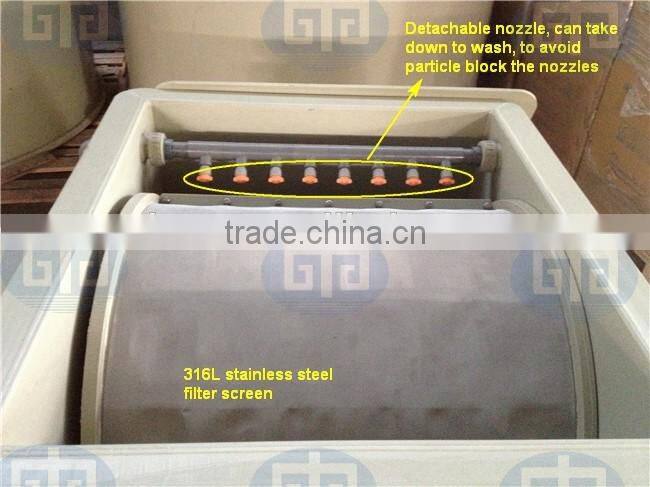

Drum Filter Screen: 316 L Stainless Steel
Dimension: 1200*1250*1050mm
Water Flow Rate: 60 m3/hr
Power: 1KW
Inlet/Outlet: 160mm/160mm Diameter
(no power consumption when not start the back washing system)
Other models:
Model No. |
Capacity |
Filter Fineness |
Voltage |
Power |
Inlet |
Outlet |
Size |
(m3/h) |
(μm) |
(V) 50Hz |
(kw) |
(mm) |
(mm) |
(mm) |
|
ZH-PM-20 |
20 |
20~200 |
380 |
0.73 |
Φ110 |
φ110 |
950*1050*860 |
ZH-PM-40 |
40 |
20~200 |
380 |
0.93 |
φ140 |
φ140 |
1160*1050*860 |
ZH-PM-60 |
60 |
20~200 |
380 |
1 |
φ160 |
φ160 |
1200*1250*1050 |
ZH-PM-80 |
80 |
20~200 |
380 |
1.25 |
φ160 |
φ160 |
1500*1250*1050 |
ZH-PM-100 |
100 |
20~200 |
380 |
1.37 |
φ200 |
φ200 |
1500*1600*1300 |
ZH-PM-150 |
150 |
20~200 |
380 |
1.55 |
φ250 |
φ250 |
1950*1600*1300 |
1) To provide advisory services and custom design.
2) We provide customer choice and provide a range of solutions.
3) We offer practical solutions, timely and quality products and competitive prices, lower volume of orders and deliveries.
4) All of our equipment lifetime warranty for one year warranty.
5) Support Engineers on-site installation and commissioning sent.
6) We will be happy to answer your small problems, we will be happy to bid for any item you are interested in.
Guangzhou Zhonghang Environmental Technology Co., Ltd was established in 2012. We are a manufacturer engage in Recirculating Aquaculture System, Raw Water Treatment System, Aquaculture project, and Aquatic engineering research. Our products include whole set of RAS, protein skimmer, automatic drum filter, uv sterilizer, biological filter, ozone generator, oxygen generator, PP fish tank, water pump etc. We have professional technical personnel to offer you professional service in your aquaculture system. And our product was salad well in the world. Please feel free to contact u for more information.
