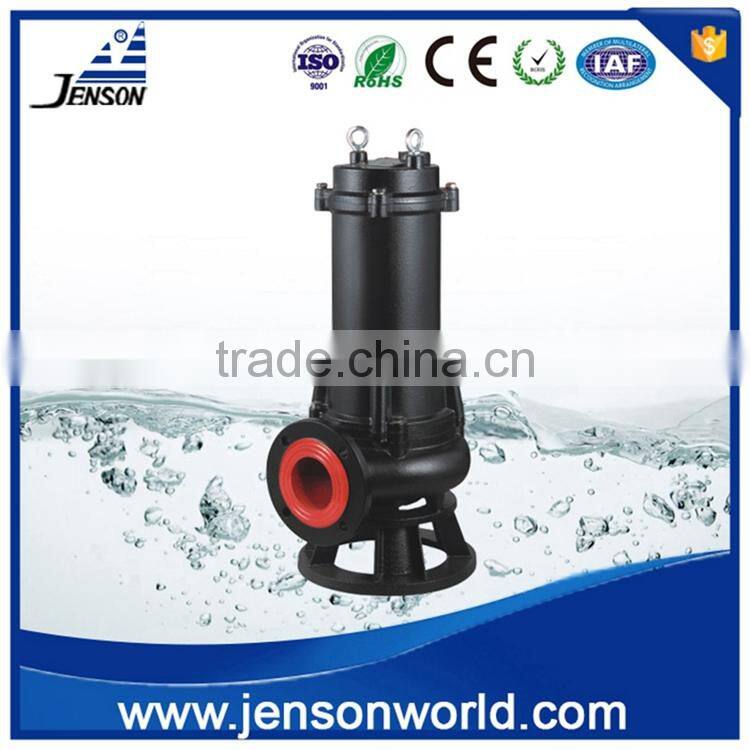

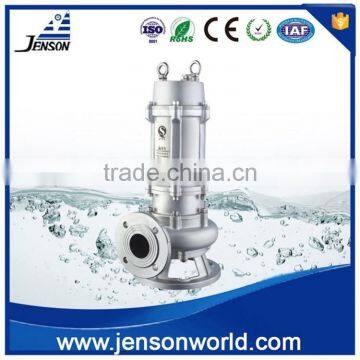

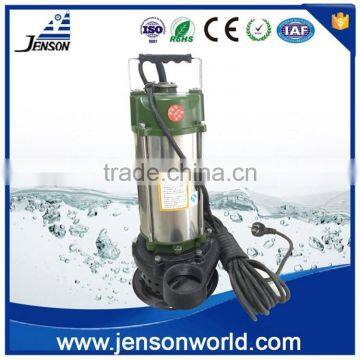

Jenson electric centrifugal submersible sewage cutter pump
* Environmental protection, beautiful appearance,convenient installation 110~380V new style electric centrifugal submersible sewage cutter pump .
*Jenson stainless steel single stage submersible sewage cutter pump combining the motor and pump together, can be used as water suction equipment for line of industrial etc.
*The sewage pump suitable for conveying dirt , liquids , solids , long fiber medium.
Widely used in municipal works,sewage treatment plants,factories,hospitals , construction, hotels, restaurants and many other industry discharges.
*Sewage cutter pump normal life is five years! Warranty time:1year(Under normal use and service from the date of purchase .

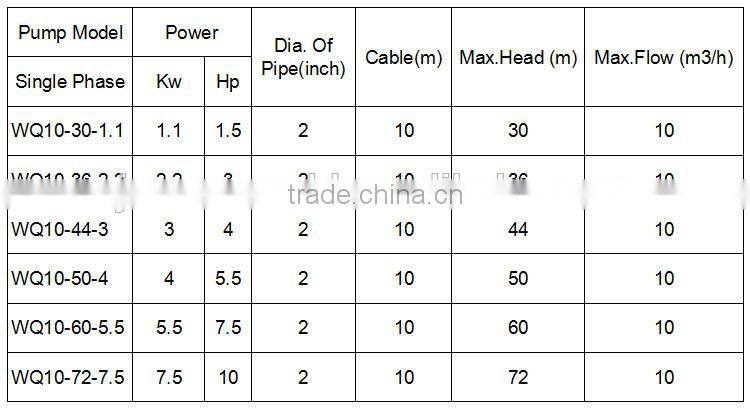

Technical data
1)Mechanical seal of tungsten carbide, silicon carbide and hard alloy materials avoids the water entering the motor.
2)Auxiliary impeller applies to balance outer pressure of the oil cavity and prolong the motor’s service life.
3) Unique wide flow-channel design ensures the pump has powerful passing capacity and will not easily be silted or intertwined.
4) Can work normally even in low water level, since over 18.5kw power pumps cool off with outer circulating water automatically.
5) Automatic protection device and control case ensure the good performance of the pump.
Performance
1)Maximum fluid temperature up to 40°C.
2)PH of liquid medium: 4 – 10.
3)Solid deposit volume ratio: under 2%.
4)Density of the medium: less than 1.2*10³kg/m³.
Ambient temperature
1)permissible up to 40 °C .
2)For water supply from household, domestic use, civil and industrial applications .
Power
1) Main power: 110V - 380V, 50Hz /60Hz.
2) as your requirments
Motor
1) Degree of protection: lp44
2) Insulation class: F
Construction materials
Mounting positions
1)The motor and the sewage pump united as one, working under the water, more reliable.
2) No special requirements for the well casing and lifting pipe. (It can work in Steel tubular well, lime well, earth well etc. Within the reasonable pressure range, steel tube, rubber tube and plastic hose can be used as lifting pipe.)
3)Easy to install, operate and maintain, less space demand, no pump house needed .
4)Simple structure, less cost ,equip with start control box or digital auto-control box , centrifugal submersible sewage cutter pump are designed by casing stressed .
Pump equipment
1) CE, SGS, RoHS certificated.

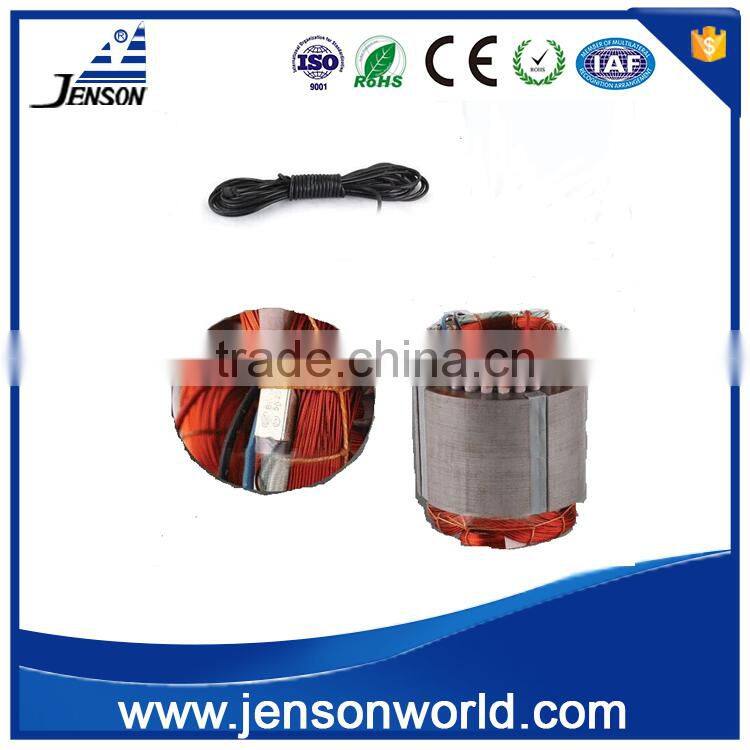

2) 100% copper wire, stainless steel shaft, brass/cast iron outlet.
3) Wide voltage range design, single-phase.
4) Strict complete testing for each product.
5) Dedicated sales representative .
6)1 year warrenty , according to our general sales conditions .
Jenson electric centrifugal submersible sewage cutter pump
* Jenson submersible sewage cutter pump & centrifugal submersible pump be packed in wooden case with two foams fixed , 1 Pcs/ctn or as your requirements .
* Jenson electric centrifugal submersible sewage cutter pump can be shipped by sea , air , international fast express after 30% deposit in advance,the rest T/T against copy of B/L.
* The superior manufacturer in electric centrifugal submersible sewage cutter pump with 12 years of experience in this field, welcome OEM
* The confident and the best & reliable supplier for you .
* 24 hours service , reply timely .
* Devote Provide you 100% satisfaction for customer from pre-sale to after-sale .
* Best quality , best price , best service , all the best . Experienced worker and design team, strict quality control system .
