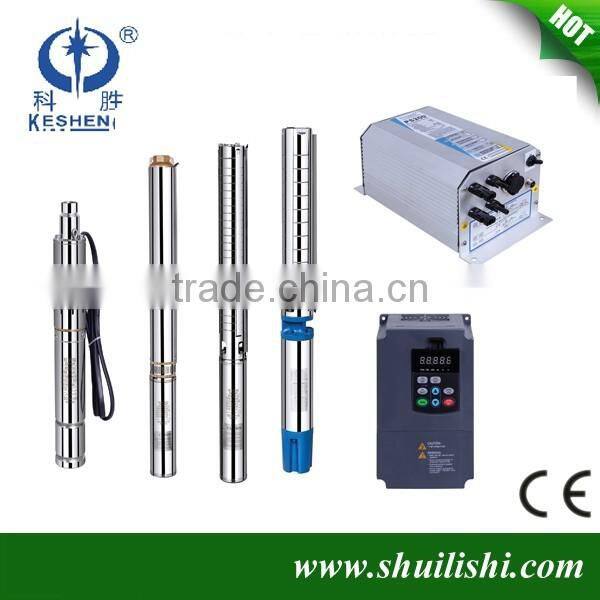

4 Inch Solar Submersible Water Pump

4 Inch Solar Submersible Water Pump thumbnail-1
4 Inch Solar Submersible Water Pump photo-1
US$ 300 - 1,000 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
OEM
Model Number:
4PSS2-18
Contact Supplier Request Quote Chat Now
Taizhou Donghai Fishery Machine & Electrics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO/SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name OEM
Model Number 4PSS2-18
Theory Rotary Pump
Structure Screw Pump
Usage Water
Power Electric
Standard or Nonstandard Standard
Fuel Other, water
Pressure High Pressure
Application Submersible

solar submersible water pump







                              solar water pump

4 Inch solar submersible water pump



4 Inch solar submersible water pump

Pump Application
  • Domestic water supply
  • Livestock watering
  • Gardens or fountains
  • Pond management
  • Irrigation in horticulture & agriculture
  • Small scale service industries
  • etc.
4 Inch solar submersible water pump
Solar pump technical data
4PSS Series( 4"  impeller pump with 4"water-filled motor)
MODEL                   DELIVERY       n≈3450 1/min
DC/V KW HP Q M3/h 0 0.3 0.6 0.9 1.2 1.5 1.8 2.1 2.4 2.7 3
      Q I/min 0 5 10 15 20 25 30 35 40 45 50
4PSS2-5 24 0.37 0.5     35 34 33 32 30 28 26 23 20 17 13
4PSS2-9 48 0.55 0.75     52 51 50 48 45 42 38 34 30 25 19
4PSS2-13 48 0.75 1     76 74 72 69 65 61 55 50 43 36 27
4PSS2-18 72 1.1 1.5   H(m) 105 103 100 95 90 84 77 69 60 50 38
4PSS2-23 96 1.5 2     134 131 127 122 115 107 98 88 77 64 48
4PSS2-30 156 2.2 3     174 170 165 159 150 140 127 115 100 85 64
4PSS2-40 216 3.0 4     233 228 222 212 201 186 170 153 134 111 84
4PSS2-53 276 4.0 5.5     310 305 298 285 270 255 228 203 178 148 112


MODEL              DELIVERY         n≈3450 1/min
DC/V KW HP Q M3/h 0 0.6 1.2 1.8 2.4 3 3.6 4.2
      Q I/min 0 10 20 30 40 50 60 70
4PSS3-4 24 0.37 0.5     25 23 21 18 29 26 22 16
4PSS3-6 36 0.55 0.75     37 35 34 32 29 26 22 16
4PSS3-9 48 0.75 1     56 53 50 48 44 39 32 24
4PSS3-12 72 1.1 1.5        H(m)   75 71 67 63 59 52 43 32
4PSS3-18 96 1.5 2     112 106 101 95 88 78 65 48
4PSS3-22 156 2.2 3     137 130 123 116 108 95 79 59
4PSS3-29 216 3.0 4     180 171 162 153 142 126 104 77
4PSS3-39 276 4.0 5.5     242 230 218 206 191 169 140 104
4PSS3-52 276 6 8     323 307 291 275 255 225 187 139


MODEL               DELIVERY             n≈3450 1/min
DC/V KW HP Q M3/h 0 0.6 1.2 1.8 2.4 3 3.6 4.2 4.8 5.4 6 6.6
      Q I/min 0 10 20 30 40 50 60 70 80 90 100 110
4PSS5-4 48 0.55 0.75     25 25 24 23 22 21 20 19 17 15 12 9
4PSS5-6 48 0.75 1     38 37 35 34 33 31 30 28 25 22 18 13
4PSS5-8 72 1.1 1.5     51 49 47 45 44 42 40 37 34 29 24 18
4PSS5-11 96 1.5 2        H(m)   70 68 65 62 59 57 55 51 48 42 34 27
4PSS5-14 156 2.2 3     89 86 82 79 77 73 70 65 59 51 42 31
4PSS5-21 216 3 4     134 129 124 119 115 110 105 98 89 77 63 47
4PSS5-29 276 4 5.5     185 178 171 164 159 152 145 135 123 106 87 65
4PSS5-38 276 6 8     242 233 224 215 208 200 190 177 162 139 114 107

MODEL               DELIVERY         n≈3450 1/min
DC/V KW HP Q M3/h 0 1.2 2.4 3.6 4.8 6 7.2 8.4 9.6 10.8
      Q I/min 0 20 40 60 80 100 120 140 160 180
4PSS8-5 72 1.1 1.5     30 28 26 25 24 23 22 20 17 14
4PSS8-7 96 1.5 2     42 39 37 35 34 32 31 28 24 20
4PSS8-9 156 2.2 3     51 49 47 45 44 42 40 36 30 26
4PSS8-12 216 3 4   H(m) 72 67 63 60 58 55 53 48 42 34
4PSS8-16 276 4 5.5     95 90 85 81 77 74 71 63 55 46
4PSS8-21 276 6 8     126 117 110 105 101 97 92 84 73 60
4PSS8-30 276 8 10.5     180 167 158 151 144 138 131 120 104 86


MODEL               DELIVERY             n≈3450 1/min
DC/V KW HP Q M3/h 0 1.8 3.6 5.4 7.2 9 10.8 12.6 14.4 16.2 18
      Q I/min 0 30 60 90 120 150 180 210 240 270 300
4PSS14-4 96 1.5 2     29 28 27 26 25 23 21 19 17 15 12
4PSS14-5 156 2.2 3     35 34 33 32 31 29 27 25 22 19 15
4PSS14-7 216 3 4     49 48 46 45 43 41 39 36 32 27 20
4PSS14-10 276 4 5.5   H(m) 69 68 66 64 62 58 55 51 45 38 29
4PSS14-13 276 6 8     89 88 86 83 80 76 72 67 59 49 38
4PSS14-18 276 8 10.5     123 122 120 115 111 105 99 92 81 68 53

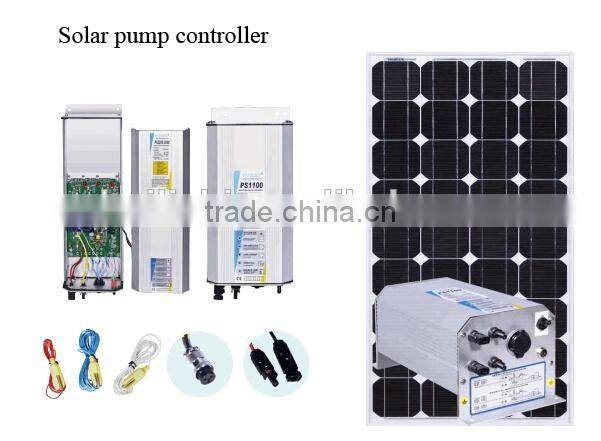

MPPT controller
4 Inch solar submersible water pump
Accessories:













Packaging & Shipping





Company Information



       Taizhou Donghai Fishery Machine & Electronics Co., Ltd. not only owns advanced process technology, automatic production flow and strict process control but also integrates the design, development, production, sales and service.



        Its leading products include high-efficiency solar energy systems, solar water pumps, AC submersible pumps, solar swimming pool pumps, 304 stainless steel shield water-filled or oil-filled submersible motors, brushless energy-saving servo motors for industrial sewing machines, silicon rectification generators, high pressure blowers, etc. Products can also be re-designed and adjusted so as to satisfy the requirements of the customers.

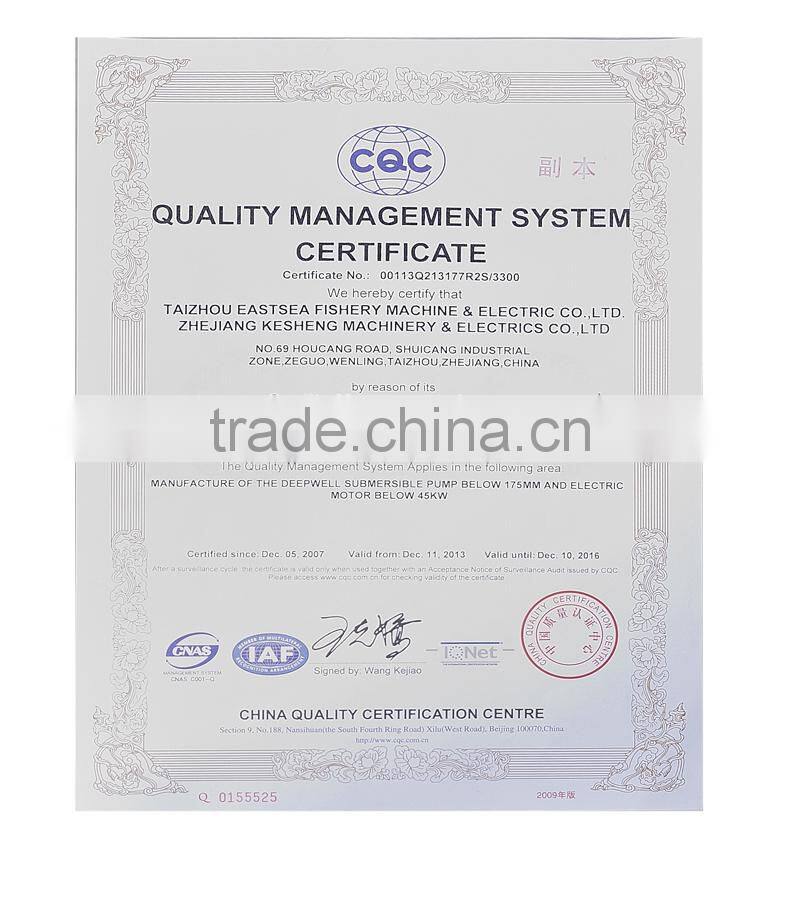

        In addition, the company has been certified to ISO Quality Management System and the products have passed the certifications of CE and RoHS. Its excellent brand image and good reputation have also received high praise from most of the customers. It is believed that only by grasping the core technology and innovating constantly can we produce more satisfying products.







Company Information

 4 Inch solar submersible water pump





FAQ

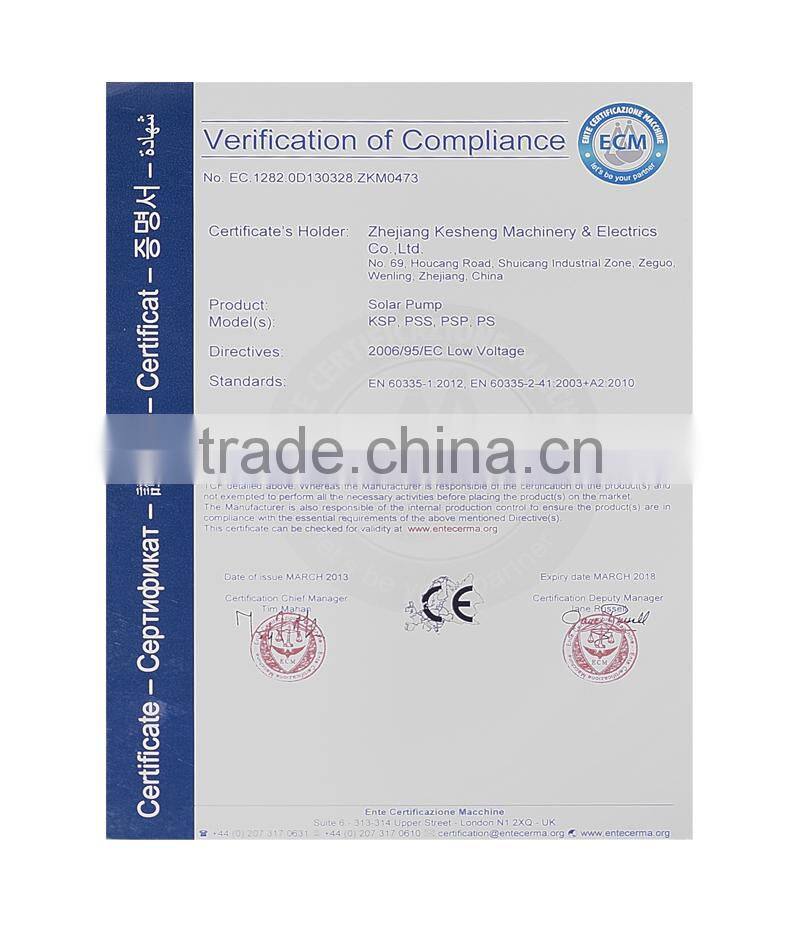

 CE CERTIFICATE



4 Inch solar submersible water pump4 Inch solar submersible water pump

4 Inch solar submersible water pump
