brushless dc solar swimming pool pump, solar circulation pump
- 3000 Set / Sets per Month
- NINGBO
- T/T L/C D/P D/A Credit Card PayPal
- MONO progressive block for prefabried concrete houses
- MONO progressive block for concrete pump spare parts
- MONO progressive block for ready mix concrete trucks
- MONO progressive block for concrete statue molds
- MONO progressive block for concrete columns mold
- MONO progressive block for gearbox for concrete mixer
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | Kesheng (brushless dc swimming pool pump) | Model Number: | brushless dc swimming pool pump (KSP series) |
Theory: | Centrifugal Pump | Structure: | Single-stage Pump | Usage: | Water |
Power: | Other, Electric (370W, 550W, 750W, 1100W,1500W, 2200W) | Standard or Nonstandard: | Standard | Fuel: | Other, Solar energy |
Pressure: | Low Pressure | Application: | Other, Submersible (Liquid Transfer or Circulating) |
Product Description
brushless dc swimming pool pump
brushless dc solar swimming pool pump, solar circulation pump
Kesheng solar swimming pool pumps are brand-name and quality products designed for the big size swimming pool and spa pool.
This series integrates high-performance, high head and high suction together. It can pump large volumes of water efficiently, economically and environmentally friendly, since its energy is solar power and it is made of eco-friendly and anticorrosive materials. By the way, the highest flow rates it can achieve are 39 m3/hour.
In addition, the design of this series is excellent and reaches the world level. It is the best choice for the experts of the engineering world.
Company Profile
Taizhou Donghai Fishery Machine & Electronics Co., Ltd. not only owns advanced process technology, automatic production flow and strict process control but also integrates the design, development, production, sales and service.
Its leading products include high-efficiency solar energy systems, solar water pumps, AC submersible pumps, solar swimming pool pumps, 304 stainless steel shield water-filled or oil-filled submersible motors, brushless energy-saving servo motors for industrial sewing machines, silicon rectification generators, high pressure blowers, etc. Products can also be re-designed and adjusted so as to satisfy the requirements of the customers.
In addition, the company has been certified to ISO Quality Management System and the products have passed the certifications of CE and RoHS. Its excellent brand image and good reputation have also received high praise from most of the customers. It is believed that only by grasping the core technology and innovating constantly can we produce more satisfying products.

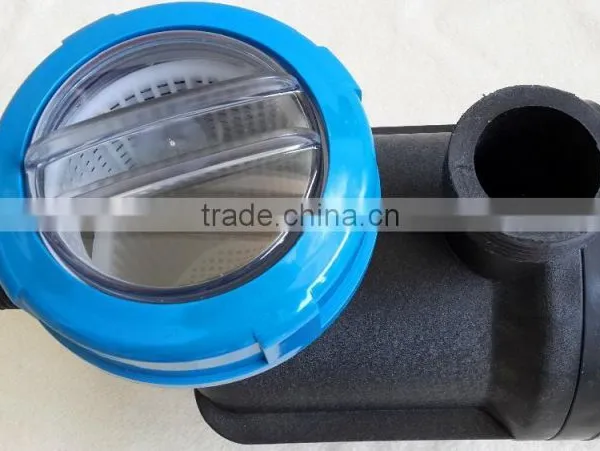

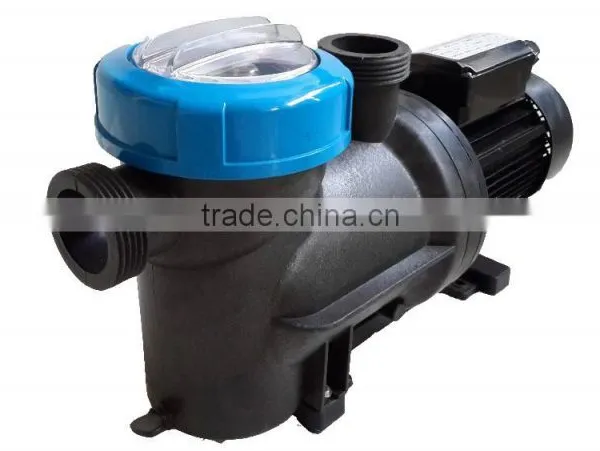

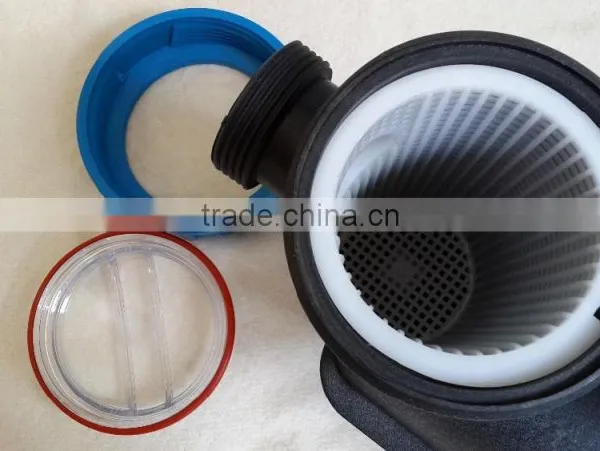

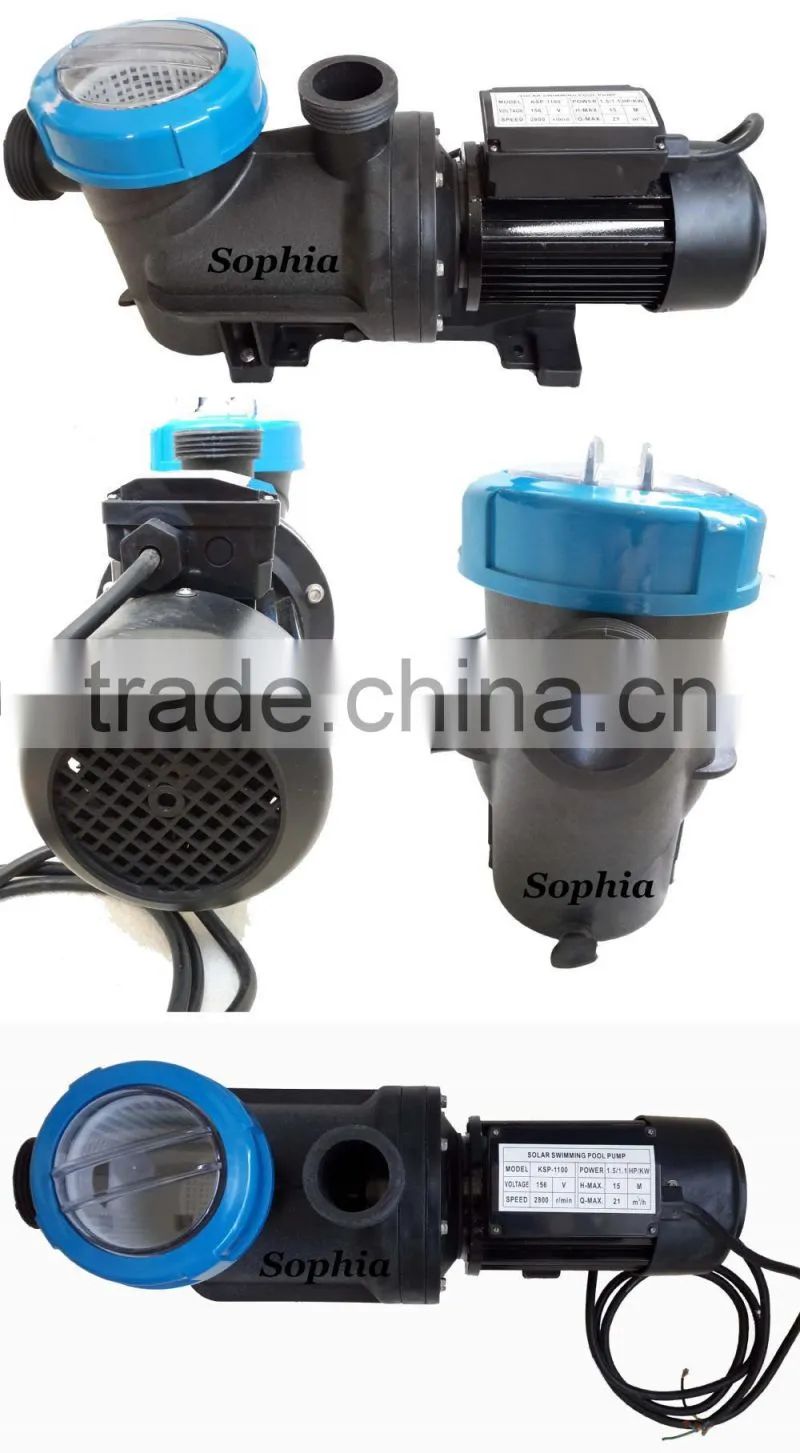

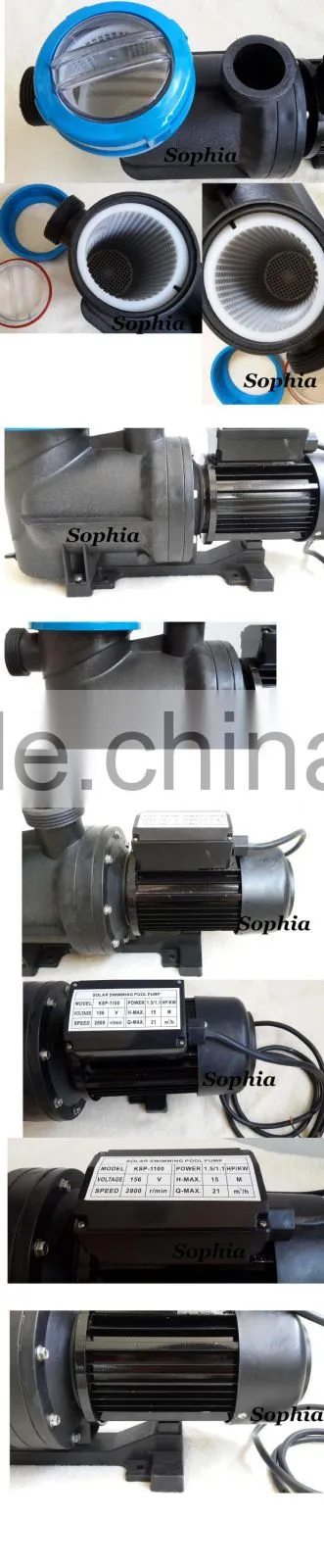

General View
Pump Model Explanation
eg. KSP-1000

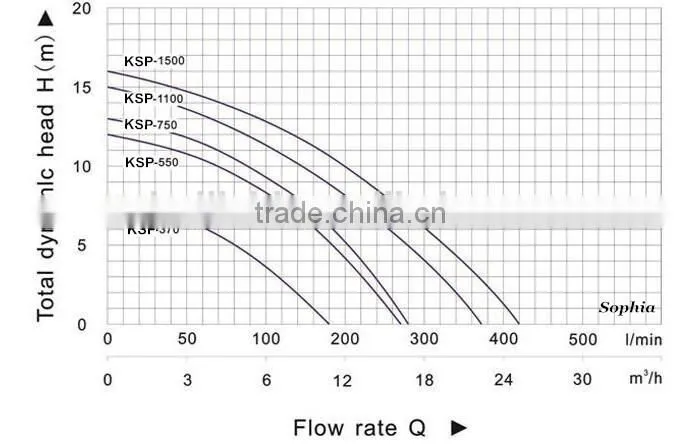

Pump Performance Chart
Solar Swimming Pool Pump Performance Data
KSP Series
Model | Voltage (V DC) | Power | Max. Head (m) | Max. Flow Rate (m3/h) | Input Solar Power (W) | Solar Array Voltage (V DC) | Port Size (mm) | Package Weight (Kg) |
KSP-370 | 48 | 0.37KW 0.5HP | 8 | 11 | 59 | 460 | 40mm 1.5" | 17 |
KSP-550 | 72 | 0.55KW 0.75HP | 12 | 16 | 88.5 | 690 | 40mm 1.5" | 19 |
KSP-750 | 96 | 0.75KW 1HP | 13 | 17 | 118 | 920 | 40mm 1.5" | 22 |
KSP-1100 | 156 | 1.1KW 1.5HP | 15 | 21 | 177 | 1380 | 40mm 1.5" | 28 |
KSP-1500 | 216 | 1.5KW 2HP | 16 | 25 | 236 | 1840 | 40mm 1.5" | 37 |
KSP-2200 | 288 | 2.2KW 3HP | 21 | 39 | 325 | 2530 | 50mm 2" | 41 |
Application
- Water circulation in the swimming pool
- Gardens or fountains
- Pond management
- Irrigation in horticulture & agriculture
- Domestic water supply
- Livestock watering
- Small scale service industries
- etc.
Features
- Anti-rust crust → stopping water penetrating the engine
- High airtight pump cover → preventing the leaking
- 100% copper wire and cold-rolled silicon steel sheet
- Adopting water-filling, permanent magnetic, DC brushless and non-sensor motor → energy-saving and eco-friendly
- Adopting MPPT (maximum power point tracking) driving device and DSP chip technique
- Enough power, high head, big flux and high efficient circulation
- Smaller noise and quiet running
- Excellent resistance to high or low temperature
- Good durability
- Convenient handling and full-automatic operation
- Easy maintenance

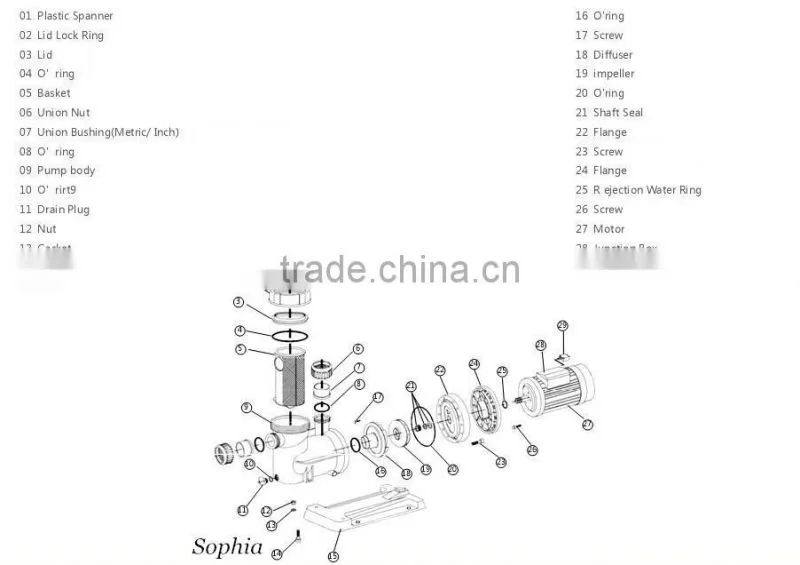

Pump Structure Chart

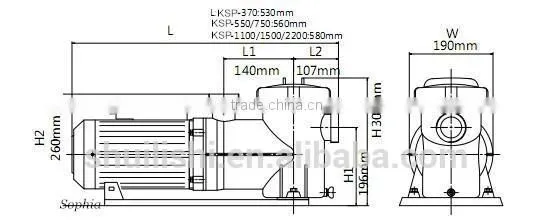

Dimension Drawing for Solar Swimming Pool Pump
Main components
1. High quality solar swimming pump (includes a pump body and a motor)
2. Intelligent MPPT Controller

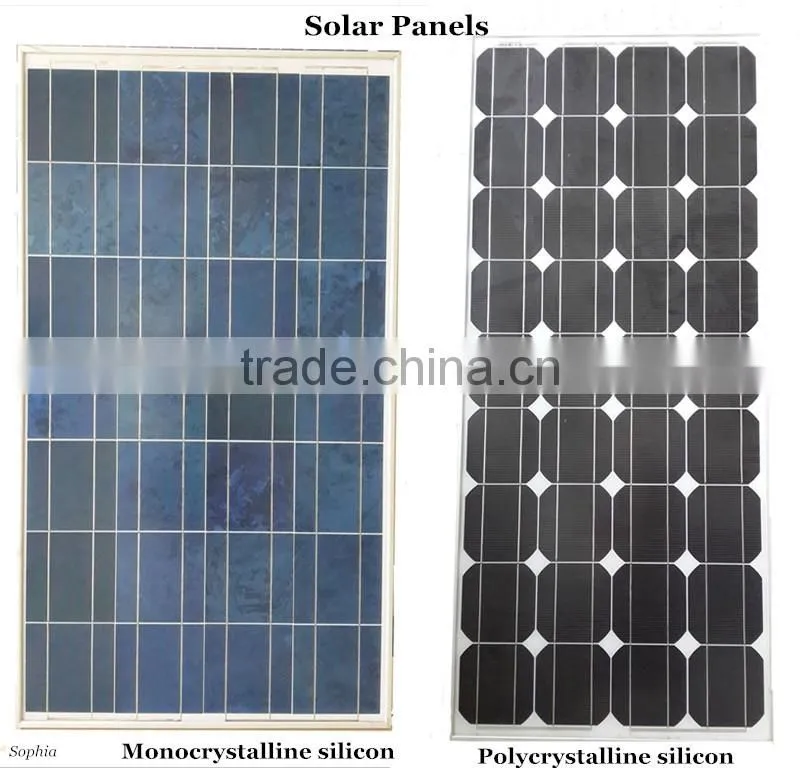

3. A+ Class matched solar array
Accessories
Additional Accessories
- 3 pieces of water level sensors
- Solar panel connecting line
- 1 piece of waterproof adhesive tape
- Heat-shrinkable tubing
- Cable connection pipe
- Male and female connectors (Applying to high power controller)
- UVW (Applying to high power controller)
System Overview
Name | Material |
Water outlet | Plastic |
Impeller | Plastic |
Pump body | Plastic |
Motor casing | Aluminum |
Motor shaft | Ball-bearing |
Screw | 304 Stainless Steel |
Controller
Protection Functions:
- Dry run protection
- Under voltage or over voltage protection
- Overheat protection
- Overload protection
- Lightening protection
Generally speaking, the pump can run reliably in any circumstances.

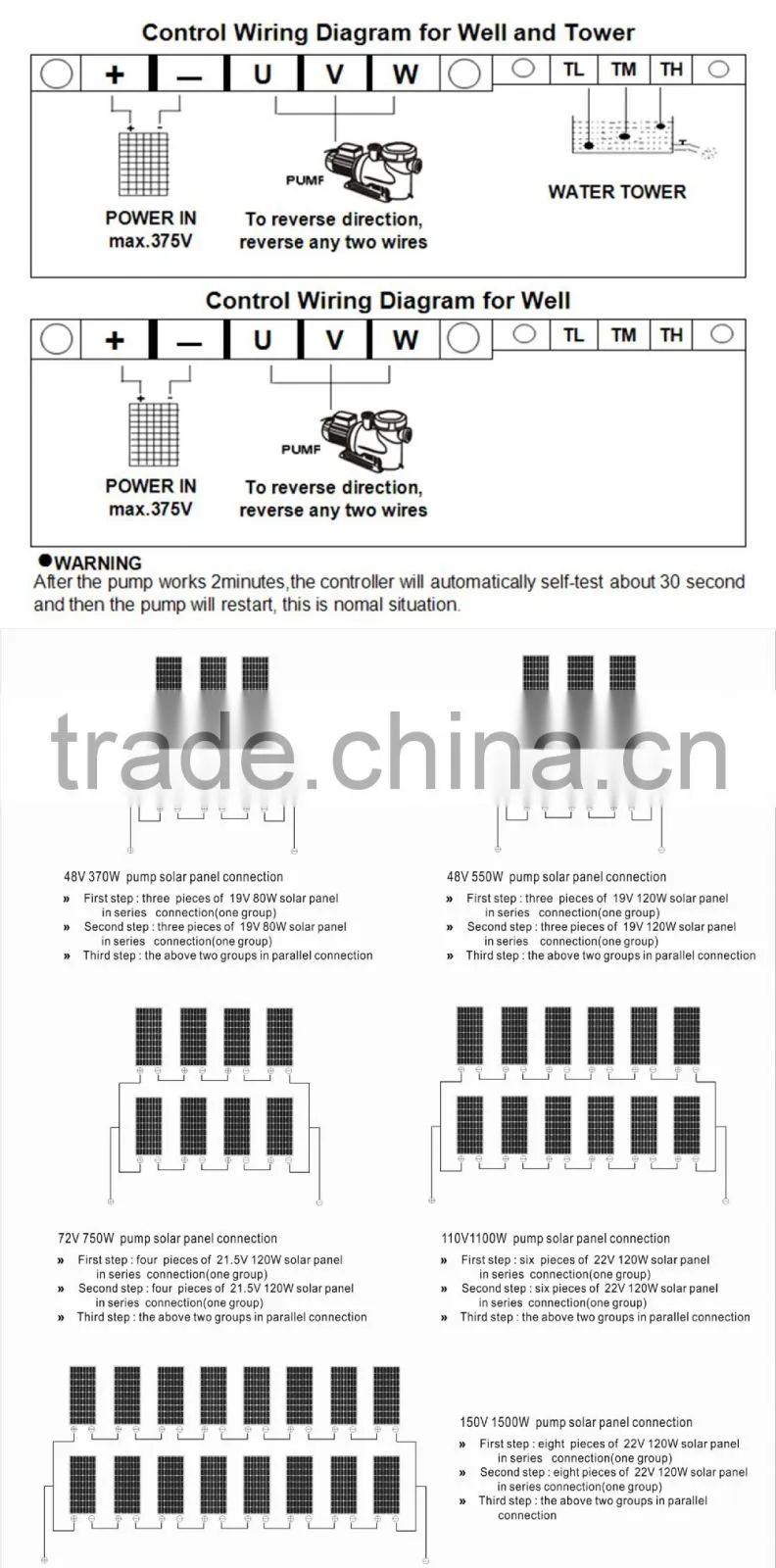

Installation System
1. MOQ (Minimum Order Quantity): 1 set
2. Warranty: 1 year from the date of purchase
(The right of final interpretation about warranty terms owe to our company.)
3. Providing free accessories within the period of warranty
4. Accepting custom service
1. What is the working environment temperature range of your solar swimming pool pump?
Answer:
-10 — 45 °C.
2. Can your pump be connected with batteries and working at night time?
Answer:
With the batteries and charging controllers, the pump can work at night time.
3. Can you offer us your pump catalogue?
Answer:
Of course, we can. But before we provide you our catalogue, please inform us your request for the flow and head so that we can match appropriate pump catalogue for you.
Flow means how much water you want to pump per hour while head means how high you want to pump.
4. Can you provide us your price list for all models?
Answer:
We do not present our price list, because swimming pool pumps of different specifications and your order quantity both will affect our quotation. Thus you should let us know your target price and detailed requirements and then we will send you our quotation sheet.
3. Can you tell us the price of the whole pump system including solar panels?
Answer:
We usually quote you the total price for a swimming pool pump, a controller and some accessories which not including the price of solar panels. But if you want to order solar panels, please contact us.
5. How many solar panels do we need for the swimming pool pump?
Answer:
To design and calculate the perfect solar panels connection, you have to take swimming pool pump power, pump voltage, pump current into consideration. After informing us those factors, we will give you our best recommendation.
6. I am not so familiar with solar swimming pool pumps. How can I make an inquiry?
Answer:
You just need to reply us the answers of the following questions when you plan to inquire.
i. What is your demand for the flow and head?
ii. What is your requirement for the pump voltage and pump power?
iii. What is the usage of those solar swimming pool pumps you order?
iv. How many pieces of solar swimming pool pumping systems do you want?
v. Do you want to order a total system including solar panels or just a swimming pool pump and a controller?
vi. Which means of transportation will you choose? By air, by sea, or by door to door express?
For more information and questions, please contact us.
