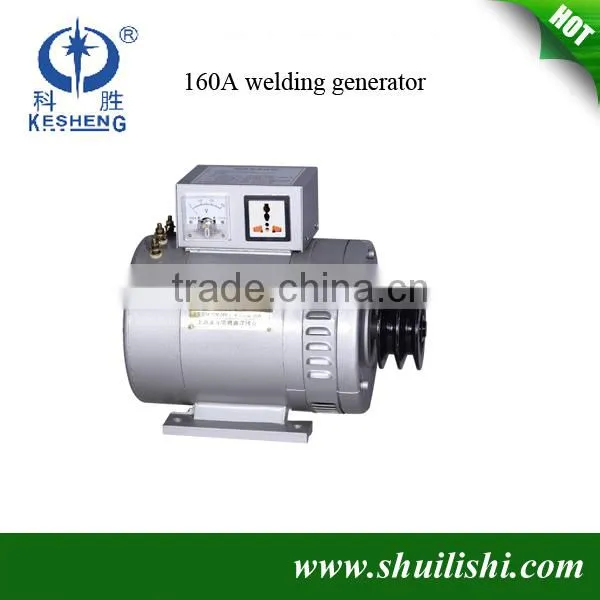

electric welding generator

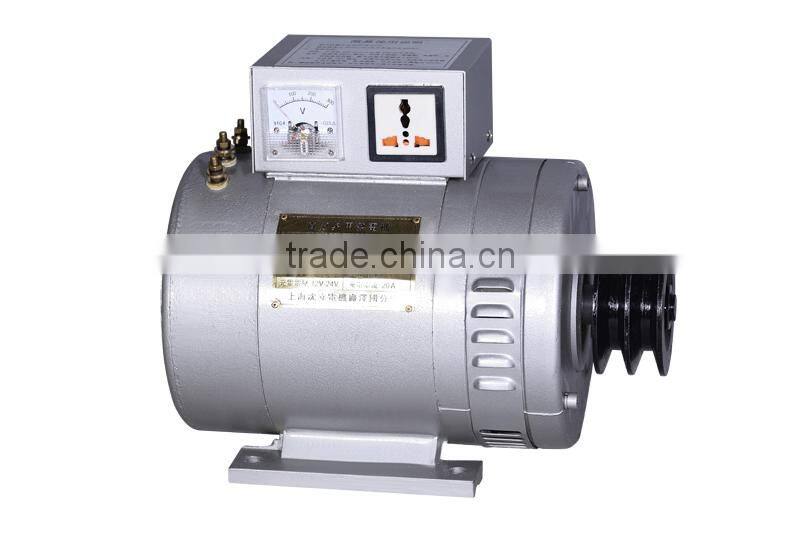

1.The AXG permanent magnetism arc welding generator is powered by a diesel engine, gasoline engine or electromotor, and can be installed on a tricycle, quadricycle or other vehicles to form mobile or fixed type electric welding and power generating dual-purpose equipment;
2.For electric welding (DC), the common welding rods or high-carbon steel welding rods with the diameter of 2.0 to 6.0, are used, the rated duty cycle is 60%, and the overload use is not allowed; and the diameter and the rated duty cycle of welding rods vary accordingly according to different types;
3.The power generation output voltage of the machine is 220V(DC); it is applied to AC-DC dual-purpose electric devices of lamps, electric tools (for example, right angle grinders and electric hand drills), etc. in oil fields, road projects, bridge construction projects, towns, rural areas, forest regions, industry, small-scale ships, household and public places; and the max. power is 1,500W;
4.For charging (when the pointer of the voltmeter points to the voltage of 220 and 230V, the charging output is available), and the charging output voltage of the machine is 12V (DC); and the machine can be used for charging storage cells and used as a backup power supply of farming machinery.
| welding generator parameter | |||||||||||
| Type | AXG-160 | AXG-200 | AXG-250 | AXG-300 | |||||||
| Welding part | DC load voltage (VDC) | 70 | 70 | 70 | 70 | ||||||
| Rated current (A) | 160 | 200 | 220 | 260 | |||||||
| Current range(A) | 80-180 | 90-220 | 95-250 | 95-300 | |||||||
| DC welding Voltage(V) | 22-32 | 22-32 | 25-32 | 25-35 | |||||||
| Rated duty cycle(%) | 60 | 60 | 60 | 70 | |||||||
| Temperature rise(℃) | 60 | 60 | 60 | 60 | |||||||
| Power generation part | Rated voltage(VDC) | 220 | 220 | 220 | 220 | ||||||
| Rated power (W) | 1500 | 1800 | 1800 | 2200 | |||||||
| Duty cycle | Continuous | Continuous | Continuous | Continuous | |||||||
| Common data | Rated speed(r/min) | 3000 | 3000 | 3000 | 3000 | ||||||
| Combined Power Matching | 10 | 14 | 14 | 18 | |||||||
| Internal-combustion Engine(PS) | |||||||||||
| Combined Power Matching | 6.5 | 9.5 | 9.5 | 10 | |||||||
| Electromotor (KW) | |||||||||||
| Triangle belt wheel (Φ95mm) | Tank type B | Tank type B | Tank type B | Tank type B | |||||||
| Insulation grade | B | B | B | B | |||||||
| Volume(mm) | 310*204*290 | 310*204*290 | 310*204*290 | 310*204*290 | |||||||
| Weight(kg) | 27 | 30.5 | 31 | 34.5 | |||||||

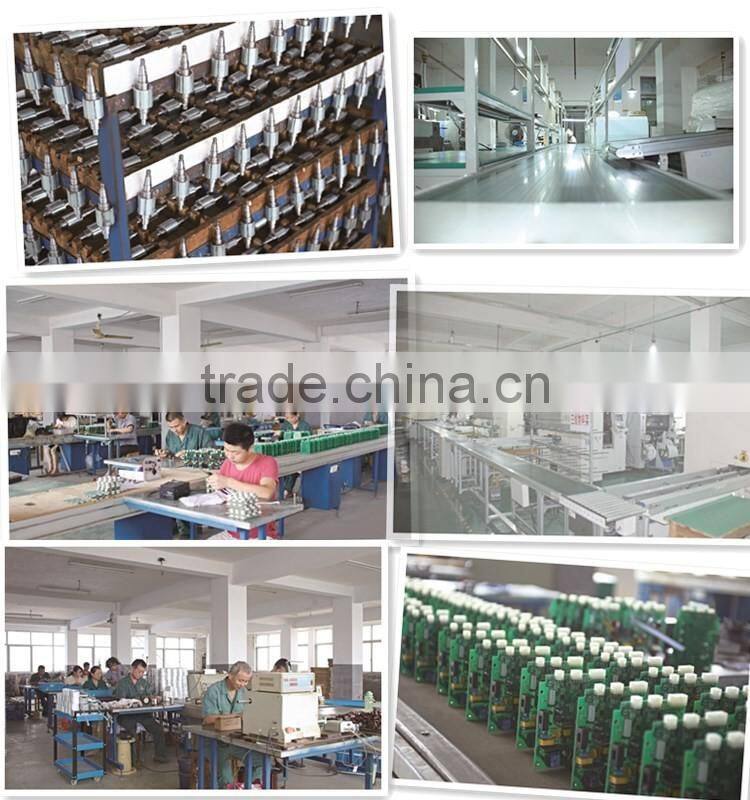

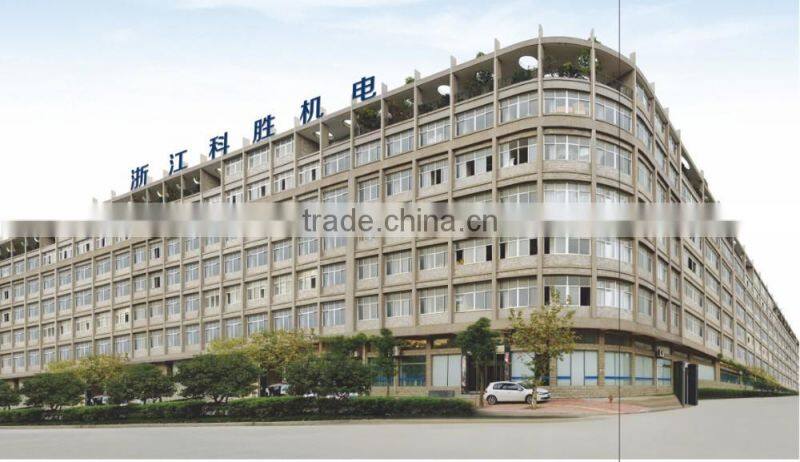

Taizhou Donghai Fishery Machine and Electrics Co., Ltd. is a professional enterprise, specializing in various kinds of water pumps, submersible pumps, and direct current generators of silicon controlled rectifier series for ships. With intact testers and advanced production technology, our products are widely used in mechanism and shipping equipment.
Thanks to our modernized equipment, high quality processing technology, strict on-the-spot management, first-class after-sales services and large-scale testing equipment, we are able to manufacture innovative products with high quality and competitive price. These products sell well both at home and abroad, and are well praised by our users. We are the leading enterprise in this field regardless of fierce competition. Moreover, we have successfully passed some international quality authentications.
Adhering to the principle of "work with perseverance, keep improving, constantly innovate, continuously improve", we spares no effort to actively participate in the international market competition, work hard for our country's development and contribute to the environmental protection course. If you are interested in any of our products, please feel free to contact us for more details. We welcome all inquires from you at any time.
