China Poultry Farm Air Ventilation Fans With Siemense Brand Motor

Shandong Tuishan Heavy Industry Machinery Co., Ltd.
China Poultry Farm Air Ventilation Fans With Siemense Brand Motor thumbnail-1
China Poultry Farm Air Ventilation Fans With Siemense Brand Motor photo-1
US$ 80 - 180 MOQ: 20 Units
Key Specifications
Get Latest Price
Electric Current Type:
AC
Mounting:
Wall Fan
Blade Material:
Stainless Steel
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Electric Current Type AC
Mounting Wall Fan
Blade Material Stainless Steel
Place of Origin Shandong, China
Brand Name TWISAN
Model Number TSA1380
Voltage 220v/380v
Power 1.1kw
Air Volume 44000cbm/h
Speed 439rpm
Certification CCC, CE
After-sales Service Provided No overseas service provided

China poultry farm air ventilation fans with siemense brand motor technical data:

Size

Blade diameter

(mm)

Fan blade rotational speed
r/min

Motor rotational speed
r/min

Air Flow
m3/h

Pressure
Pa

Noise dB

Input power
W

Rated Voltage
V

Length mm

Width mm

Thickness

mm

TSA-800(29")

710

660

1400

22000

60

≤60

370

380

800

800

400

TSA -900(30")

750

630

1400

28000

65

≤65

550

380

900

900

400

TSA -1000(36")

900

610

1400

30000

70

≤70

550

380

1000

1000

400

TSA -1100(40")

1000

600

1400

32500

70

≤70

750

380

1100

1100

400

TSA -1220(44")

1100

460

1400

38000

73

≤70

1100

380

1220

1200

400

TSA- 1380(50")

1250

439

1400

44000

56

≤70

1100

380

1380

1380

400

TSA -1530(56")

1400

325

1400

55800

60

≤70

1500

380

1530

1530

400
























Details for your reference as follows




 China poultry farm air ventilation fans with siemense brand motor Fan blade is made of Krupp stainless steel by punch forming. No dust, attractive and durable. Special bales shap design ensure large air volume, no deformation, no broken, keep air volume same all the way
 China poultry farm air ventilation fans with siemense brand motor Both Chinese famouse brand Siemense motor for option. Motor voltage and frequency can be customized made. With phase lack protection device. It will be power off, when lack of electricity. Motor protection grade: IP55. Class: Grade F.
 China poultry farm air ventilation fans with siemense brand motor Fan bearing adopts imported double-rows bearing with special waterproof design, water can not enter. High strengh, lower noise, maintenance free and long service life.
 China poultry farm air ventilation fans with siemense brand motor Fan belt pulley is made of high strength aluminum-magnesium alloy by die-casting whitch reduces the weight of blade impeller complete, high corrosion resistance. Special reinforced ribs pulley design. Blast- sanding treament for attractive appearance, eliminate interal stress to improve its own rigidity and stability. Never broken.
 China poultry farm air ventilation fans with siemense brand motor High strengh nylong swung drop hammer opening device to ensure the shutters opering and closing flexible.

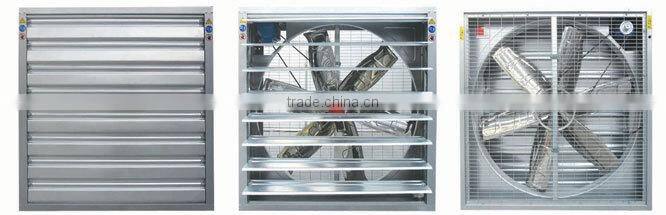

Pictures show:



China poultry farm air ventilation fans with siemense brand motor
