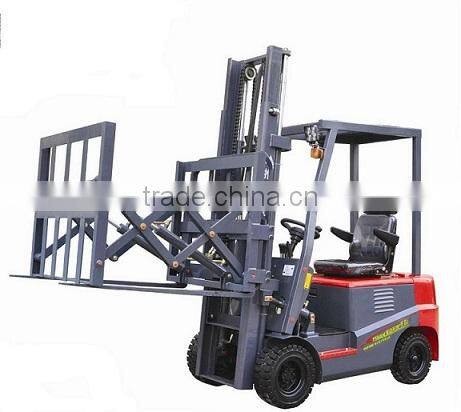

0.8 ton Mini Electric Forklift with ce and iso ,Forklift Truck
1.Main Technical Parameters
| Model | unit | CPD80 |
| power type | / | battery operated |
| operating mode | / | seat type |
| rated load | kg | 800 |
| maximum lifting height | mm | 2500 |
| minimum turning radius | mm |
12 1500 |
| door frame tilt angle | deg | 6/12 |
| lift speed(full/empty) | mm/s | 270/450 |
| descend speed | mm/s | 480 |
| driving speed | km/h | 14 |
| load center distance | mm | 500 |
| turned way | / | electrical power steering |
| weight | kg | 1500 |
| lift motor power | kw | 2.0 |
| drive motor power | kw | 2.0 |
| braking system | / | hydtaulic brake |
| minimum ground clearance | mm | 100 |
| vehicle length | mm | 1950 |
| vehicle width | mm | 860 |
| vehicle height | mm | 2050 |
| wheel base | mm | 1100 |
| tread base(front/rear wheels) | mm | 730/725 |
| front tire | / | 16*16-8 |
| rear tire | / | 15×4½-8 |
| battery | v/ah | 12v/140Ah×5 |
| working hours per full charge | h | ≤9 |
| charging machine input voltage | v | 220v |
| every time charging time | h | 8 |
| climbing ability | % | 20 |
2.Brief specification
1.Mini electric forklift with small turining radius of 1500mm which can pass through 860mm width aisle
2.No pollution,energy efficiency and environmental protection
3.Super low cost.Power consumption:6kwh per day.
4.Own 22 national patents,more competitive and imitation is prohibited.
5.Different attachments for option.
3.Additional remarks
Light and compacts smart two-stage charging,mobile easy effort,practical,220v AC input voltage charging in different locations,stable performance,easy operation.

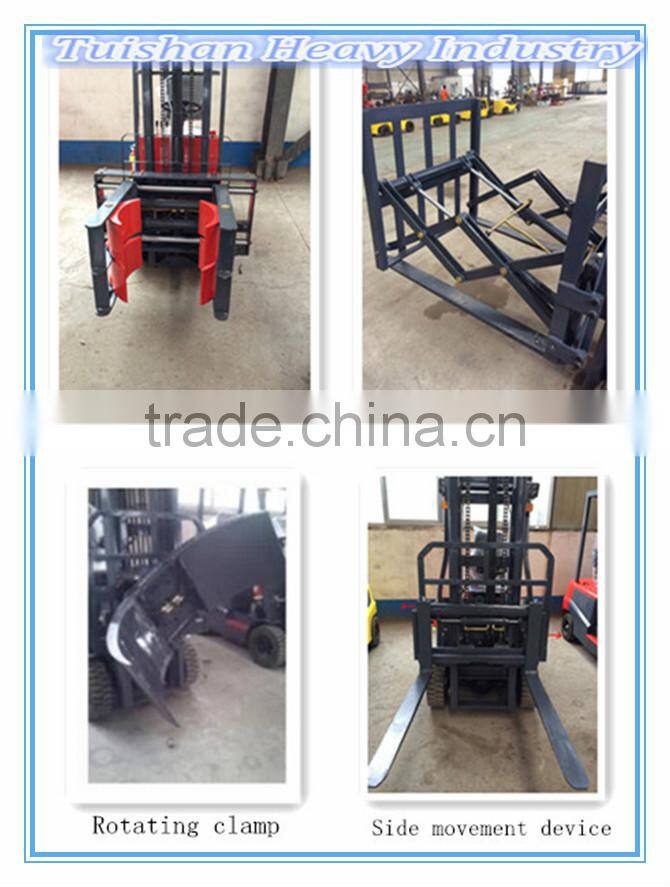

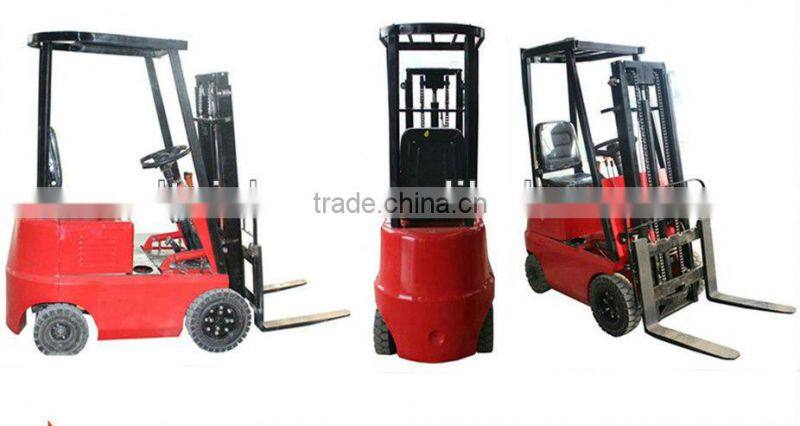

4.Forklift details
5.Main certificate

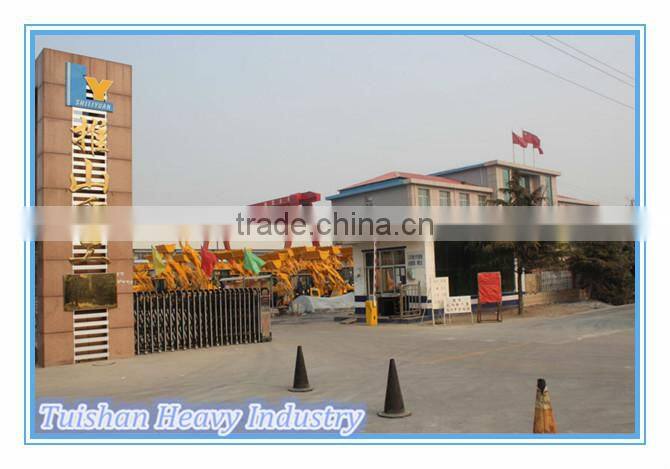

6.Company information
Qingzhou Tuishan Heavy Industry Machinery Co., Ltd. is located in Qingzhou City which is a long history city with beautiful scenery and convenient transportation. Jiaoji Railway, Jining Expressway and 309 National Highway pass through Qingzhou with superior environment of geography, communications, information and humanity.
Our company occupies 40000 square meters and the covered area is 18000 square meters. We now have more than 400 workers including 8 senior engineers and 36 professional technicians. We have fixed assets more than 70millon RMB. We are the professional manufacturer with complete production facility and detection device in the field of engineer machinery business. Our main products contain ZLY series wheel loader(910H, 915BH, 918H, 918DH, 918E, 920E, 920B, 925D, 925F, 926D, 926F, 928D, 928F, 930F, 953), 5T, 6T, 7T, 8T, 10T truck crane and underground machine etc. We independent research and develop by adopting the advance technical from the similar machine in home and overseas and combining the structure principle of "Large and medium-sized loader".
Our products are with the characteristics of reasonable structure, attractive appearance, reliable performance, easy operating and convenient maintenance and so on. We get the clients' acceptance and praise due to the reliable performance, high efficiency operation and excellent service. More than 200 sales and service outlets cover all over the country.
