Popular solar electricity generating system for home 300W, self generating power system 300W,self generating power system 300W
- 300 Set / Sets per Month
- Ningbo
- T/T L/C D/P D/A Credit Card PayPal
- Economic price 100w 200w 300w 400watt ABS Housing Solar Cell All In One Integrated Solar Street Light
- Wall Mounted Lifepo4 51.2v 100ah 200ah Lfp battery for Solar System
- 10kwh 20kwh Home Solar Lithium 48v 200ah LiFePO4 Battery
- Residential 5kw Complete Solar Panel Kit For Home Solar Power System With Lithium Or Lead Acid Battery
- Home Hybrid Solar 10KW 40KW 50KW Whole Set Kit Solar Energy System Home Hybrid Solar Power System
- TENTEK TON-5150S stackable solid-state Lithium battery
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | Inyan | Model Number: | ISS300Z-65 |
Specification: | Normal | Application: | Home | Output Voltage (V): | DC12V & 5V AC110/220/230/240V |
Load Power (W): | 3W~300W | Solar Power (W): | 100W | Work Time (h): | 8.5hours based on 60W load |
Product Description

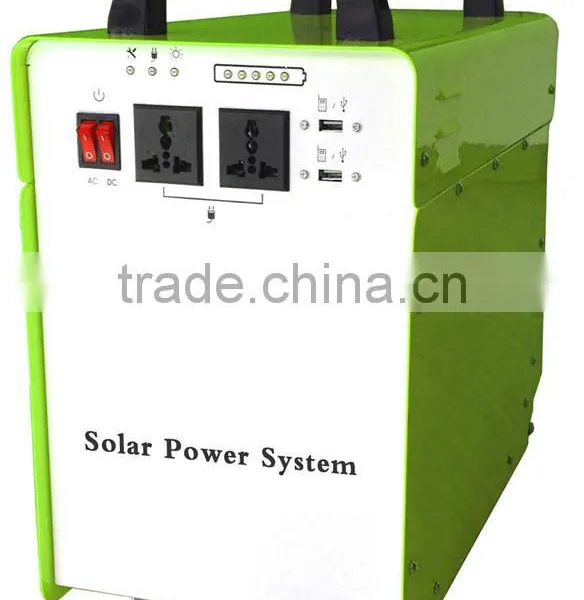

Portable solar power system 300W
Solar electricity generating system for home includes Solar cell modules, solar inverter, solar battery and solar controller. It can be applied to the villa, household, outdoor camping, tourist resorts, prairie areas, remote mountain village, no power suplly areas, farms, villages, farm, hills, island, highway and any regions to generate electricity. Use very widely. It can charge for Cell phones, notebook computers, lights, digital camera, fans, TV set, electric tools, music CDS, DVDS, electric power, such as voltage in 110V/220V/230V/240V 50Hz/60Hz.
Product Feature:
E 300W solar home system does not produce pollutants, without noise, create a green, clean, comfortable living environment.easy to install and operate, without the laying of cables, or destruction of building structures.Small in volume, light in weight and easy to carry.
Main Function:
1.Digital indication of working model
2.LED indicator of the working condition of charging and discharging
3.LED indicator of electric quantity
4.Overloading protection
5.Short cricuit protection
6.Reverse discharge protection
7.Reverse polarity connection protection
8.Over discharge protection
9.Over charge protection
10.AC & DC outputs
11.Suitable for household lighting, TV, fan, radio, computer and so on.
12.Not suitable for Capacitive load ,as electric motor, refrigerator, air conditioning, Microwave and ovens.

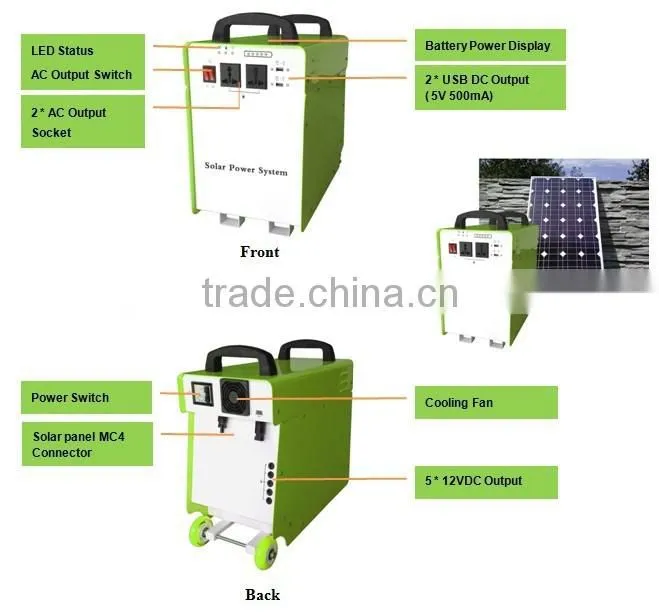

Connecting drawing of the system:
Technical Parameters of the system ( solar home lighting system )
Model: | ISS300Z-65 | ISS500Z-85 |
System Specification: | ||
Rated Output Power: | 300W | 500W |
Solar panel power: | 18V 100W Poly | 18V 100W Poly |
Solar charge controller: | 12V 10A | 12V 10A |
Solar inverter: | 110V/220V/230V 300W | 110V/220V/230V 500W |
Output waveform: | Pure sine wave | Pure sine wave |
Solar charging time: | 5.5 hours(effective sunlight) | 7.2 hours(effective sunlight) |
Battery capacity: | 12V 65Ah lead acid | 12V 85Ah lead acid |
AC Output: | 110V/220V/230V/240v 50/60Hz | |
AC Output Socket: | 2*AC outlets (Universal British German French Australian American) | |
DC Output: | 2*5V(500mA) USB 5*12V output | |
Peak inverter efficiency: | 92% | 92% |
Overload Protection: | Yes | Yes |
Under-voltage Alarm: | Yes | Yes |
Overheat Protection: | Yes | Yes |
Short-circuit Protection: | Yes | Yes |
Battery Power Indicator: | Yes | Yes |
External Battery: | No | No |
Certificate: | CE & RoHS | CE & RoHS |
Mechanical Data: | ||
Dimensions of System Box(mm): | L450*W230*H430mm | L450*W230*H430mm |
Net Weight of System Box(kg): | 30 (with battery) | 37 (with battery) |
Appearance Color: | White + Green | White + Green |
Dimensions of Solar Panel (mm): | L1120*W678*H35mm | L1120*W678*H35mm |
Net Weight of Solar Panel (kg): | 12.5kgs | 12.5kgs |
Dimensions of Battery (mm): | L350*W166*H175(175)mm | L331*W173*H219(224)mm |
Net Weight of Battery : | 20.5kgs | 28kgs |
Product Warranty: | ||
Solar Panel: | 10 years (lifetime: around 25years, 90% output power at first 10 years, 80% output power at second 10 years) | |
System Power Box: | 2 years | 2 years |
Battery: | 1 year | 1 year |
Daily maintenance of battery:
Lead acid battery is used for our system which asks for timely charging after discharge. Charge the product once per month in case of unused for a long time to maintain perfect performance. Please change the battery every 350 discharge (it would be less than 350 due to improper use) or after using of more than 1~2 years.
Loads and Service Time Reference:
Product Model | ISS300Z-65 | ISS500Z-85 | |
Electric Appliances & load power | Duration of single load | ||
LED Lights | 5W * 5 | About 20H | About 26.5H |
CFL | 11W * 10 | About 4.5H | About 6H |
Incandescent bulbs | 75W * 4 | About 1.7H | About 2.2H |
29" LCD TV | 150W * 1 | About 3.5H | About 4.5H |
Fans | 60W * 3 | About 2.8H | About 3.6H |
Washer | 350W * 1 | / | About 1.90H |
Desktop computers | 150W * 2 | About 1.7H | About 2.4H |
Note: Different location, different charging time. Above load power is rated output power. The actual power is much smaller. |
