Good Quality camphor tablet making machine
Contact Informations:
Contact Person: Ms. Amy
Mobile/WhatsApp/Wechat/Line: 0086-18092951870
Skype: amysilkroad
Introduction of tablet press machine :
1.This machine is mini type of press machine; it can press powder, pellet, granule or grain into tablets
2.Feature: it is a small desktop continuous press machine driven by motor or manpower.Only one set of punch and die is mounted,The depth of filling material and the thickness of the tablets can be adjusted.
Application of tablet press machine :
The tablet press machine is suitable for the industries of Chemical, Foodstuff, Electronic and etc. It is used of pressing medicinal tablets,catalysts,sugar tablets,Calcium tablets,Coffee tablets,Powder Metallurgical,Electronic elements and various tablets of pesticide and fertilizer, etc.
Characters of tablet press machine :
1.Saving time and labor, high efficiency and accuracy.
2.Stable working performance and easy operation.
3.Small dimension, convenient portability, and easy operation.
How to use :
1.Before connected to electrical power,the motor should be connected to ground to ensure safety.First, demolition the V-belt,connected to electrical power,starting the motor,observe motor
rotation direction whether correct(Motor shaft rotation direction should be with the protective cover or hand-wheel in the opposite direction of the arrow).If the rotation in the wrong direction,another
separate cable connection.Then make V-belt installed.
2.Unloading punch dies and adjustment of tablet press. a,Installation punch dies.b,Putting out the adjustment. c,The adjustment of filling the depth(tablet weight adjusted). d,Pressure adjustment. e,die demolition.
Parameter of tablet press machine :
Model |
SR-1.5 |
SR-5 |
SR-6 |
Die(sets) |
1 |
1 |
1 |
ure(KN) |
15 |
50 |
60 |
Max.dia.of tablet(mm) |
12 |
16 |
25 |
Max.depth of table(mm) |
11 |
12 |
16 |
Max.thickness of table (mm) |
6 |
6 |
10 |
Production capacity (pc/h) |
4000 |
4000 |
4000 |
Motor(KW) |
550 |
750 |
1100 |
Overall size (mm) |
570*380*630 |
650*440*650 |
650*600*700 |
Weight (mm) |
86 |
125 |
160 |

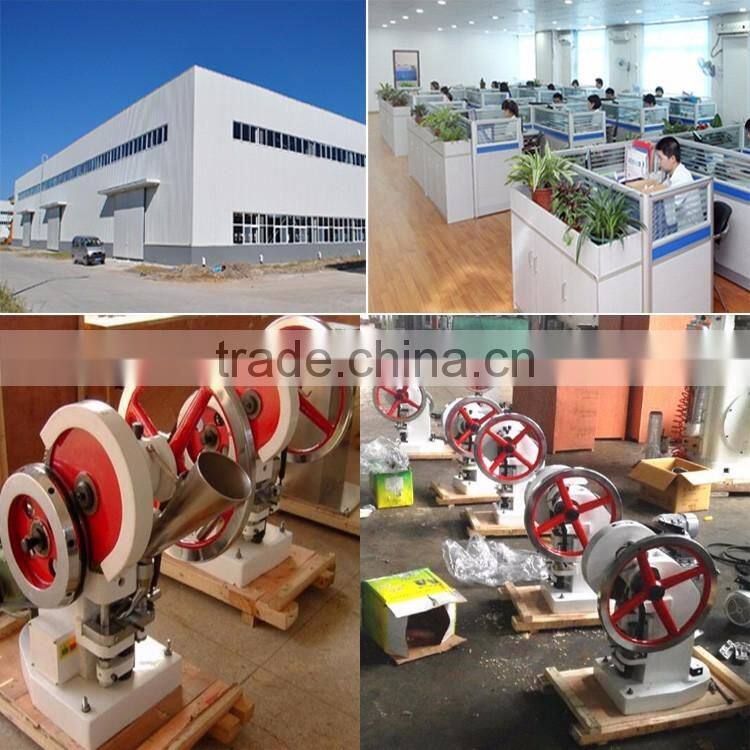

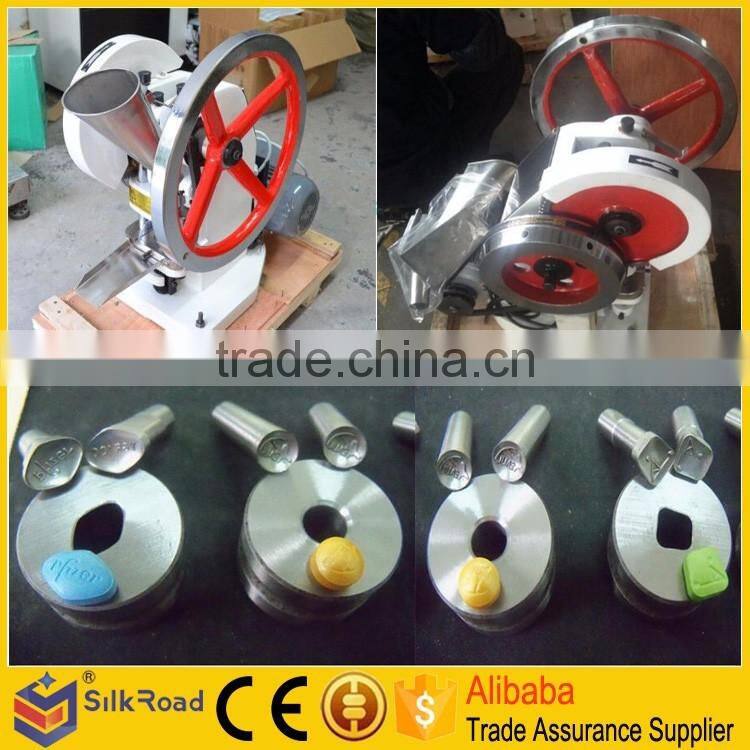

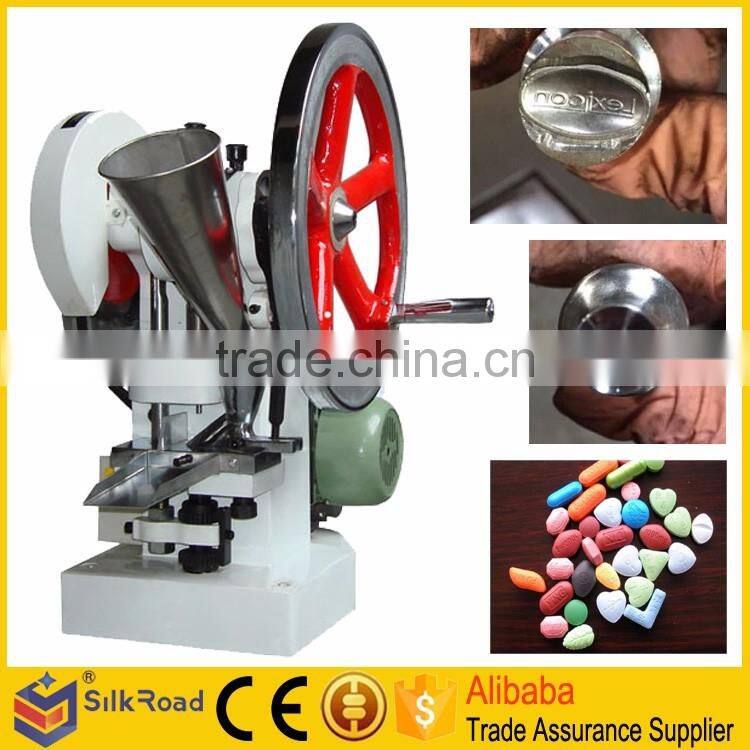

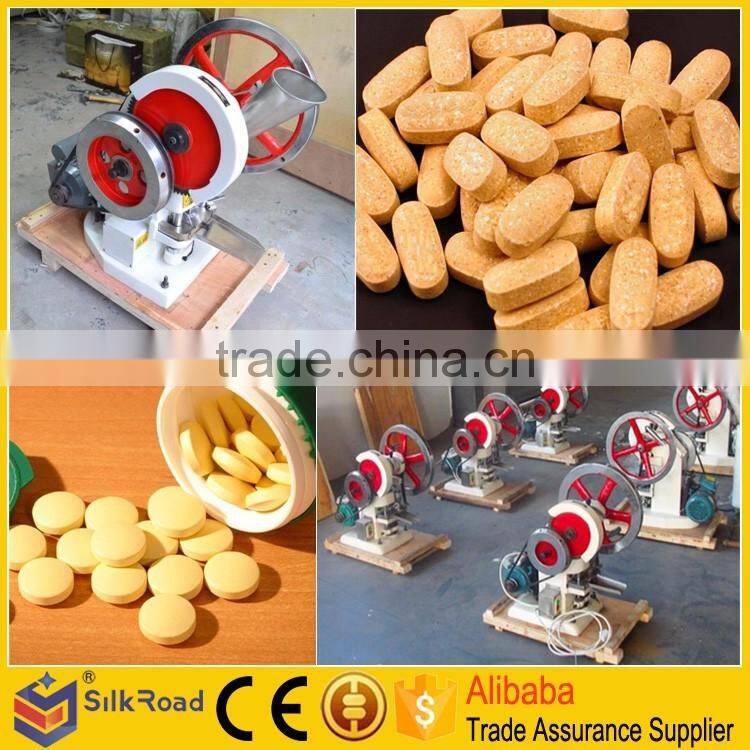

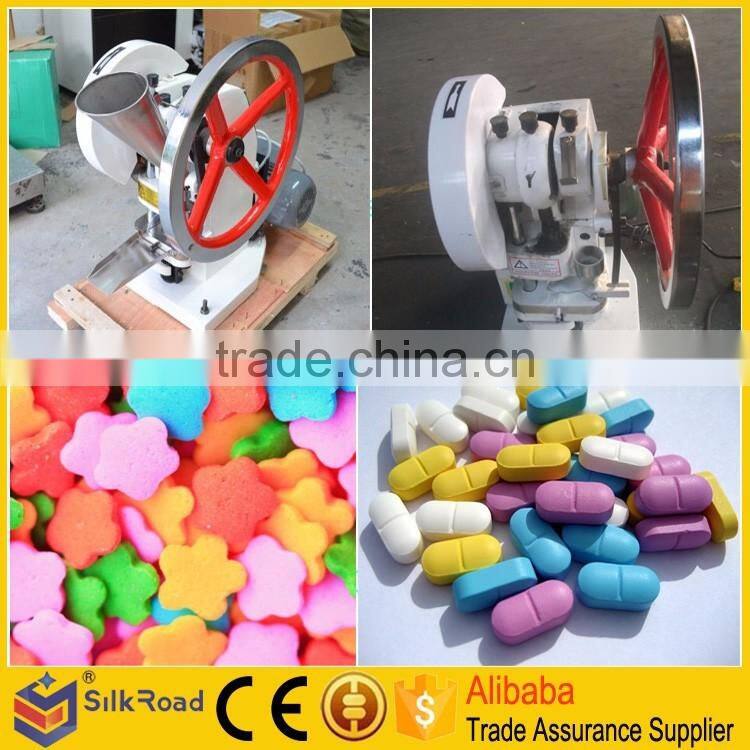

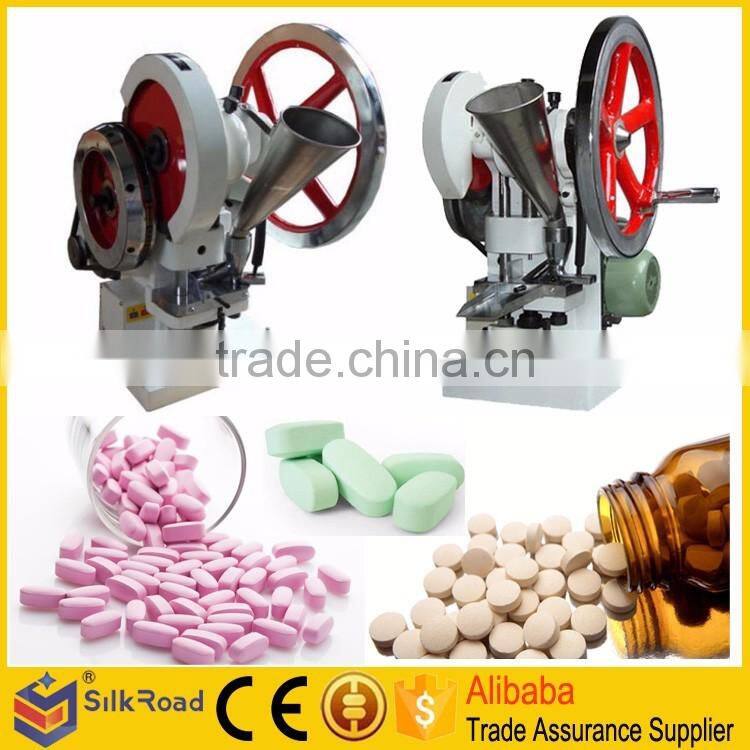

Product show of tablet press machine :

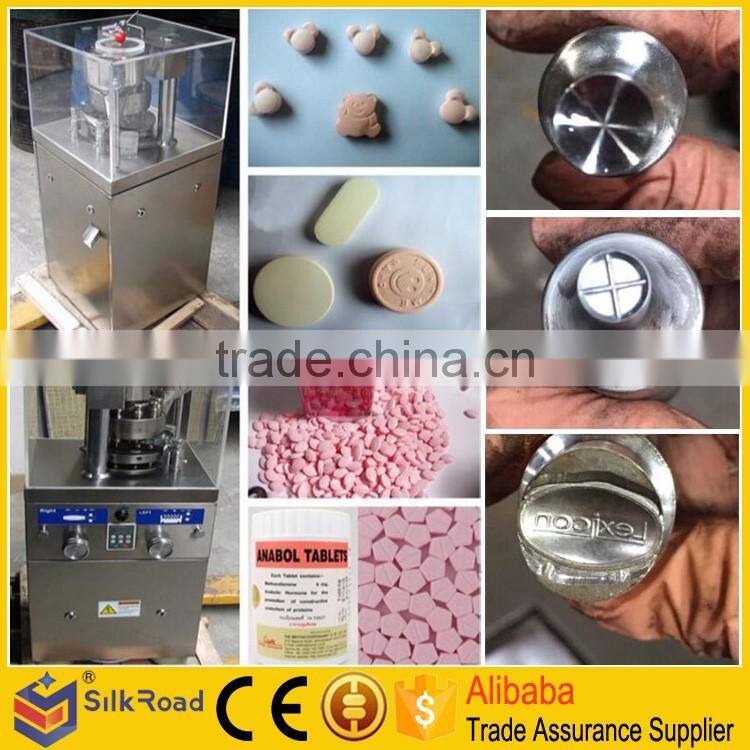

Rotary type tablet press machine :
Technical Parameter :
Model |
5B |
7B |
9B |
Dies |
5 |
7 |
9 |
Max. Pressure(KN) |
40/60 |
40/60 |
40/60 |
Max. dia. of table(mm) |
12 / 24 |
12 / 24 |
12 / 24 |
Max. Depth of fill(mm) |
15 |
15 |
15 |
Thickness of largest table(mm) |
6 |
6 |
6 |
Production capacity(pcs/h) |
9000 |
12600 |
16200 |
Motor(KW) |
1.5 |
||
Overall size(mm) |
480×630×1100 / 480×660×1100 |
||
Net weight(kg) |
180 / 260 |
||
