Professional sawdust briquette charcoal making machine
Contact Informations:
Contact Person: Ms. Amy
Mobile/WhatsApp/Wechat/Line: 0086-18092951870
Skype: amysilkroad
Introduction of Wood Sawdust Briquettes Machine :
1. Raw material can be: Sawdust, tree branches, bamboo powder, sawdust, coconut shell, straw, rice husk, corn cob, peanut shell, vinasse and so on. Our wood briquette machine can make a lot of sizes of charcoal, which can be used for animal food, biomass straw fuel and other related products.
2. Material requirement: Moisture: 8-12%; Size: ≤ 5 mm
3. Working hour: This machine can be work on 16 hours per day.

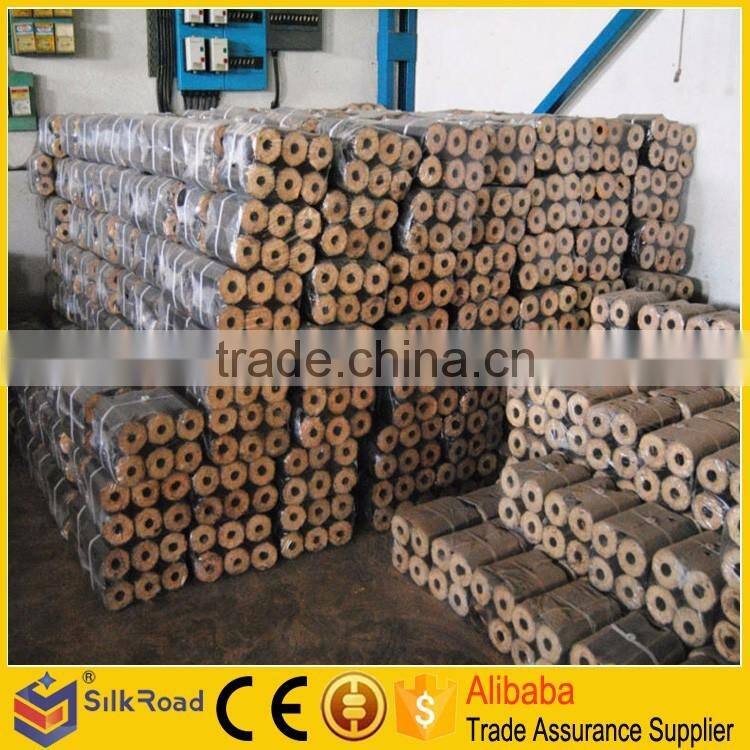

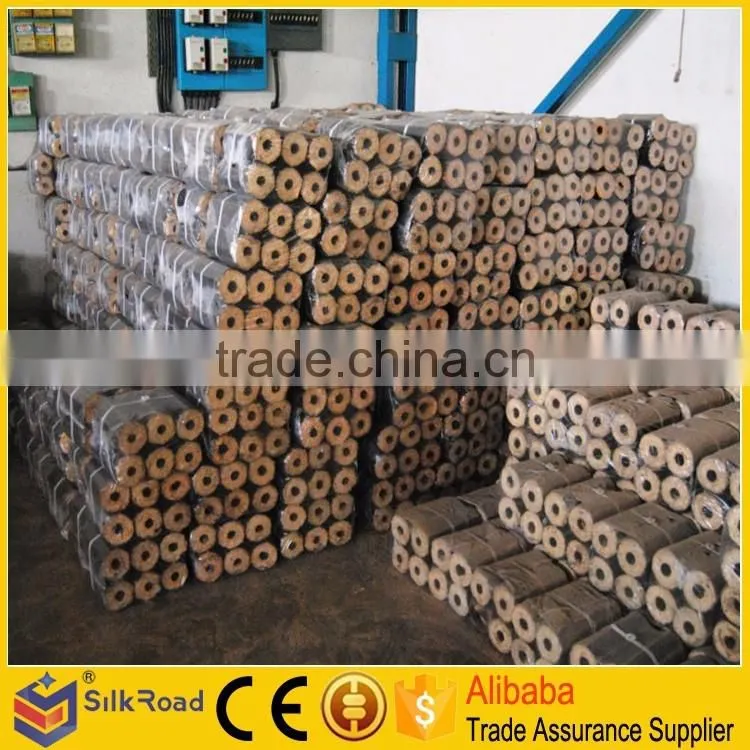

4. Final briquette shape: Hexagon shape, round, cubic, etc. Diameter is 50-80mm with a hole inside. The inside hole diameter is usually 15mm. Length of final briquettes can be controlled and adjusted between 300-700mm.
Features of Wood Sawdust Briquettes Machine :
1. Propeller and main components are made by special wear-resistant materials.
2. High capacity, low consumption, high density and durable structure.
3. The final briquette with high density and long burning time.

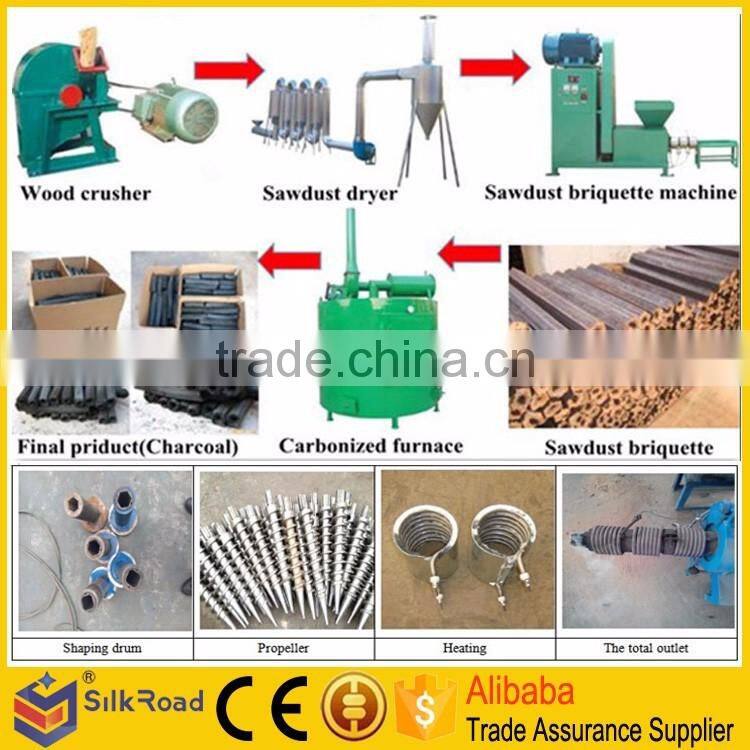

Production line for Wood Sawdust Briquettes Machine :
Biomass materails →Wood crusher( (make thediameter less than 3-5mm)
→Screw conveyor →Dryer equipment (make themoisture is less than 12%)
→Screw conveyor→Wood charcoal making machine→ Carbonization furnace→ Mechanism charcoal
Technical parameters of Wood Sawdust Briquettes Machine :
Model |
SR-50 |
SR-60 |
SR-70 |
SR-80 |
Output (kg/h) |
220-300kg/h |
180-200kg/h |
200-250kg/h |
220-300kg/h |
Motor Power |
11-22kw |
15kw |
18.5kw |
22kw |
Weight |
650-800KG |
650KG |
750KG |
800KG |
Overall Dimension |
1.78×0.66×1.53m |
1.7×0.66×1.5m |
1.75×0.66×1.5m |
1.78×0.66×1.53m |
Spare parts of Wood Sawdust Briquettes Machine :
1. Heating ring:
The heating ring is made of stainless steel, and inner is the electric heating wire. The role of heating ring is to make the surface of briquette rods hardening. Each charcoal making machine has three heating rings, and its working temperature is 350 celsius degree.

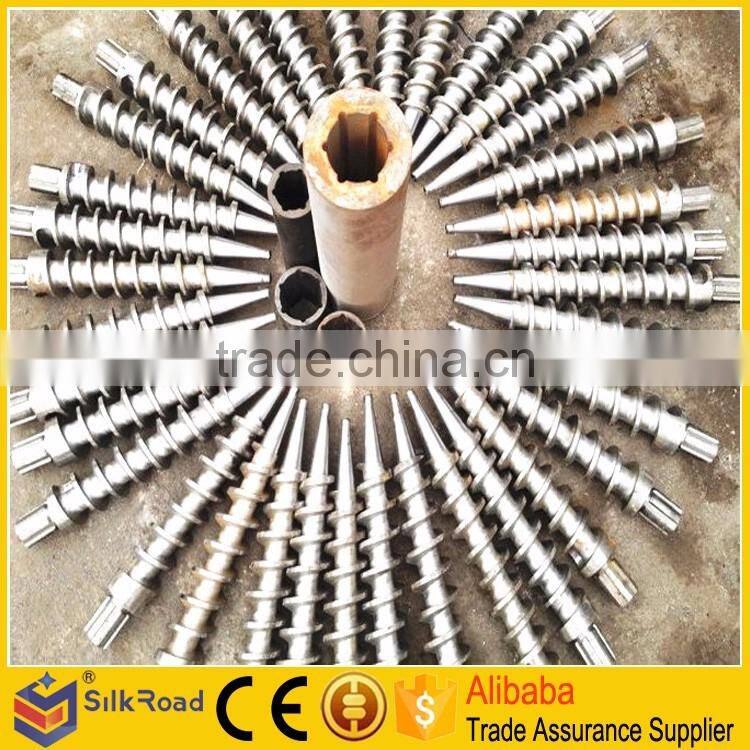

2. Propeller:
Propeller of wood chip briquette making machine is to push the raw materials for briquetting.
3. Shaping Drum:
Each charcoal making machine has one shaping drum

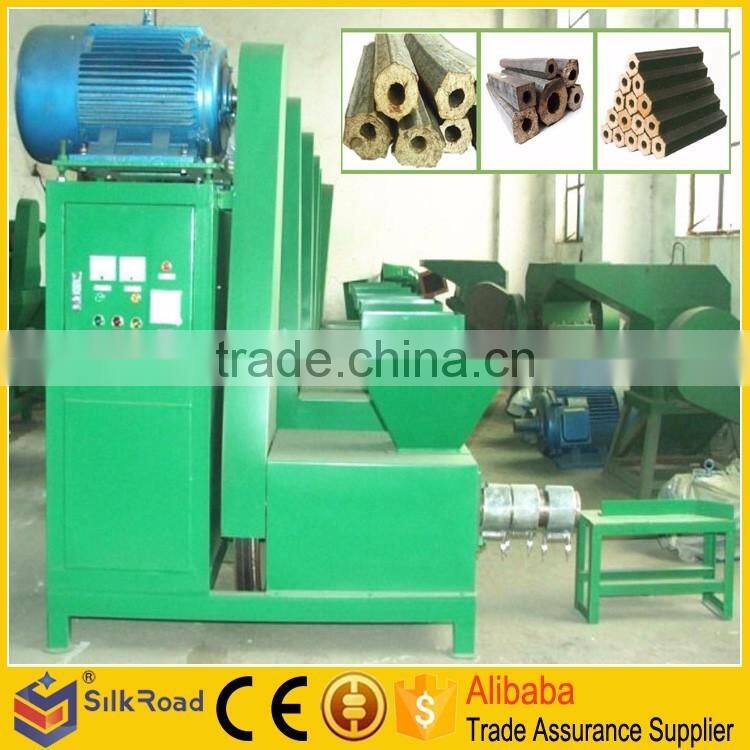

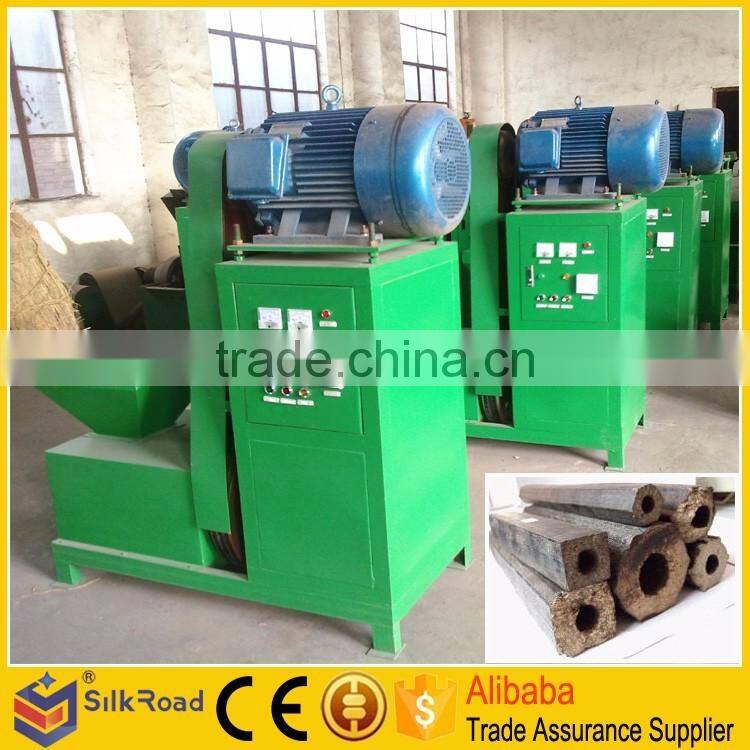

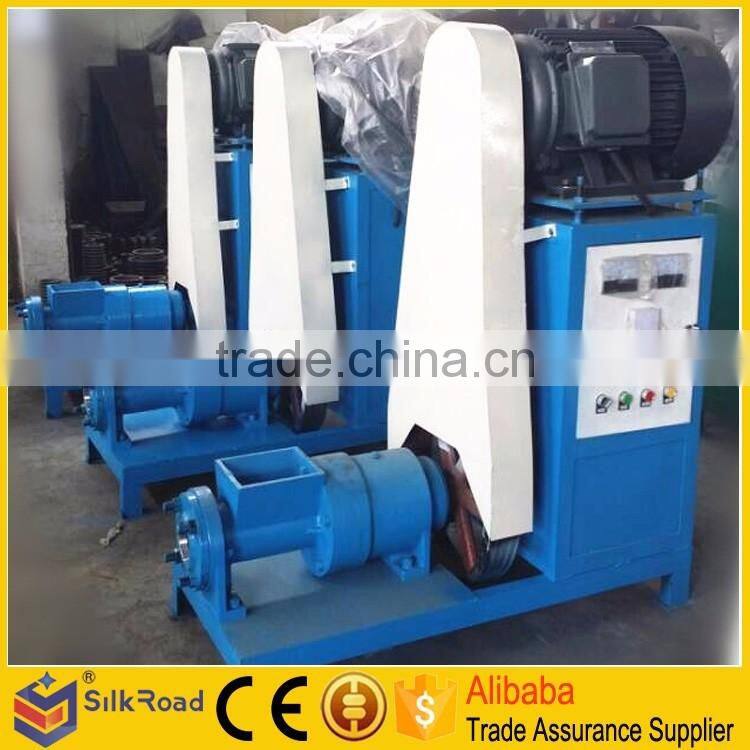

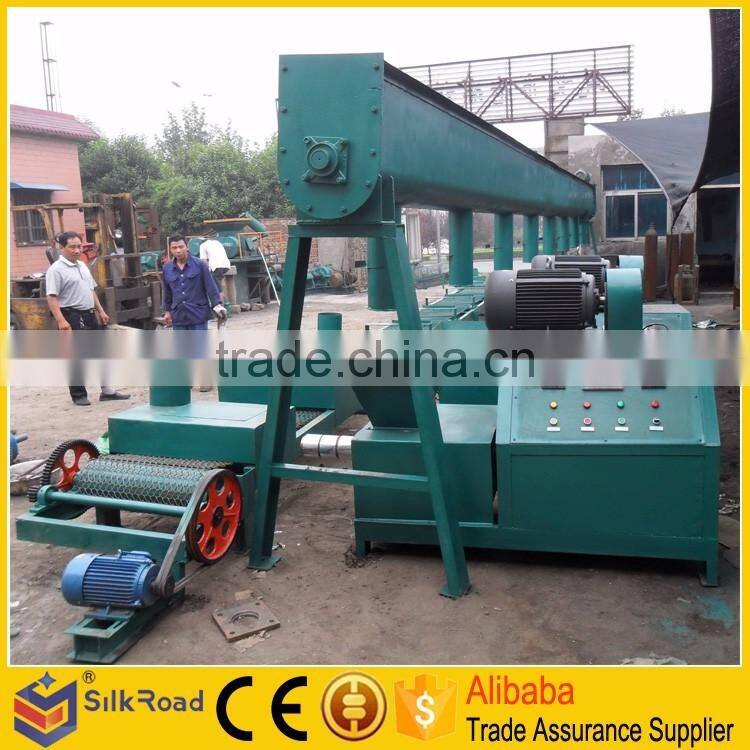

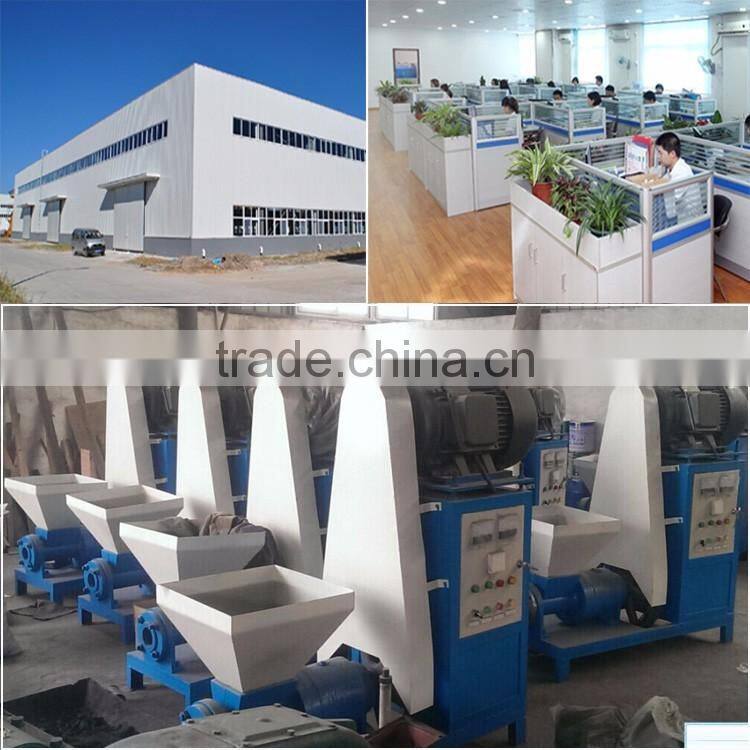

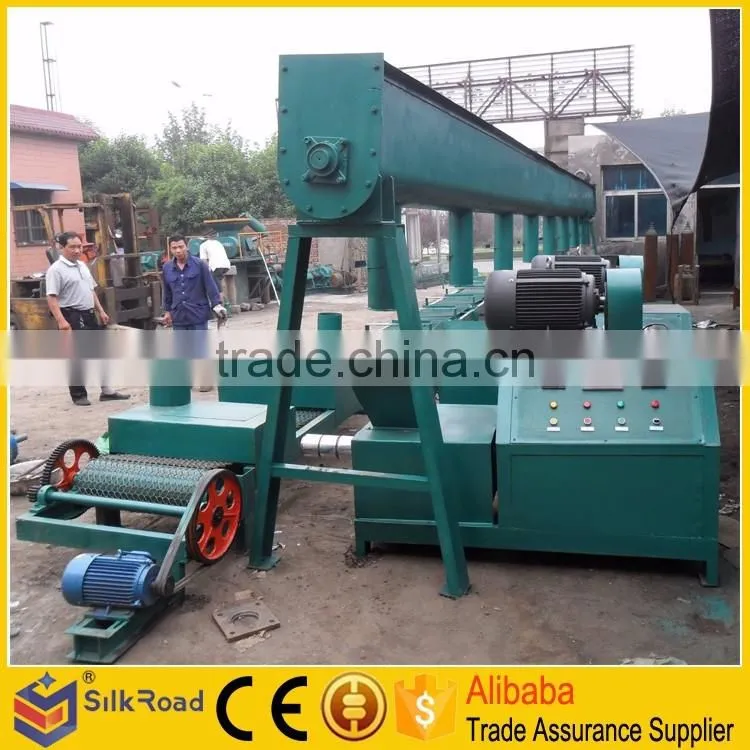

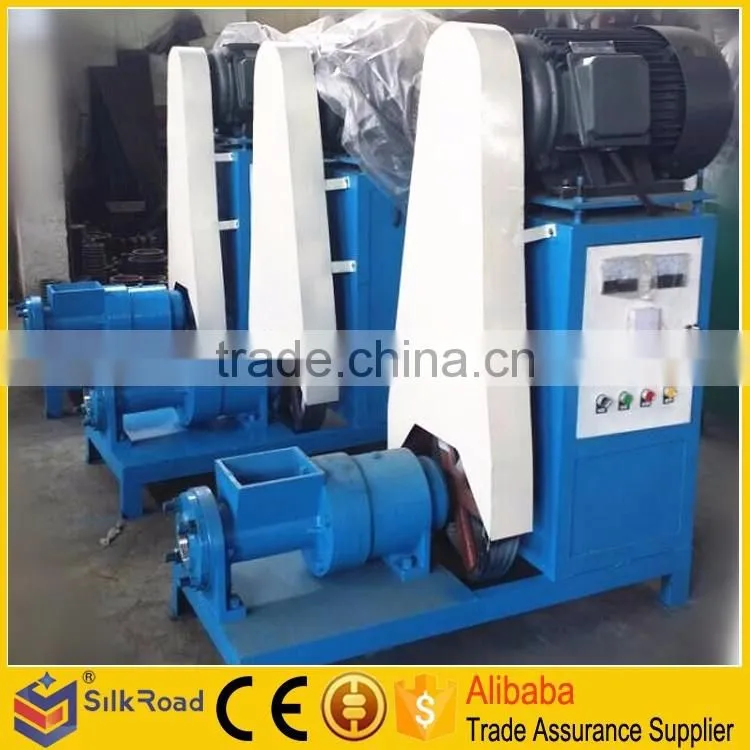

More photos of Wood Sawdust Briquettes Machine :
