Cheap and Long Working Life Industrial Dust Collector

Cheap and Long Working Life Industrial Dust Collector photo-1
Cheap and Long Working Life Industrial Dust Collector photo-2
Cheap and Long Working Life Industrial Dust Collector photo-3

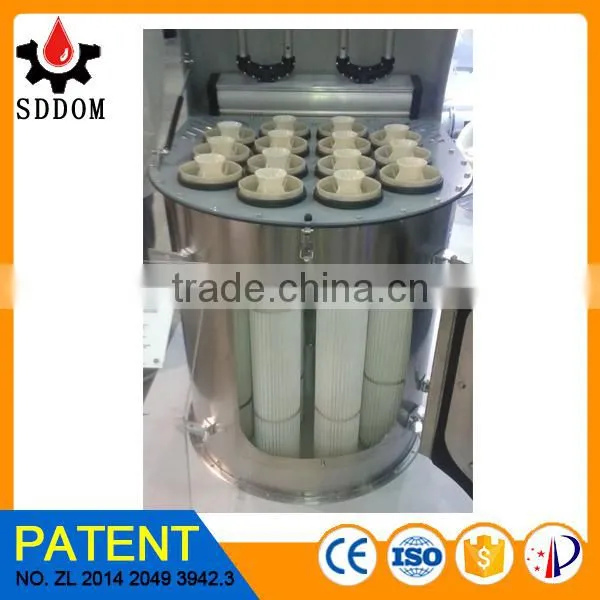

Cheap and Long Working Life Industrial Dust Collector photo-4
US$ 600 - 1,850 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, air jet type and vabrating type
Efficiency:
99.9%
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port of China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Other, air jet type and vabrating type
Efficiency 99.9%
Minimum Particle Size 0.5 Micron
Place of Origin Shandong, China
Brand Name DOM
Model Number RF
Dimension(L*W*H) Customized
Weight 100kg
Certification CE&ISO
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

Cheap and Long Working Life Industrial Dust Collector

Cheap and Long Working Life Industrial Dust Collector

Features

 Maintenance height = 1,080mm



• High filtration efficiency low dust emission level

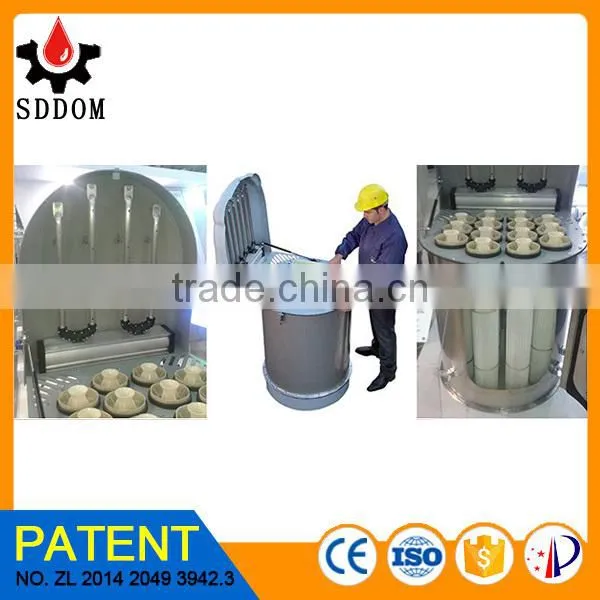

• Maintenance easy



• No tools required for filtering element removal. Complete replacement of filter media by only one person within a few minutes

Type

 There sre 3 types dust collector:

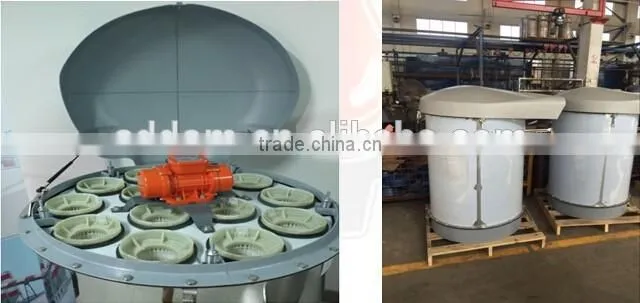

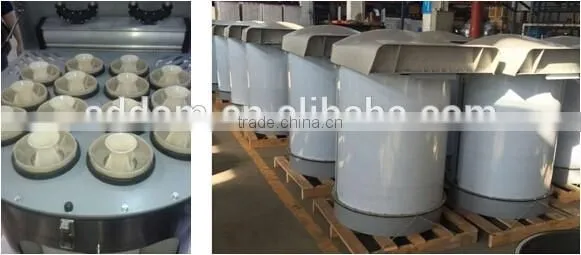

No.1 Vibrating type

Cheap and Long Working Life Industrial Dust Collector

Vibrating type is used on top silo.Dust separated from the air flow by filter elements drops back into the silo after vibration.

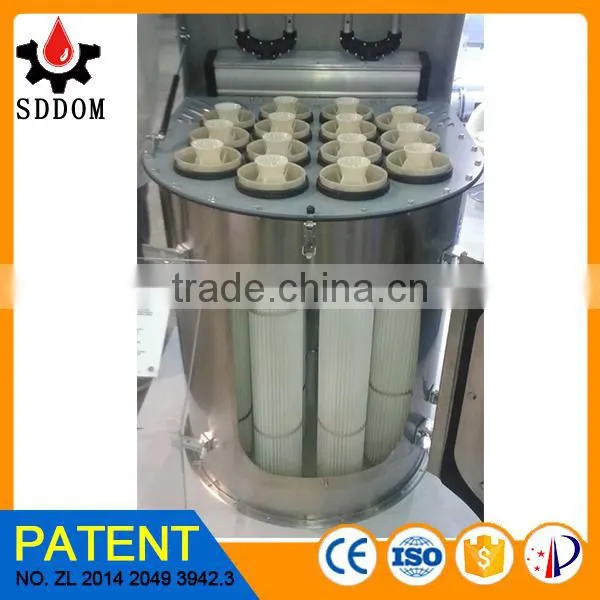

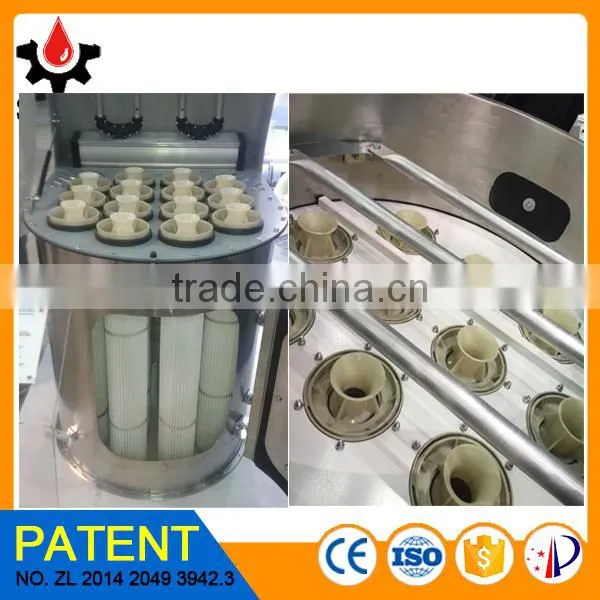

No.2 Air-jet type

Cheap and Long Working Life Industrial Dust Collector

Dust separated from the air flow by filter elements drops back into the silo after an integrated automatic reverse air jet cleaning system inside the weather protection cover has removed it from the filter elements. The air jet cleaning system is integrated in the hinged weather protection cover.It is used on ground.

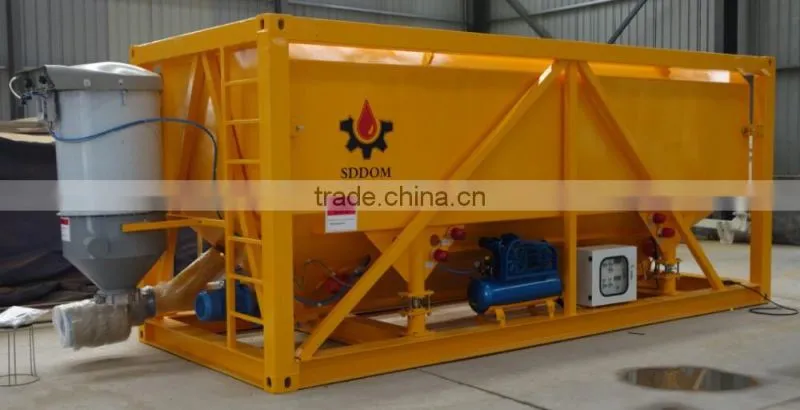

No.3 Dust collector with blower and dust collector hopper

Dust separated from the air flow by filter elements drops back into the dust collector hopper after an integrated automatic reverse air jet cleaning system inside the weather protection cover has removed it from the filter elements. The fan system provide negative pressure which help to keep air filtration more efficient.

Note:Vibrating type and air-jet type both can add blower and dust collector hopper.

Technical data

Product model

SV-V2

SV-J1

Filtration area

24m2

24m2

Wind capacity

1500m3/h

1500m3/h

Filtration efficiency

above 99.9%

noise

Lower than 85dB

 lower than 75dB

Cleaning method

Vibration cleaning intermittent working way

Pulse air-jet cleaning continuous working

Compressed air



4-6 bar

Control panel power

380V/50Hz

220V/50Hz

Structure

Stainless steel

Connecting way



Flange connection

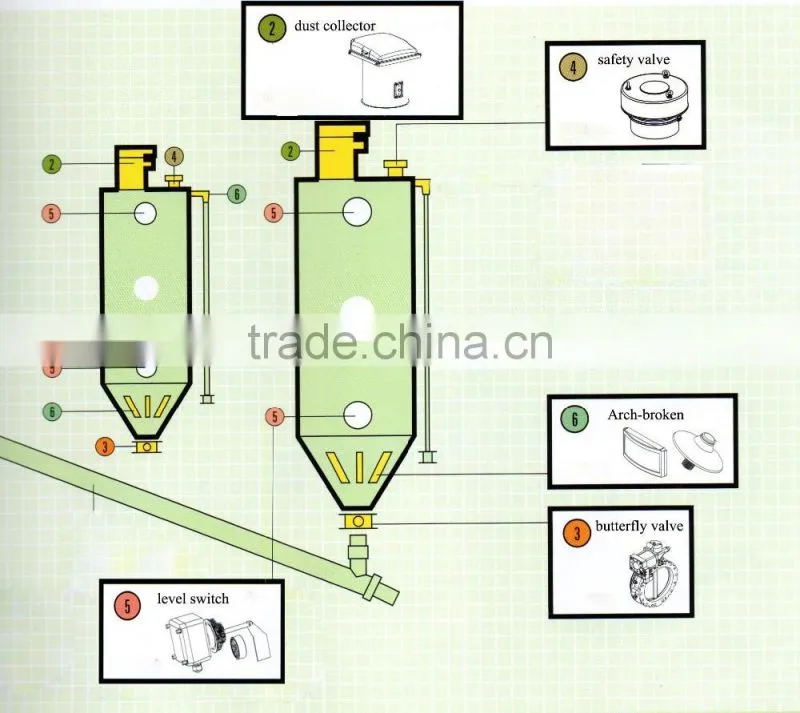

Cement system

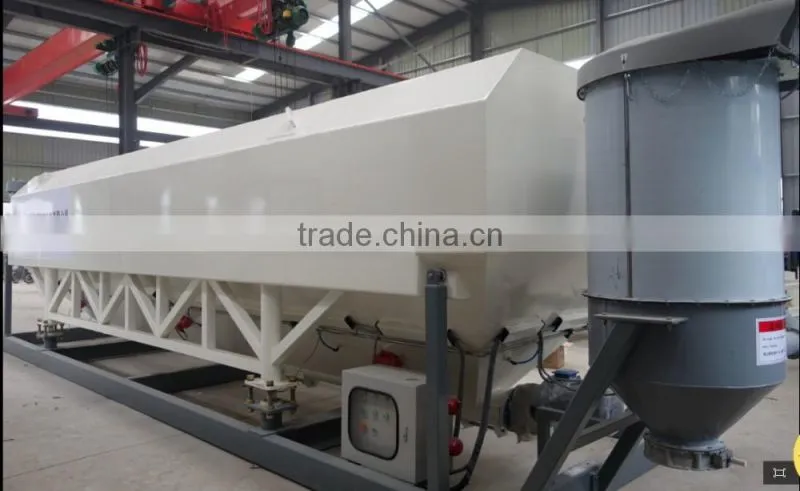

Cheap and Long Working Life Industrial Dust Collector

Used on cement silo

Cheap and Long Working Life Industrial Dust CollectorCheap and Long Working Life Industrial Dust Collector

Our service

Cheap and Long Working Life Industrial Dust Collector

Trading Process

Cheap and Long Working Life Industrial Dust Collector

About US

SDDOM Our company is developing rapidly now. We have made CE certification qualification. We have clients all over the world, such as Lithuania, Russia, Australia, Singapore, Belarus, Mozambique, Philippines etc, and won the trust of the customers with high quality and good reputation.

Cheap and Long Working Life Industrial Dust Collector

CUSTOMER VISITING

Cheap and Long Working Life Industrial Dust Collector

Welcome to Visit our facotry
