Home > Products > MB Wheels Mobile Concrete Batching Plant > Mobile Concrete Batching Plant, Concrete Mixing Plant

Mobile Concrete Batching Plant, Concrete Mixing Plant

FOB Price

USD $39,000 - $72,000 / Set

1 Set(Min.Order)

Supply Ability 10 Set / Sets per Month
Port Qingdao
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Power Type	Electric
Place of Origin	Shandong, China	Brand Name	DOM
Model Number	MC1200,MB1200,MC1500,MB1500,MC1800,MB1800	Power(W)	30~60KW
Dimension(LWH)	6.5mx2.5m	Weight	8.5T
Certification	CE ISO	Warranty	12 Months
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Mobile Concrete Batching Plant

Patent No. ZL201420493942.3

CE Certificate No. EC.1282.0E140523.SDMQS69

Brief Introduction

The mobile concrete batching plant is designed according to Europe CE Standard. It solves the problems of installation, transport and limited working space of traditional concrete batching plant.

Container transport, No need of foundation, Changing working site anytime, Working on site, Fully Automatic, Saving cost and protecting the environment.

	MB Wheels Type Mobile Concrete Batching Plant
	MC Legs Type Mobile Concrete Batching Plant
	MD Four-Bins Mobile Concrete Batching Plant

Model	MB1200	MB1500	MB1800
Capacity	10-17 M3/H	15-26 M3/H	28-35 M3/H

Model	MC1200	MC1500	MC1800
Capacity	10-17 M3/H	15-26 M3/H	28-35 M3/H

Model	MD1200	MD1500	MD1800	MD2200
Capacity	13-17 M3/H	18-27 M3/H	30-38 M3/H	40-45 M3/H

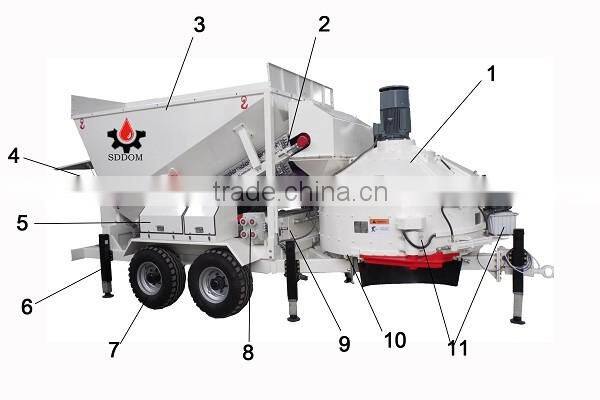

Features

1.Mixer
2.Sand belt conveyor, Stone belt conveyor. Five layers of Nylon.
3.Aggregate bins. One for sand, one for stone, Volume 3.5m3 per bin.
4.SIEMENS/Schneider Control Cabinet. Full automatic
5.High Pressure Cleaning System
6.Supporting legs
7.Tire
8.Air plugs
9.Water pump, Additive pump
10.Toledo Weighing Sensor
11.Hydraulic discharging system

1. SIEMENS Touch

2. Selection button of Automatic / Manual

3. Manual control area. There is no need to control them under “Automatic”.

4. Indicator & Alarm Light

5. Emergency stop

6. Power Switch

7. Printer

Different formulas can be save / set up according to requirements.

USE of concrete batching plant

Complete mobile concrete batching plant

Complete mobile concrete batching plant is combined by Cement silo, concrete batching plant and Belt conveyor. There are six types of cement silo waiting for your choice. Customization is acceptable in our factory.

About US

SDDOM Our company is developing rapidly now. We have made CE certification qualification. We have clients all over the world, such as Lithuania, Russia, Australia, Singapore, Belarus, Mozambique, Philippines etc, and won the trust of the customers with high quality and good reputation.

CUSTOMER VISITING

Welcome to Visit our facotry

FAQ

Q: How many types of mobile concrete batching plant you have?
A: Four types, MB/MC/MD/YHZS. YHZS is traditional one, the others are our patent products. We also have stationary concrete batching plant.

Q: Is the belt conveyor necessary?
A: No. The discharging height of concrete batching plant is 1m. If your discharging height is higher, the belt conveyor is necessary. It can reach 3.5/3.8/4.0 meters.

Q: Can I move the complete concrete batching plant?
A: Yes, MB is wheels type concrete plant, wheels type cement silo, wheels type belt conveyor are all provided.

Q: How can I supply water / additive?
A: There is water tank on MB1200/MC1200. The water source / water tank is necessary on working site for other models.
Q: Can all the equipments be put in container? How many days does it need to install?
A: Yes, my friend, it's one advantage of our mobile concrete batching plant, 120/1500/1800 all can be put in container. 1 day is enough for installation.
Q: Do you have CE certificate for your concrete batching plant / cement silo?
A: Yes, we have. Both are our patent products, certificated by CE.

If you have any questions, just leave a message below.

You can also contact us by email or skype.
