China manufacture wholesale custom cement silo,cheap cement silo structure
Horizontal Cement Silo
Advantages:
1. Steel material , anti-rust and anti-corrosion, waterproof and moisture-proof. Long working service life
2. High reliable working performance and easy to move
3. Leading professional designer and manufacturer
4. We accept customized order, can design and manufacture according to customer's special requirement.
Introduction of main parts

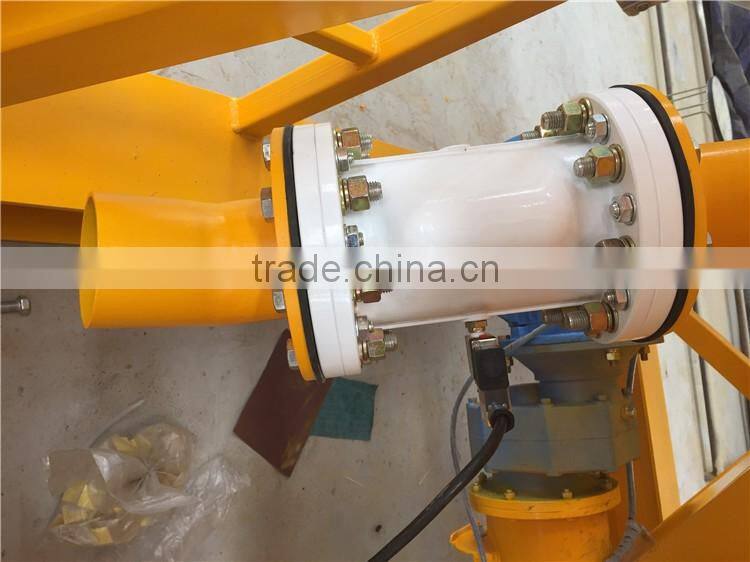

1. Pneumatic Pinch Valve
| Tube materia | Natural rubber |
| Environment temperature | -20℃ ~ +80℃ |
| Working pressure | 3.5bar |
| Weight functions | 10.2kg |
| Functions | 1. prevent the moist air to come into silo 2. prevent the backflow of cement 3. It will open and shut down automatically according to the pressure,so it can make sure the safety. |
2. Maintance hole
maintenance door on the top.

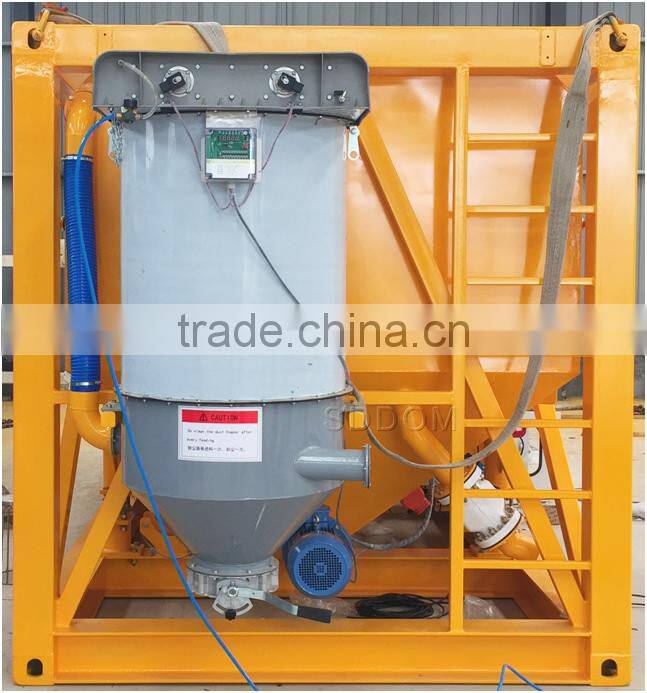

3. Dust collector
Type : Air jet type Filtration area :22m3
Filtration efficiency:>99.9% Wind capacity : >1500m3/h
Two types dust collector, one is vibrator type, one is air jet type.
The filter in vibrator type need to be changed twice a year, the filter in the air jet type need to be changed once a year.

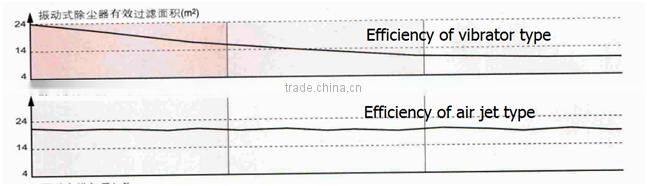

The efficiency of air jet duster collector is higher than vibrator type,

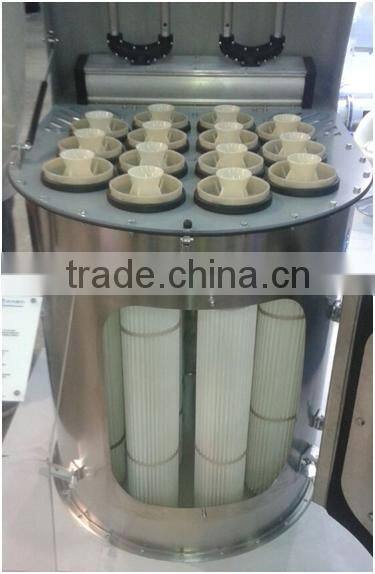

Internal structure and maintenance of air jet dust collector

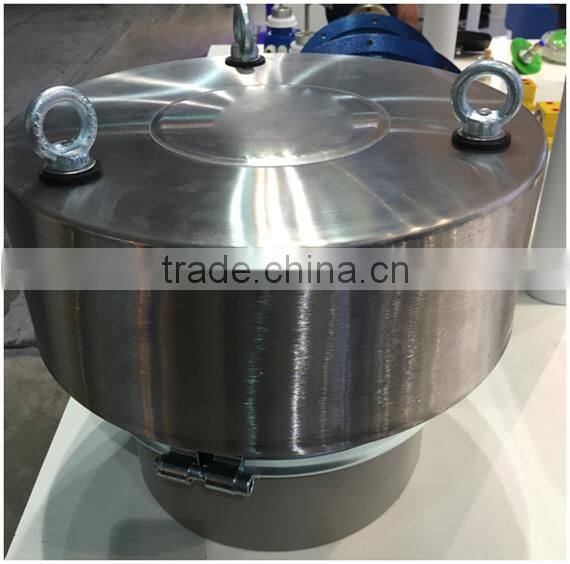

4. Pressure relief valve
Each silo body has one pressure relief valve.
Function: Ensure the balance of pressure inside and outside of silo.
When feeding cement into silo, discharging cement from silo, the pressure inside will be changed rapidly. Safety valve will be opened automatically When the pressure is increased or decreased, after the pressure is balanced, the safety valve will be closed automatically.
Positive pressure: 280 to 1000mm H2o 1 mmH2O=9.80665 Pa
Negative pressure: -20 to -120 mmH2o
5. Vibrator
There are 12 vibrators on the silo.
Cement is easy to harden in the silo, vibrator will break the harden part of cement, ensure the work of cement silo.
6. Level Display Sensor
There are 8 Level display sensors on the leg, they can tell you how many cement left in the silo. You can decide when to feed cement.
7. Conveyor
The horizontal screw conveyor will convey cement out of silo.
Diameter:219mm Capacity: 0 degree 45t/h
Slant screw conveyor(optional)
It will connect with horizontal screw conveyor, convey cement into mixer or other equipments. The slanting screw conveyor is not included in the quotation, its length need to be confirmed by your project.
8. SIEMENS/Schneider Control cabinet
The electric parts is SIEMENS/Schneider.

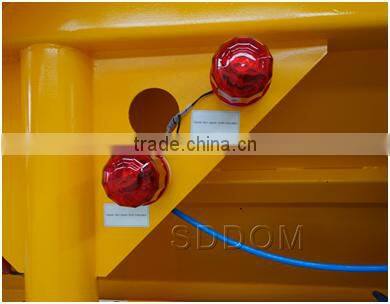

Indicator light
Indicator lights will tell you the working condition of cement silo.
Alarm when the cement is full/empty.
Alarm when there is something emergency.
9. Air compressor (Power:2.2 KW)
Supply power to pneumatic butterfly valve, air jet dust collector.
10. Pneumatic butterfly valve
Diameter:300mm
Three pneumatic butterfly valves are
between the 2 silos .
It has good flow control characteristics.
1.Technical files service provided
2.On-site training service provided.
3.Spare parts replacement and repair service provided
4.Our Products can be customized according to clients' different requirement.
5.Technical support online service provided.
SDDOM Our company is developing rapidly now. We have made CE certification qualification. We have clients all over the world, such as Lithuania, Russia, Australia, Singapore, Belarus, Mozambique, Philippines etc, and won the trust of the customers with high quality and good reputation.
