cement bag opening and storage silo small ton cement silo cement bag storage silo

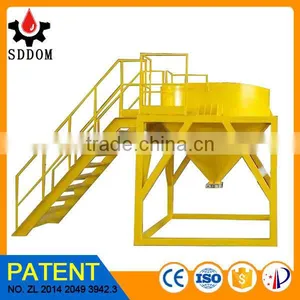

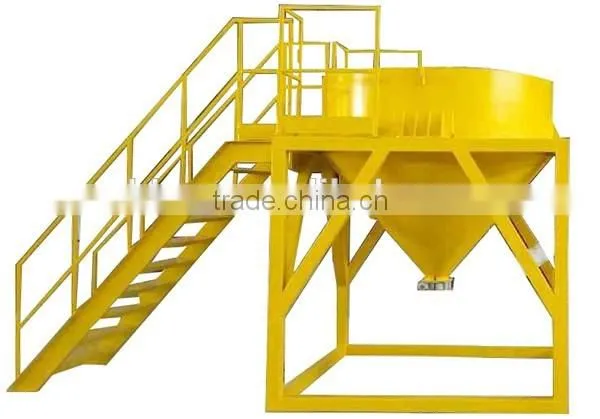

Brief Introduction of Big Bag Cement Silo
Big Bag Cement Silo is special designed for bag cement. The bulk cement is not convenient in some areas, Big bag Cement Silo is suitable for bag cement, 50kg, 100kg, 1ton, 1.5 ton, are general volume of cement bag.
What's the Specification of Big Bag Cement Silo
| Volume of Cement Silo | 1-8m3 |
| Model of Cement Silo | Big bag Cement Silo |
| Dimension | According to different volumes |
What's the Structure of Big Bag Cement Silo
1. There are two types big bag silo, one for 50kg - 100kg bag cement, the other for 1t or 1.5 ton bag cement.
2. The volume we can make is from 1m3 - 8m, but it will be bigger than container if the volume is than 4m3.
How can I ship the Big Bag Cement Silo
The big bag Cement Silo can be put in container.
Do you have stainless Cement Silo
Yes, the stainless we used is 304 and 316L, 316L is special for food grade storage, like powdered sugar.
What accessories of Cement Silo you have?
1. Dust Collector, air jet (Pulse) and vibrating type all provided for Cement Silo.
2. Pressure difference valve, keep the pressure balance in silo.
3. Pressure relief valve, keep the pressure in silo is balance with outside. It's stainless material for Cement Silo.
4. Level Switch, three types level switch provided. suitable for different Cement Silo.
5. Pneumatic Pinch Valve will open when feeding material into Cement Silo, it will shut automatically when the cement in silo is full. Besides, it can prevent moist air to come into Cement Silo.
6. Butterfly valve, Discharging door of silo, manual and pneumatic are all provide with different size.
7. Arch broken, four types provided.

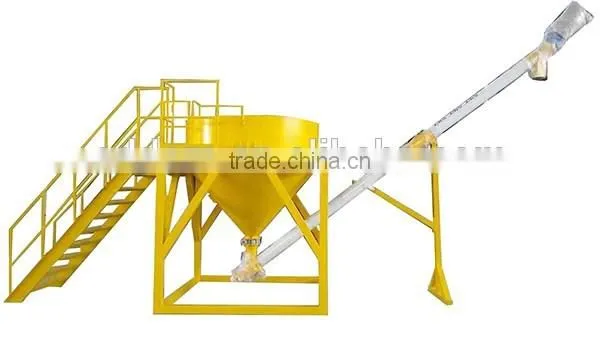

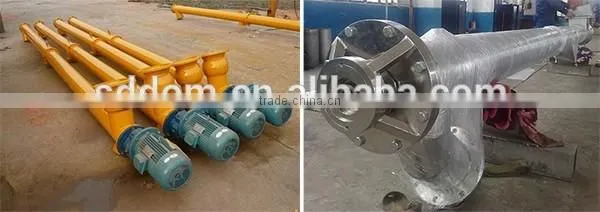

Auger which connect with the Cement Silo
Carbon steel and stainless two materials auger we provide, diameter: 114mm, 168m, 219mm, 273mm, 323mm, 406mm. Length is from 3m - 14m.
| Diameter | 114mm | 168mm | 219mm | 273mm | 323mm | 406mm |
| Capacity | 6-6.5t/h | 20-25t/h | 55-70t/h | 75-100t/h | 95-125t/h | 120-160t/h |
| Angle | 0-45 degrees | |||||
| Length | 3-14m | |||||
How many types of silo do you have
Six types silo we have, capacity from 1t - 1000t Silo
| Type | Frame silo | Container silo | Stackable silo | Mobile silo | Big bag silo | Bolted silo |
| Volume of Cement Silo | 15M3, 27m3 | 21m3 | 21-84m3 | 15m3, 27m3 | 1-8m3 | 50-1000t |
| Transport | Container | BULK | BULK | Container | Container | Container |
Do you have stainless Cement Silo
Yes, the stainless we used is 304 and 316L, 316L is special for food grade storage, like powdered sugar.
Do you have any Certification?
;
Are you manufacturer? What products you produce? I want to know more
Mobile Concrete batching plant, 10m3/h - 45m3/h
Stationary concrete mixing station, Capacity 25m3/h - 240m3/h; Dry Batch Plant 50m3/h - 400m3/h
Mixer, Concrete Mixer, Planetary and Twin Shafts type, Capacity 100L -4000L per pan
Silo, Storage Powder including Cement, Volume 1t - 1000t; Auger: Diameter 114, 168, 219, 273, 323, 406mm. Length 3m - 14m.
Other Accessories of silo
Air filter, pulse dust collector and vibrating Dust Collector / Silo filter; Pressure difference valve; Pressure relief valve; Level Switch; Pneumatic Pinch Valve; Butterfly valve; Arch broken
About US
SDDOM company is developing rapidly now. Our concrete batching plant and cement silo are all patent products and certificated by CE. Clients from all over the world, such as Lithuania, Russia, Australia, Singapore, Belarus, Mozambique, Philippines etc. come to visit every year and cooperate with us for a long time.
