NL30 Level indicator
Brief Introduction |
NL series level indicator is commercial type powder indicator with high quality, provide best quality and high precision as well as long service life.
NL type level indicator have been designed for electric signalling by rotary action of minimum or maximum material level inside bins, hoppers or silos.
Features |
As long as matereial is present, the paddle of the NL bin level indicator does not rotate. As soon as the material level sinks below the paddle radius, rotation restarts activating other system components. The top or side-mounted indicators are commonly used for materials having a bulk density ranging from 0.5t/m3 to 2t/m3
Technical Parameters |
Name |
Rotating level switch |
Model |
NL30 |
Installation method |
Screw installation |
Shaft length(mm) |
90mm |
Working temperature |
-10~+80°C |
Voltage |
220VAC/110VAC/24VAC/24VDC |
IP Grade |
65 |
Blade Rotating Speed |
1RPM |
Material |
Connector and paddle – Stainless steel |
Blade material |
SUS304 |
Weight |
2KG |
Producing time |
3 days |
Warranty |
1 year |
Remark: This level indicator is for powder level measurement.

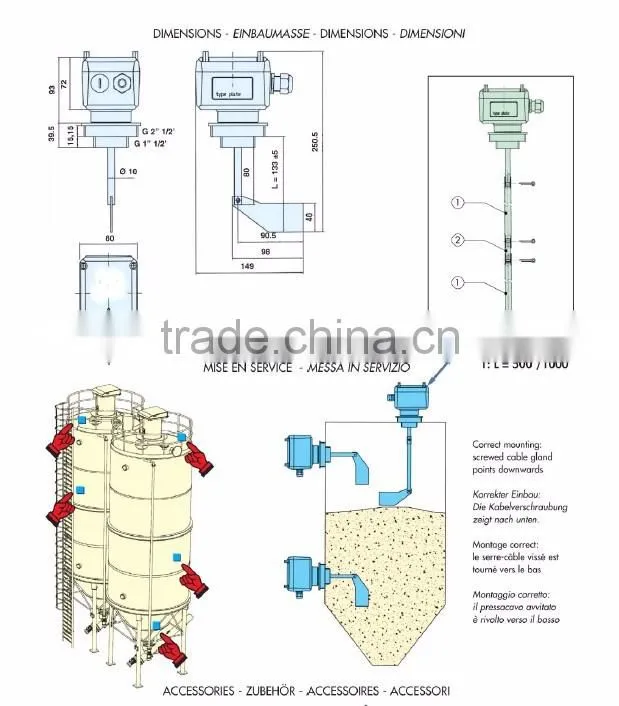

Detail pictures and Installation |

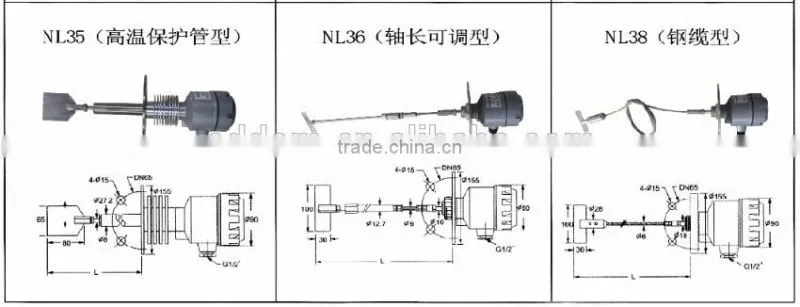

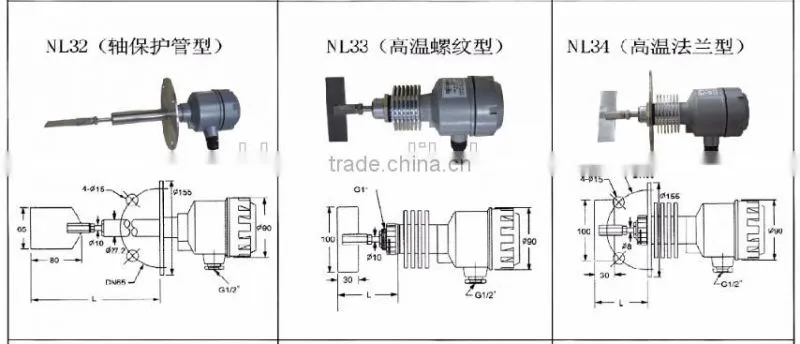

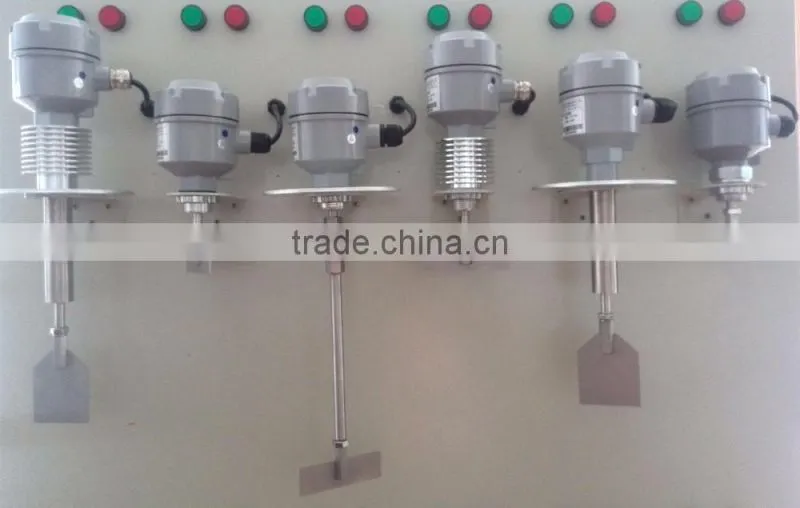

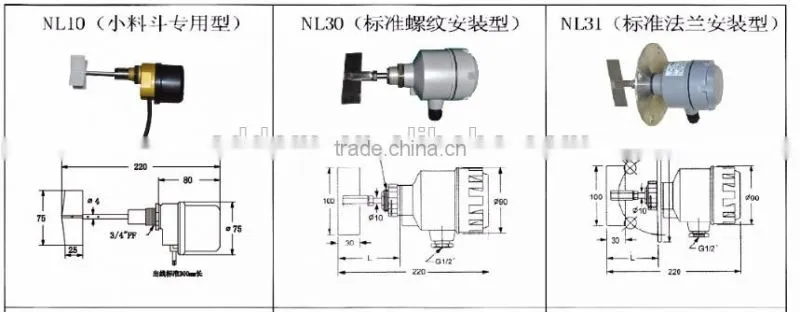

| All types of NL level switch |
| Our service |
| Trading Process |
| About US |
SDDOM Our company is developing rapidly now. We have made CE certification qualification. We have clients all over the world, such as Lithuania, Russia, Australia, Singapore, Belarus, Mozambique, Philippines etc, and won the trust of the customers with high quality and good reputation.
| Customer visiting |
| Welcome to Visit our facotry |
