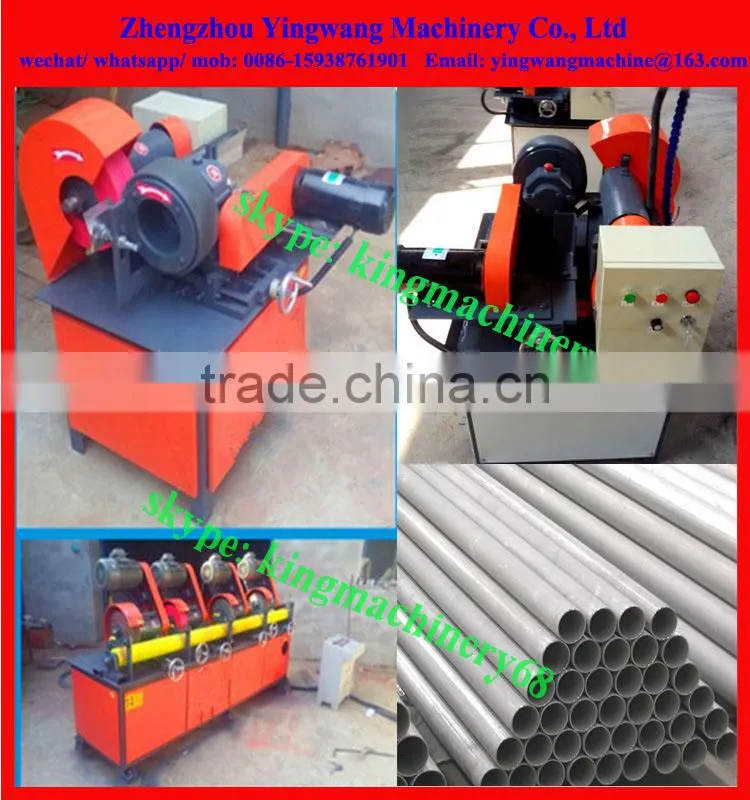

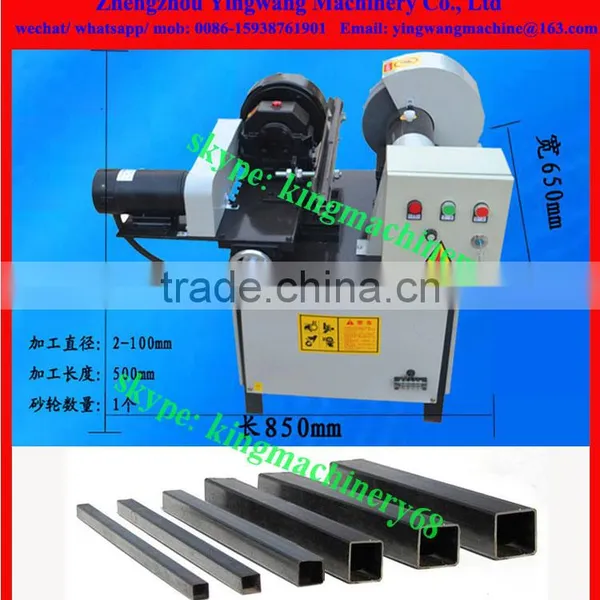

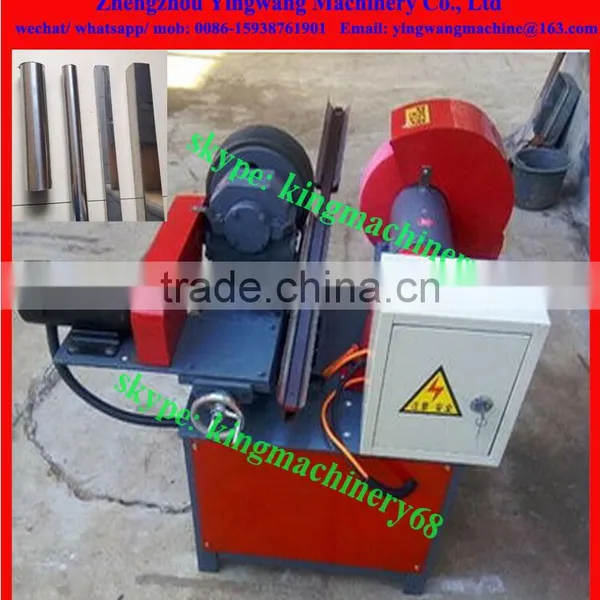

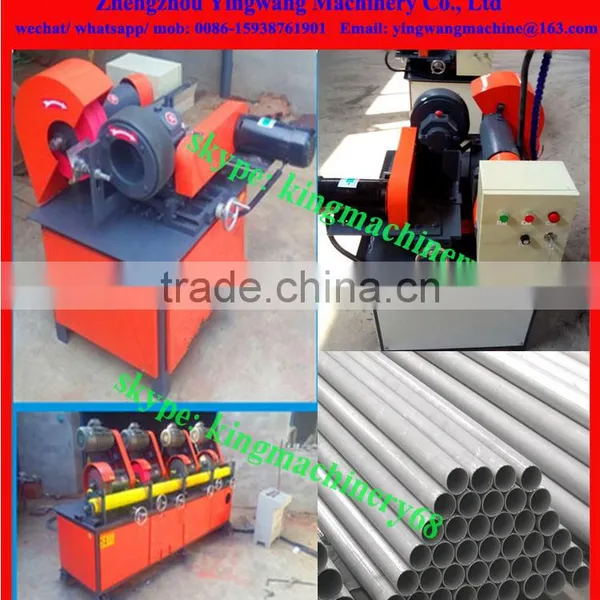

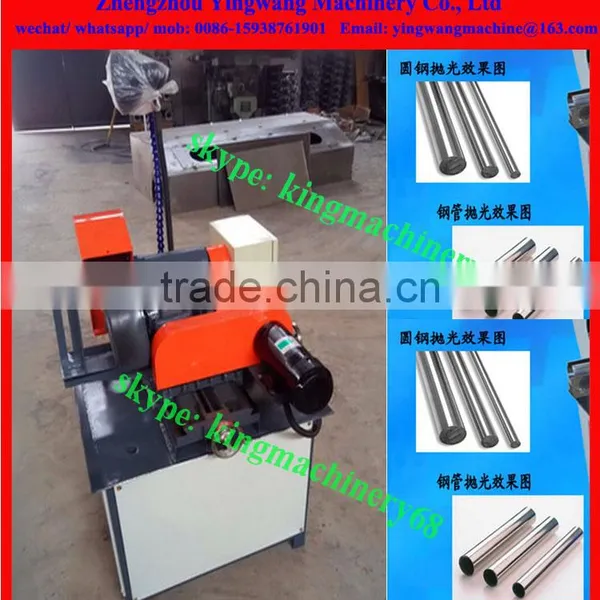

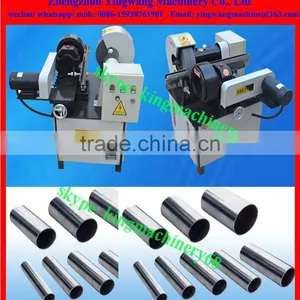

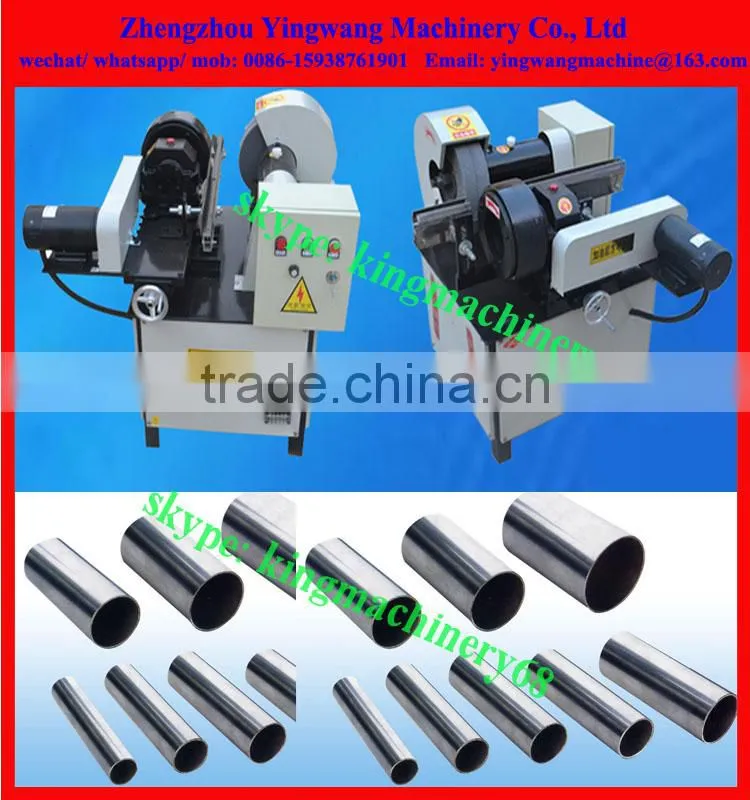

round/ square metal buff polishing machine

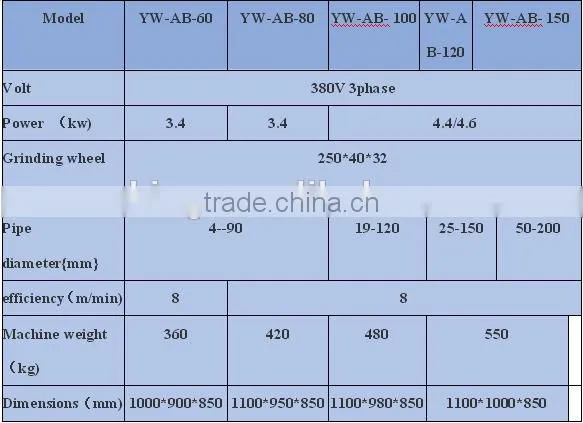

1. Series: polishing machine
2. Type: YWGG80 type
3. Input voltage: 380V / 220v
4. Input power: 4.5kw
5. wheel diameter: 250 / 300mm
6. A guide wheel diameter: 240mm
7. wheel speed: 2800 rev / min
8. The guide wheel speed: stepless
9. machining diameter: 1.5--80mm
10. Processing Length: Any
11. The processing efficiency: 0-12m / 1 Fenzhong
12. Cooling system: water pump optional
13. The dust removal system: Fan optional
14. Weight: 250kg

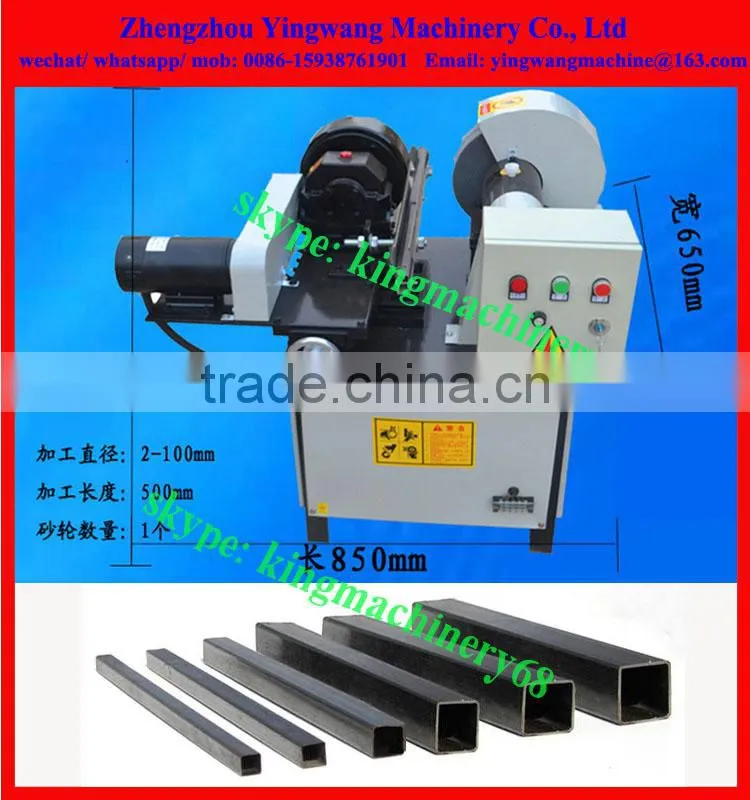

15. Dimensions: 800 * 900 * 800 (length width height)
According to customer requirements of various shaped polishing machine
In accordance with the workpiece can be customer needs and tailor-made design.
Adjustment and operation of the machine
(1) change to a different diameter tube polished tube polishing machine need to make the following adjustments.
(2) to adjust the height of the pallet host the workpiece center height of the guide wheel, thousands of impeller center gauze high consistency and lock host pallets.
(3) Adjustment: the pipe into the host (host should be in the parking state), quit grinding. Loosen the pallet locking screws until the center of the tube guide wheel contour, and then lock the pallet.
(4) the first pieces of polished before driving need to check the location of each grinding whether to exit, to avoid excessive damage cut grinding parts.
(5) driven guide wheel speed motor speed should be low to high, in order to avoid unexpected failures.
(6) bent pipe is too large to be straight, before polishing.
(7) To achieve reasonable economic polishing effect, not only to cut the amount of polishing a reasonable choice, choose to participate in the work should be based on the original number of grinding surface conditions, such as the pipe surface in good condition, can be reduced to participate in the work of the mill head.
(8) The machine should select acceptable quality gauze thousands of impeller polishing, otherwise they will impeller imbalance causes the machine vibration and other security incidents.
(9) When the machine adjustment and commissioning work is completed can throw continuous work.
