DC Motor for Radio Control Model

Name: DC Motor for Radio Control Model
Brand: TT MOTOR
SKU: 139549573
Availability: InStock

Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

TT MOTOR

Model Number:

GMP22-TEC2419

TT Motor (Shenzhen) Industrial Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name TT MOTOR

Model Number GMP22-TEC2419

Specifications

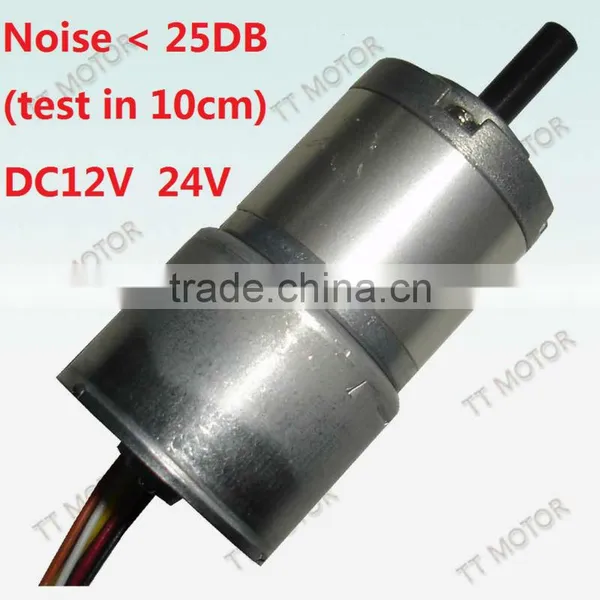

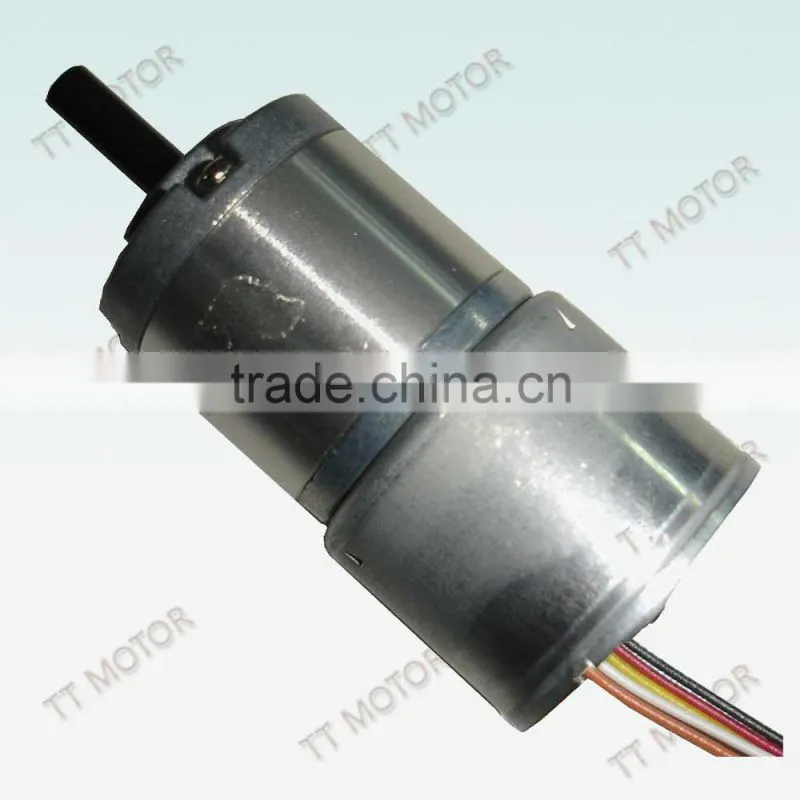

22mm dc brushless motor with planaetary gearbox
1.Small size,low noise
2.High torque,Built-in driver
3.Life time 5000-15000 H

DC Motor for Radio Control Model

22mm dc brushless motor with planaetary gearbox

24mm Planetary Gearbox plus 24mm brushless motor

24mm DC Brushless Motor with 22mm planetary gearbox,

1.Widely used in pump robot,lock. Auto shutter, USB fan,Slot machine,Money detector,

Coin refund devices,Currency count machine, Towel dispensers,

Automaitic doors,Peritoneal machine,Automatic TV rack,

Office equipemt ,Household appliances,Automatic

2.Voltage:12,24V
3.Brushless gear motor Speed: 3-1500RPM

4.gear motor Stall Torque: Max 30kg.cm

5.Low noise,low current no spark

6.Small size,low noise

7.High torque,Built-in driver.

8.Can be equipped with gearbox,Reduction Ratio:3-1000

9.size:24*65 mm,just 65mm length mini motor

10.We can offer the samples first ,the MOQ is 100 pieces ,the delivery time is 15-20 days.

Gear motor Technical Data

Gearbox with motor:GMP22-TEC2419-1262-XXX

Reduction ratio	16	62	84	104	231	316	370	455	1014
Length mm	18.1	21.7	21.7	21.7	25.4	25.4	25.4	25.4	29
No-load speed rpm	360	100	73	58	25	18	15	13	6
Rated speed rpm	300	75	55	45	20	15	12	10	4.5
Rated torque kg.cm	0.2	0.7	1.0	1.2	2.3	3.0	3.7	4.5	8
entary tolerance torque kg.cm	0.5	1.5	2.5	3.5	7	9	9	9	9

Gearbox with motor:GMP22-TEC2419-2487-XXX

Reduction ratio	16	62	84	104	231	316	370	455	1014
Length mm	18.1	21.7	21.7	21.7	25.4	25.4	25.4	25.4	29
No-load speed rpm	500	135	100	82	37	26	23	18	8
Rated speed rpm	420	100	80	65	30	22	18	15	6.9
Rated torque kg.cm	0.2	0.7	1.0	1.2	2.3	3.0	3.7	4.5	8
entary tolerance torque kg.cm	0.5	1.5	2.5	3.5	7	9	9	9	9
