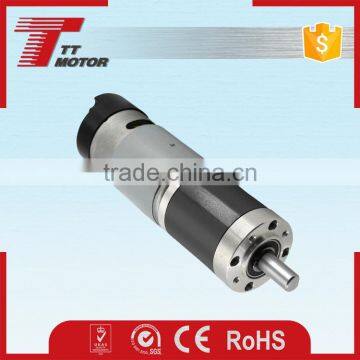

Planetary gear motor 12v dc gear motor 50kg cm

Name: Planetary gear motor 12v dc gear motor 50kg cm
Brand: TT MOTOR
Price: USD $16.2 - 18.2 / Piece

FOB Price

USD $16.2 - $18.2 / Piece

100 Pieces(Min.Order)

Supply Ability 100000 Piece / Pieces per Month
Port HK

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Guangdong, China	Brand Name:	TT MOTOR	Model Number:	brushless DC planetary gear motor GMP42-775PM
Usage:	Boat, Home Appliance, Other, Boat, Home Appliance, Medical Instrument	Certification:	CE, ROHS, Other, CE, ROHS, ISO9001	Type:	Gear Motor
Torque:	MAX 30N.M	Construction:	Permanent Magnet	Commutation:	Brushless
Protect Feature:	Explosion-proof	Speed(RPM):	8-1300rpm	Continuous Current(A):	0.3-1.2A
Output Power:	32-40w	Voltage(V):	6V ,12V, 24V	Efficiency:	Other, 65%

Product Description

Planetary gear motor 12v dc gear motor 50kg cm

Main Features

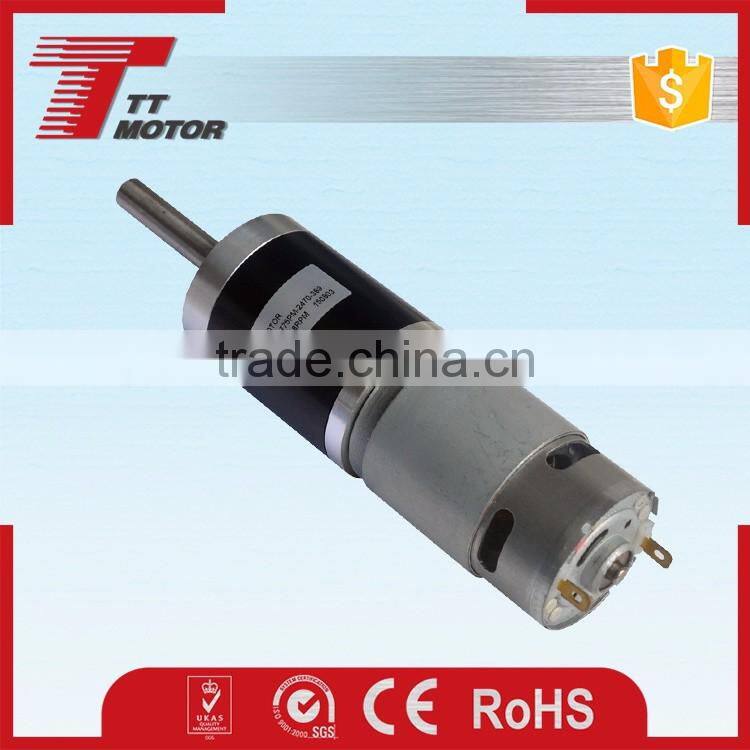

42mm Planetary reducer plus 775PM 7 series dc motor
Small size dc gear motor with low speed and big torque
42mm gear motor provide 10.0Nm torque max and more reliable
Suitable to small diameter, low noise and big torque application
DC Gear motors can match encoder, 11ppr
Reduction ratio:4、14、19、27、51、71、100、139、189、264、369、516、720

Model: motor GMP42-775PM
TRS-775PM-2460	Rated voltage: 24VDC	Rated speed:4500r/min	Output power:40W
	No-load speed:6000r/min	Rated torque:900g.cm	Stall torque:3600g.cm
	No-load current:0.3A	Rated current:2.3A	Stall current:7.2A
TRS-775PM-0648	Rated voltage:6VDC	Rated speed:3600r/min	Output power:33W
	No-load speed:4800r/min	Rated torque:900g.cm	Stall torque:3600g.cm
	No-load current:1.2A	Rated current:8.7A	Stall current:2.0A
TRS-775PM-1246	Rated voltage:12VDC	Rated speed:3470r/min	Output power:32W
	No-load speed:4600r/min	Rated torque:900g.cm	Stall torque:3600g.cm
	No-load current:0.6A	Rated current:4.4A	Stall current:16A

GMP42-775PM-2460-xxx

Reduction ratio	4	19	51	100	139	189	264	369	516
Length mm	31.5	42	52	52	52	62	62	62	62
No-load speed rpm	1400	295	110	58	42	32	23	16	11.5
Rated speed rpm	1125	235	88	45	32	24	18	14	10.5
Rated torque kg.cm	2.8	13	26	51	71	89	100	100	100
entary tolerance torque kg.cm	11	54	110	216	300	300	300	300	300

GMP42-775PM-1246-xxx

Reduction ratio	4	19	51	100	139	189	264	369	516
Length mm	31.5	42	52	52	52	62	62	62	62
No-load speed rpm	1150	240	92	46	35	25	18	13	9.3
Rated speed rpm	900	190	71	36	26	19	14	11	8.5
Rated torque kg.cm	2.8	13	26	51	71	89	100	100	100
entary tolerance torque kg.cm	11	54	110	216	300	300	300	300	300

GMP42-775PM-0648-xxx

Reduction ratio	4	19	51	100	139	189	264	369	516
Length mm	31.5	42	52	52	52	62	62	62	62
No-load speed rpm	1100	220	86	44	32	24	17	12	8.7
Rated speed rpm	870	185	69	35	25	19	14	10.5	8.2
Rated torque kg.cm	2.8	13	26	51	71	89	100	100	100
entary tolerance torque kg.cm	11	54	110	216	300	300	300	300	300

Product Application

Automatic door operators, automatic energy saving bath,electrical controlled valve,oxygen machine,optical equipment, Automat cordless power tool,lighting,etc.

Related Products

Packing & Delivery

Packaging: single carton packing, 100 - 500 pieces per box.

Shipping time:
DHL: 3-5 working days ；

UPS: 5-7 working days；

TNT: 5-7 working days；

FedEx: 7-9 working days；

EMS: 12-15 working days；

China Post: Depends on ship to which country；

Sea: Depends on ship to which country

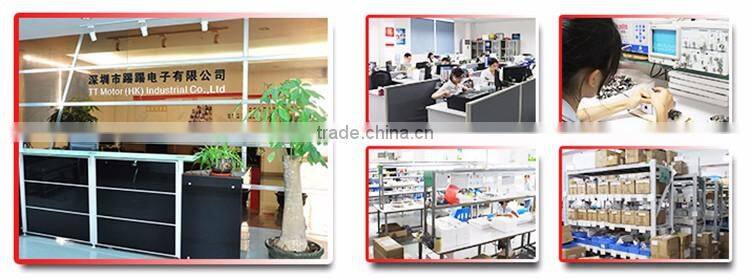

Our Company

TT Motor (HK) Industrial Co., Ltd. has been specializing in micro motors, gear motors and their respective parts since 2000.
Our products are widely used in entertainment systems, automobiles, home and industrial appliances and tools and many others. Our products are dependable and long-lasting, and backed by years of experience. We export 98% of our output worldwide.
By leveraging our hard-won reputation for honesty, dependability and quality, TT aims to continue as a pioneer in the sales overseas by seeking global partners. If your company is an end-user of micro-motors, a distributor or an agent, please contact us. We look forward to being able to work together with you in the near future.

Certifications

FAQ

Q: How to order?
A: send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production → cargo ready → balance/delivery → further cooperation

Q: How about Sample order?
A: Sample is available for you. please contact us for details. Once we charge you sample fee, please feel easy, it would be refund when you place formal order.

Q: Which shipping way is avaliable?
A: DHL, UPS, FedEx, TNT, EMS, China Post,Sea are available.The other shipping ways are also available, please contact us if you need ship by the other shipping way.

Q: How long is the deliver and shipping?

A: Devliver time depends on the quantity you order. usually it takes 15-25 working days.

Q: My package has missing products. What can I do?
A: Please contact our support team and we will confirm your order with the package contents.We apologize for any inconveniences.
Q: How to confirm the payment?
A: We accept payment by T/T, PayPal, the other payment ways also could be accepted,Please contact us before you pay by the other payment ways. Also 30-50% deposit is available, the balance money should be paid before shipping.

Contact Us

TT Motor (Shenzhen) Industrial Co., Ltd.: Contact nameMaggie Wang; Phone86-755-82501271; Address5F,A14 Building,Tianliao Industrial Zone,Tao Yuan St.,Nan shan District Shenzhen,Guangdong
