Home > Electrical & Electronics > Electric Motor > DC Motor > 42mm 3600 G.cm Stall Torque DC12V Reducer DC Gear Motor

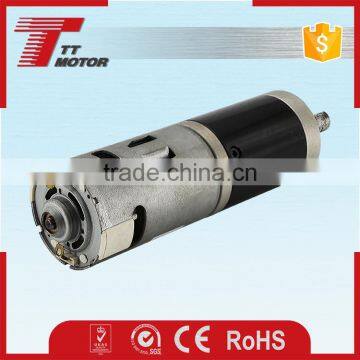

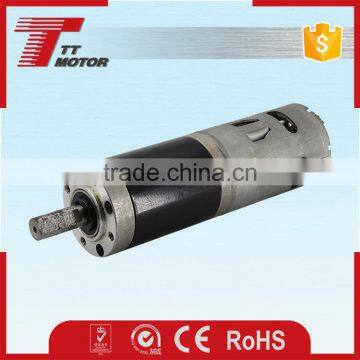

42mm 3600 G.cm Stall Torque DC12V Reducer DC Gear Motor

Name: 42mm 3600 G.cm Stall Torque DC12V Reducer DC Gear Motor
Brand: TT MOTOR
SKU: 139549303
Availability: InStock

42mm 3600 G.cm Stall Torque DC12V Reducer DC Gear Motor thumbnail-1

42mm 3600 G.cm Stall Torque DC12V Reducer DC Gear Motor thumbnail-2

42mm 3600 G.cm Stall Torque DC12V Reducer DC Gear Motor thumbnail-3

42mm 3600 G.cm Stall Torque DC12V Reducer DC Gear Motor photo-1

42mm 3600 G.cm Stall Torque DC12V Reducer DC Gear Motor photo-2

42mm 3600 G.cm Stall Torque DC12V Reducer DC Gear Motor photo-3

US$ 20 - 25 MOQ: 100 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

TT MOTOR

Model Number:

brushless DC planetary gear motor GMP42-775PM

Contact Supplier Request Quote Chat Now

TT Motor (Shenzhen) Industrial Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name TT MOTOR

Model Number brushless DC planetary gear motor GMP42-775PM

Usage Boat, Home Appliance, Other, Boat, Home Appliance, Medical Instrument

Certification CE, ROHS, Other, CE, ROHS, ISO9001

Type Gear Motor

Torque MAX 30N.M

Construction Permanent Magnet

Commutation Brushless

Protect Feature Explosion-proof

Speed(RPM) 8-1300rpm

Continuous Current(A) 0.3-1.2A

Output Power 32-40w

Voltage(V) 6V ,12V, 24V

Efficiency Other, 65%

Product Description

42mm 3600 g.cm stall torque DC12V reducer DC gear motor

Main Features

42mm Planetary reducer plus 775PM 7 series dc motor
Small size dc gear motor with low speed and big torque
42mm gear motor provide 10.0Nm torque max and more reliable
Suitable to small diameter, low noise and big torque application
DC Gear motors can match encoder, 11ppr
Reduction ratio:4、14、19、27、51、71、100、139、189、264、369、516、720

Model: motor GMP42-775PM
TRS-775PM-2460	Rated voltage: 24VDC	Rated speed:4500r/min	Output power:40W
	No-load speed:6000r/min	Rated torque:900g.cm	Stall torque:3600g.cm
	No-load current:0.3A	Rated current:2.3A	Stall current:7.2A
TRS-775PM-0648	Rated voltage:6VDC	Rated speed:3600r/min	Output power:33W
	No-load speed:4800r/min	Rated torque:900g.cm	Stall torque:3600g.cm
	No-load current:1.2A	Rated current:8.7A	Stall current:2.0A
TRS-775PM-1246	Rated voltage:12VDC	Rated speed:3470r/min	Output power:32W
	No-load speed:4600r/min	Rated torque:900g.cm	Stall torque:3600g.cm
	No-load current:0.6A	Rated current:4.4A	Stall current:16A

GMP42-775PM-2460-xxx

Reduction ratio	4	19	51	100	139	189	264	369	516
Length mm	31.5	42	52	52	52	62	62	62	62
No-load speed rpm	1400	295	110	58	42	32	23	16	11.5
Rated speed rpm	1125	235	88	45	32	24	18	14	10.5
Rated torque kg.cm	2.8	13	26	51	71	89	100	100	100
entary tolerance torque kg.cm	11	54	110	216	300	300	300	300	300

GMP42-775PM-1246-xxx

Reduction ratio	4	19	51	100	139	189	264	369	516
Length mm	31.5	42	52	52	52	62	62	62	62
No-load speed rpm	1150	240	92	46	35	25	18	13	9.3
Rated speed rpm	900	190	71	36	26	19	14	11	8.5
Rated torque kg.cm	2.8	13	26	51	71	89	100	100	100
entary tolerance torque kg.cm	11	54	110	216	300	300	300	300	300

GMP42-775PM-0648-xxx

Reduction ratio	4	19	51	100	139	189	264	369	516
Length mm	31.5	42	52	52	52	62	62	62	62
No-load speed rpm	1100	220	86	44	32	24	17	12	8.7
Rated speed rpm	870	185	69	35	25	19	14	10.5	8.2
Rated torque kg.cm	2.8	13	26	51	71	89	100	100	100
entary tolerance torque kg.cm	11	54	110	216	300	300	300	300	300

Product Application

Automatic door operators, automatic energy saving bath,electrical controlled valve,oxygen machine,optical equipment, Automat cordless power tool,lighting,etc.
