80 mm self feeding Tractor Driven wood chipper
- 500 Set / Sets per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Type: | Woodworking machinery | Use: | Cutting wood | Certification: | CE |
Place of Origin: | Jiangsu, China | Brand Name: | LEFA | Model Number: | BRH80 /BRH80S |
Condition: | New | After-sales Service Provided: | Overseas third-party support available |
Product Description
Model: BRH80 /BRH80S
2. Main features:
<1>Good chipper effect:Chips very small. Chips size is between 5mm-50mm;
<2>Good structure:The wood chipper is composed of chasis, drum rotor, feed rollers, blades and hammer, hydraulic system, adjustable valve etc.
<3>High quality blade: Two-edged blades are hardened precision cut tool steel, keeping a sharp cutting edge and maximizing the performance of the chipper. They are made of special material, with over times heat treatment process to ensure longer service time.
<4>Mounting Configurations:There are two different mounting configurations available for the BRH Wood Chipper; A three point hitch and trailer. <5>Self-feeding Hopper:The self-feed hopper is designed to angle the brush against the rotor and blades, pulling the branches into the chipper.
<6>Roller speed:adjustable according to the diameter of wood.
<7>Machine Foldable: for the convenience of transportation.
<8>Warranty:1 year free spare parts warranty, lifetime supply of spare parts
3.Technical parameters:
Model | BRH80S | BRH80 |
Dimension | 1680*1400*1620 | 1680*1400*1620 |
PTO Speed maxi | 540 T/min | 540 T/min |
Power required | 20-35HP | 20-35HP |
Length | 1100mm | 1600mm |
Working width | 2500mm | 2500mm |
Width for transport | 1500mm | 1500mm |
Weight | 305KG | 350KG |
Discharge pipe height | 1500mm | 1800mm |
Hopper height | 900mm | 1200mm |
Wheel size | 20*7-8 | 20*7-8 |
Number of blade | 2 | 2 |
Sawdust thickness | less than 5mm | less than 5mm |
Sawdust length | 5-50mm | 5-50mm |
Feeding outlet rotation angle | 360 degree | 360 degree |
Max. dia. of feeding | 80mm | 80mm |
Blade disc | 302mm | 302mm |
Efficiency | 7-8 m3/h | 7-8 m3/h |
Oil tank capacity | 35L | 35L |
Speed of roller | 0 to 175 T/min | 0 to 175 T/min |
Cutter diameter | 350mm | 350mm |
Cutter rotation speed | 2700rpm | 2700rpm |

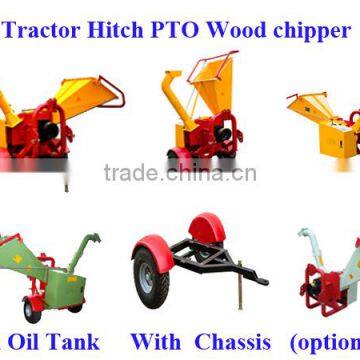

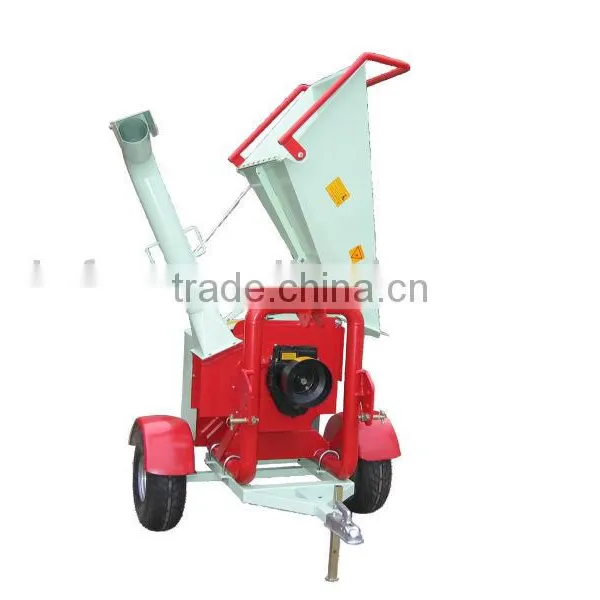

4.More product pictures are following:
Packaging Detail: Iron pallet or wooden cases
Delivery Detail: By sea or By air
1. Waterproof packing with the international export standard by 20ft, 40ftcontainer.
Wooden Case or Iron Pallet.
2.The whole set of machines size are large as normal, so we will use Waterproof materials to pack
all of them. The motor, gear box or other easily damaged parts, we will put them into box.
We have a professional shipping department, they will try their best to save your container quantity.
Best After-Sale Service
We have France Branch. LEFA Europe can give Europe customer best service.
- 1. LEFA Europe can drive the car to repair the machine once you give the calling.
- 2. LEFA Europe can send the spare parts to the customers in time.
- 3. Our machine Warranty time: 1 year. We provide free spare parts.
- 4. We provide lifetime repair service and spare parts. You just tell us what you want. We will give you the solution in time.
- 5. If the LEFA Europe cannot give you the satisfaction. The head office engineer is willing to wear the LEFA blue Uniform clothes to your site for repair.
- 6. For other areas, Lefa China Skype(lefa.virginia) is on line everyday for the service.
Changzhou LEFA Industry & Trade Co., Ltd., is a professional manufacturer and exporter of whole set of farm machines and garden tools for 13 years, mainly including mowers, tillers, plows and Japanese tractor parts, etc.
We sincerely welcome customers abroad to visit us to discuss cooperation and seek common development. We believe our company is your most reliable partner and friend!
Advantages of our company---Changzhou Lefa
1. Specializing in manufacturing and selling the farm machine more than 11 years.
2. "Lefa" produce in China and France.
3. "CE"& "Supplier Assessment Certificate" by TUV Rheinland in Germany and SGS in Switzerland.
4. With the strict quality control and best service for customers.
5.We can provide excellent and rapid after-sales service.
6. Our aim: win-win.
7. We can design and produce machines according to customer's needs.
8. We developed dozens of Japanese tractors parts, we can deliver the parts with machine together.
Marketing
Our main market is Europe. All the products are produced by CE standard.
Our Purpose:
Quality first, best service, win-win!
Welcome to send inquiry to us. Please provide the quantity and Item No you want, I will quote you the best price accordingly.
Welcome to add my Trade Manager or Skype (lefa.virginia) for more information.
Weolcome to visit our factory.
For inquiry, please send us below information:
1. The machine you want.
2. The Item No.
3. The Quantity.
4. Your company information.
If you need us to design for you, please choose to provide below information:
1. Drawing
2. Sample machine
We will quote you the best price if you can provide the information in detail.
