Specifications
BRH80 /BRH80S1.Lefa wood chipper
2.With Tyre
3.With CE certificate
4.With oil tank, chassis
Changzhou LEFA Industry & Trade Co., Ltd. is located between Shanghai and Nanjing, beside of Beijing-Hangzhou Great Canal and 10km to reach Yangtze River. As a professional importer and exporter since 2002, we are also a manufacturer of whole set of farm machines and garden tools. We manufacture according to CE standard. We can design the products accoding to the customers needs. We always provide the best quality products and services for customers. Our company will become your best partner in the future. We can also supply all kinds of products according to the customers needs, for example:ebike, wind generators, solar water heaters, funiture, Japanese tractors parts,etc...

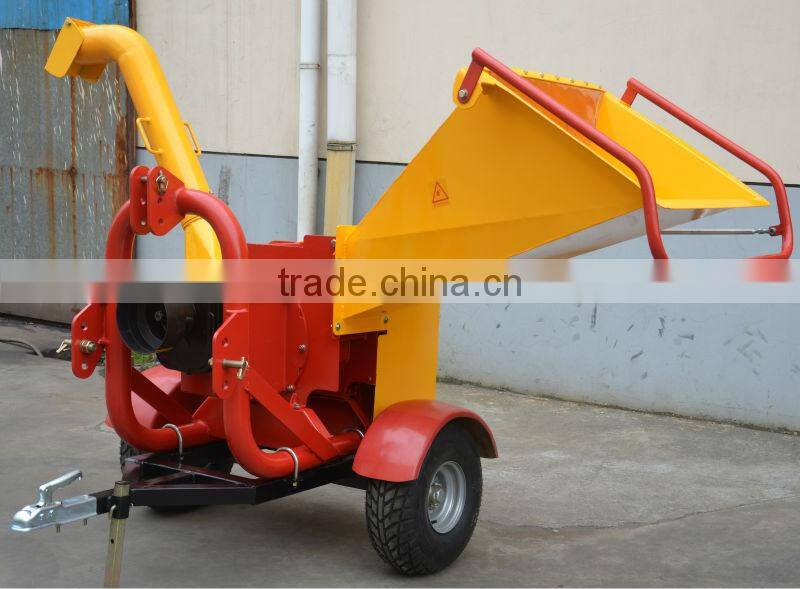

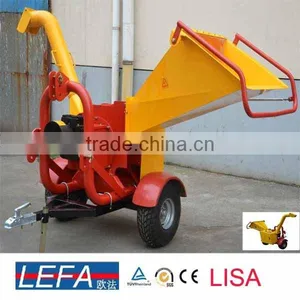

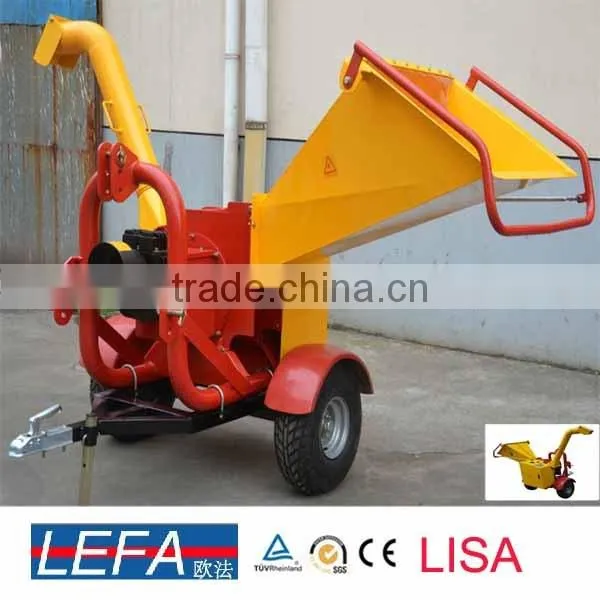

Lefa Wood Chipper for Forest Machine with Tyre and Oil Tank
2. Main features:
<1>Good chipper effect:Chips very small. Chips size is between 5mm-50mm;
<2>Good structure:The wood chipper is composed of chasis, drum rotor, feed rollers, blades and hammer, hydraulic system, adjustable valve etc.
<3>High quality blade: Two-edged blades are hardened precision cut tool steel, keeping a sharp cutting edge and maximizing the performance of the chipper. They are made of special material, with over times heat treatment process to ensure longer service time.
<4>Mounting Configurations:There are two different mounting configurations available for the BRH Wood Chipper; A three point hitch and trailer. <5>Self-feeding Hopper:The self-feed hopper is designed to angle the brush against the rotor and blades, pulling the branches into the chipper.
<6>Roller speed:adjustable according to the diameter of wood.
<7>Machine Foldable: for the convenience of transportation.
<8>Warranty:1 year free spare parts warranty, lifetime supply of spare parts
3.Technical parameters:
| Model | BRH80/BRH80S |
| Dimension | 1680*1400*1620 |
| Speed PTO maxi | 540 T/min |
| Power required | 25-35HP |
| Length without chassis | 1100mm |
| Length with chassis | 1600mm |
| Working width | 2500mm |
| Width for transport | 1500mm |
| Weight without chassis | 260kg |
| Weight with chassis | 305kg |
| Discharge pipe height without chassis | 1500mm |
| Discharge pipe height with chassis | 1800mm |
| Hopper without chassis | 900mm |
| Hopper with chassis | 1200mm |
| Wheel size | 20x7-8 |
| Number of blade | 2 blades |
| Sawdust thickness | less than 5mm |
| Sawdust length | 5-50mm |
| Feeding outlet rotation angle | 360 degree |
| Max. dia. of feeding | 80mm |
| Blade disc | 302mm |
| Efficiency | 7-8 m3/h |
| Oil tank capacity | 35L |
| Speed of roller | 0 to 175 T/min |
| Rotor assy | 22KG |
| Cutter diameter | 350mm |
| Cutter rotation speed | 2700rpm |
| Suspension system | 3-point-type suspension |
| Feeding system | Hydraulic feeding, Adjustable Speed, Forward-Stop-Backward |
| Blade | Double edged knife, hardened tool steel |

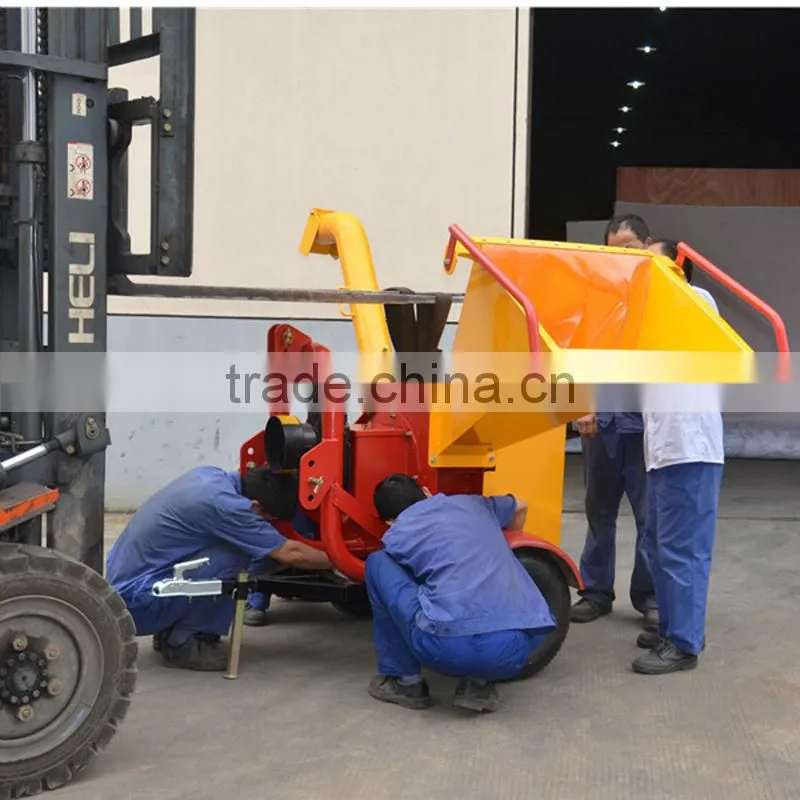

4.More product pictures are following:
5. Our company and exhibition
6. Our certification
Co-operation policy:
1. Sample Policy:You can test the quality of our sample firstly before you purchase them in mass quantity.
2. Payment Way: T/T, L/C, Western Union, D/P.
3. Delivery Date: 10-30 days after deposit paid. It depends on your order quantity.
4. Shipping Way: By Sea or By Air.
5. After Service: 12 months guarantee of the main parts, we will send the guarantee parts together with the machine in your next order or we can send them by air express if you need them urgently.
Our Purpose:
Quality first, best service, win-win!
