Specifications
completely ozone machine air compressor1.Oil-free
2.assembly
3.220V
completely ozone machine air compressor
Small Air Compressor
- Mini air pump /air compressor
- Power supply: 110v/220v
- Air flow rate: 1.00LPM, 4LPM, 8LPM, 15LPM
Item |
Unit |
Model |
||
NT-P-4 |
NT-P-10 |
NT-P-15 |
||
Air flow rate |
LPM |
3.8 |
10 |
15 |
Air pressure |
kpa |
14 |
15 |
21 |
Power Supply |
V/HZ |
220v/ 50HZ |
||
Power |
W |
2.50 |
3.70 |
5.00 |
Dimension |
mm |
90×37×39 |
95×55×40 |
120×65×55 |
Net weight |
G |
89 |
156 |
281 |
Air Compressor
It’s designed to work with an ozone generator without an internal air pump. It consumes low power but provides steady air output. Functioning as a part of an ozone generating system, it is especially suitable for spa, aquarium, fish breading, water tank and where purification is required.
Features:
1. Silent operation
2. Stable air output

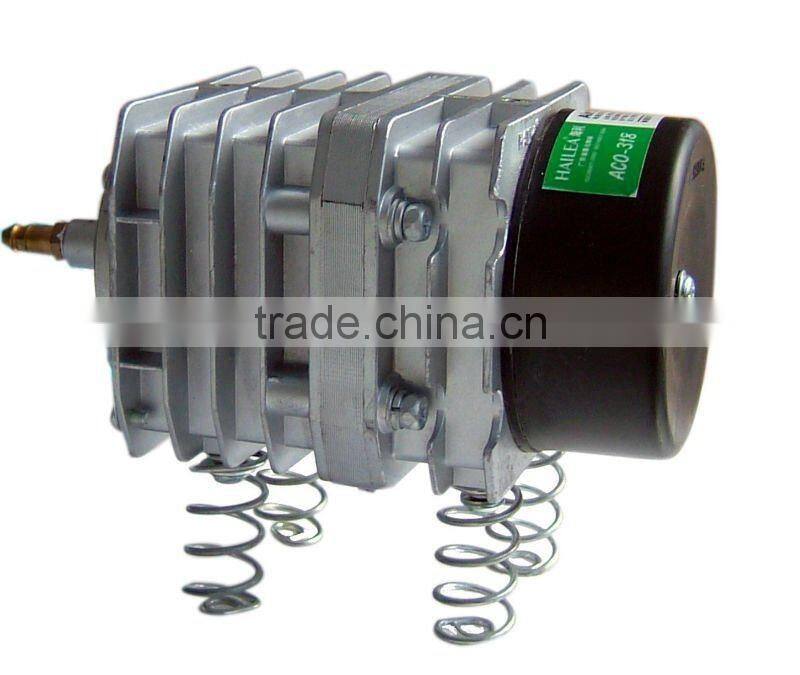

Item |
Unit |
Model |
|||
ACO-208 |
ACO-308 |
ACO-318 |
ACO-328 |
||
Air flow rate |
LPM |
45 |
55 |
70 |
82 |
Input Power |
W |
25 |
30 |
35 |
60 |
Work voltage |
V |
110/220 |
|||
Frequency |
Hz |
50/60 |
|||
Pressure |
Mpa |
>0.015 |
>0.025 |
>0.030 |
>0.035 |
Noise |
Db |
<60 |
|||
Net weight |
Kg |
1.20 |
1.65 |
1.85 |
2.30 |
Size |
mm |
159×90×95 |
182×95×116 |
199×108×133 |
155×140×150 |

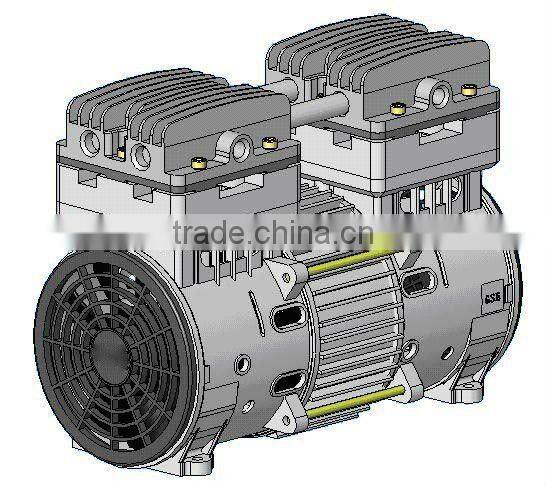

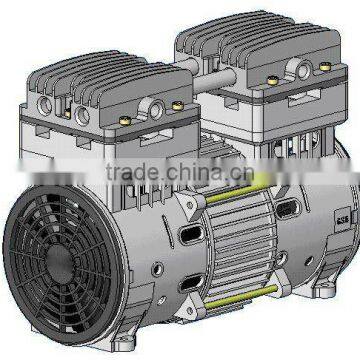

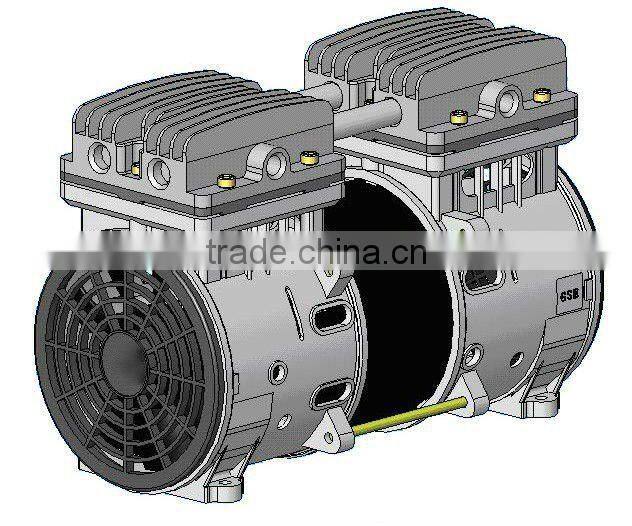

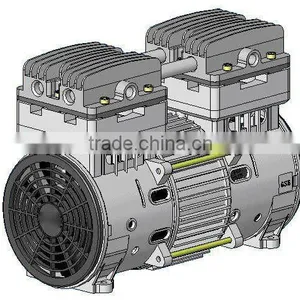

Item |
Unit |
Model |
||||
NTZW280 |
NTZW400 |
NTZW500 |
NTZW700 |
NTZW1100 |
||
Air flow rate |
LPM |
53.3 206.8KPa |
90 206.8Kpa |
40 700KPa |
60 700KPa |
103 800KPa |
Input Power |
W |
≤315 |
≤500W |
≤550 |
≤750 |
≤1250 |
Working pressure |
Kpa |
206.8 |
206.8 |
400 |
700 |
800 |
Max pressure |
Kpa |
300 |
300 |
800 |
800 |
900 |
Operating ambient temperature |
°C |
5-40 |
10-40 |
5-40 |
5-40 |
5-40 |
Cold insulation resistance |
MΩ |
≥100 |
||||
Thermal protectors |
/ |
automatic reset 135±5 |
automatic reset 145±5 |
automatic reset 135±5 |
automatic reset 145±5 |
automatic reset 160±5 |
Voltage strength resistance |
V/Hz |
1500/50 1min No breakdown |
||||
Installation size |
mm |
83×147 |
203.2×88.9 |
223.2×88.9 |
223.2×88.9 |
246×127 |
Install foot thread 4-M6 | ||||||
Noise |
Db |
≤59 |
≤66 |
≤66 |
≤68 |
≤66 |
Net weight |
Kg |
6.85 |
8.3 |
8.5 |
12 |
15 |
Size |
mm |
234×103×165 |
244×128×180 |
268.8×128×189.7 |
268.8×128×212.7 |
319×195×290 |
