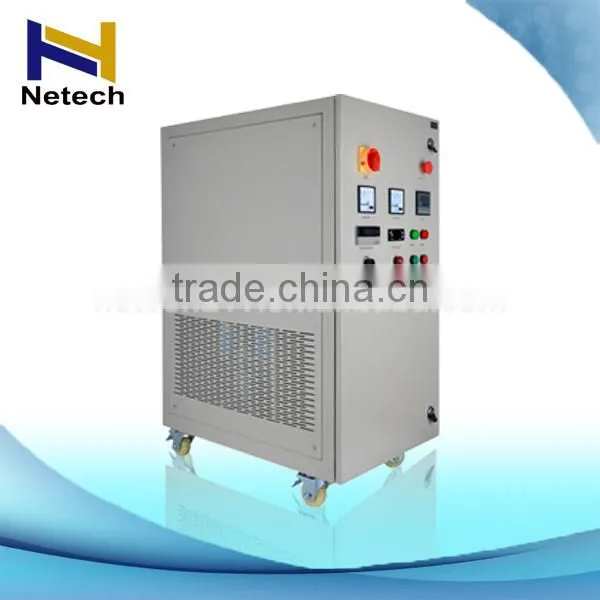

Industrial Sterilization Equipment
1.built-in oxygen system
2.built-in enamel tube
3.water cooling
4.adjustable plug

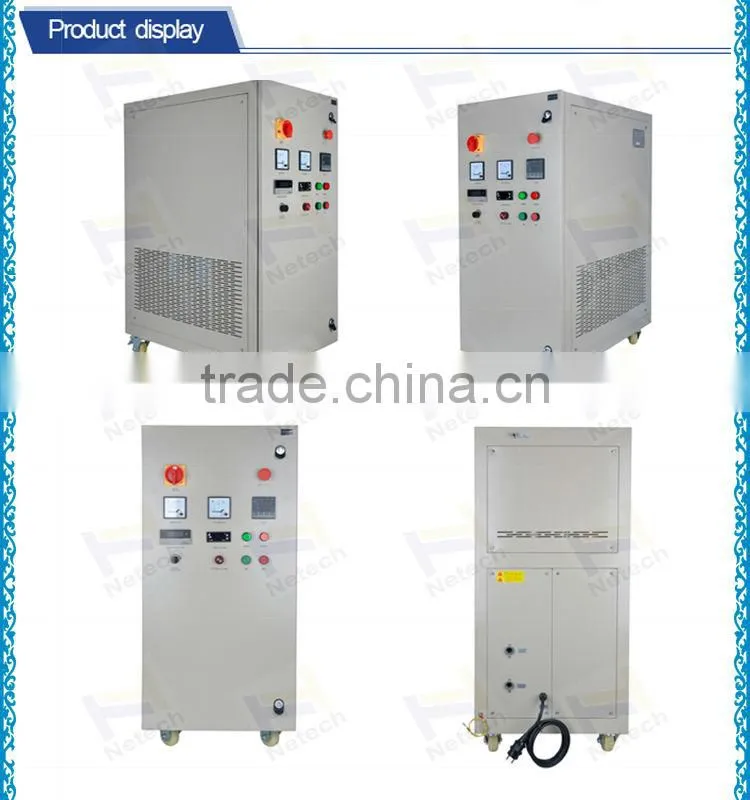

hot recommend medical enamel ozone sterilization
Parameter
Item |
Unit |
NT-Y10G |
NT-Y20G |
NT-Y30G |
NT-Y40G |
NT-Y50G |
Oxygen flow rate |
LPM |
1~3 |
2~6 |
3~10 |
5~15 |
8~18 |
Ozone concentration |
Mg/L |
58~88 |
57~88.6 |
87.5~56.8 |
90~56 |
90~60 |
Ozone output |
G/Hr |
5~10 |
11~21 |
16~34 |
27~50 |
43~64 |
Power |
Kw |
≤0.96 |
≤0.98 |
≤1.43 |
≤1.62 |
≤1.85 |
Fuse |
A |
13 |
13 |
15 |
15 |
20 |
Cooling water flow |
LPM |
30 |
48 |
|||
NW |
KG |
105 |
105 |
166 |
170 |
175 |
Size |
mm |
490×740×1200 |
650×1030×1230 |
|||
Noted:
1. Above ozone capacity were tested under oxygen source
2. Net weight will be 10% different for different plug
Features

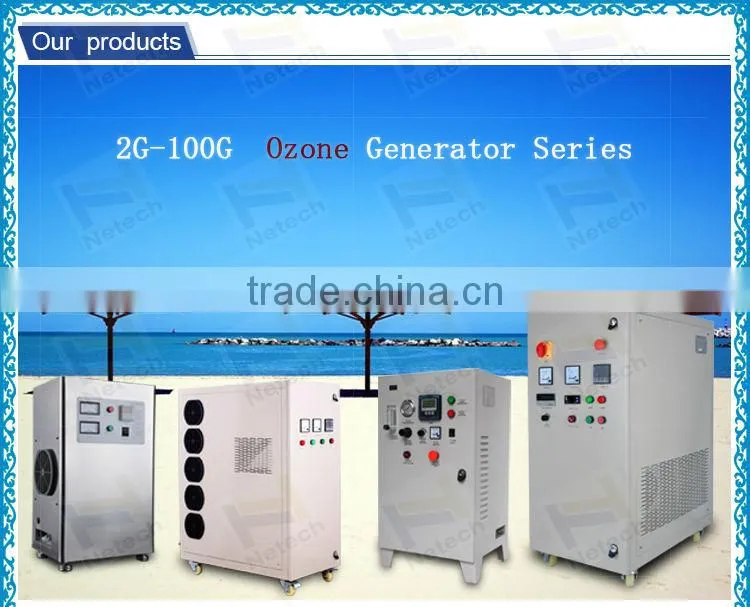

NT-Y Series with high ozone concentration, which has complete ozone parts inside machine, with built-in air compressor, refrigerant dryer and oxygen generator. Adjustable ozone output, it can meet with different requirements for different applications.
1. Complete machine oxygen source, with built-in oxygen concentrator with high concentration of ozone and ultra-low rate of ozone decay.

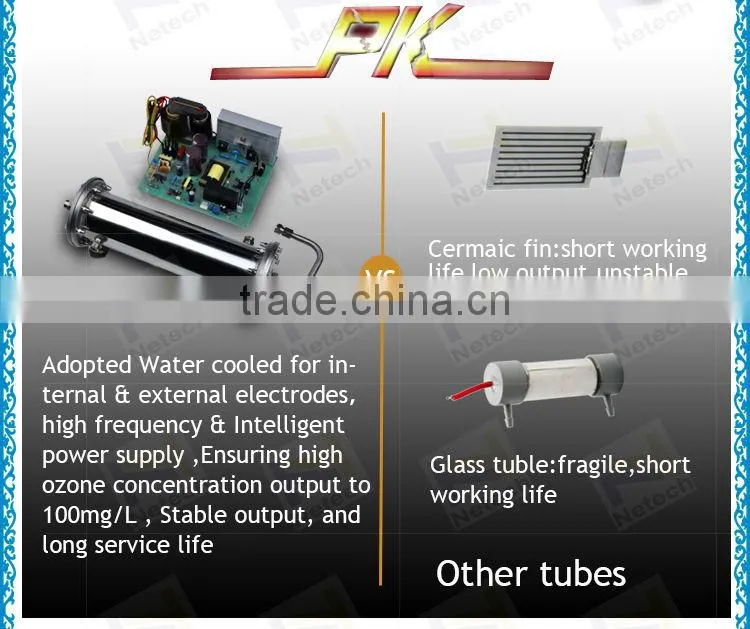

2. Use patent of product - enamel ozone tube with internal and external water cooling.
Both the internal and external electrodes are cooled by water with low temperature rise resulting in continuous work with high efficiency and stability, extreme low rate of ozone output decay and high ozone concentration thus saving air supply.
3. Use advanced high-frequency pulse modulationto ensure that ozone output varies with the change of demand, thus realizing accurate control.

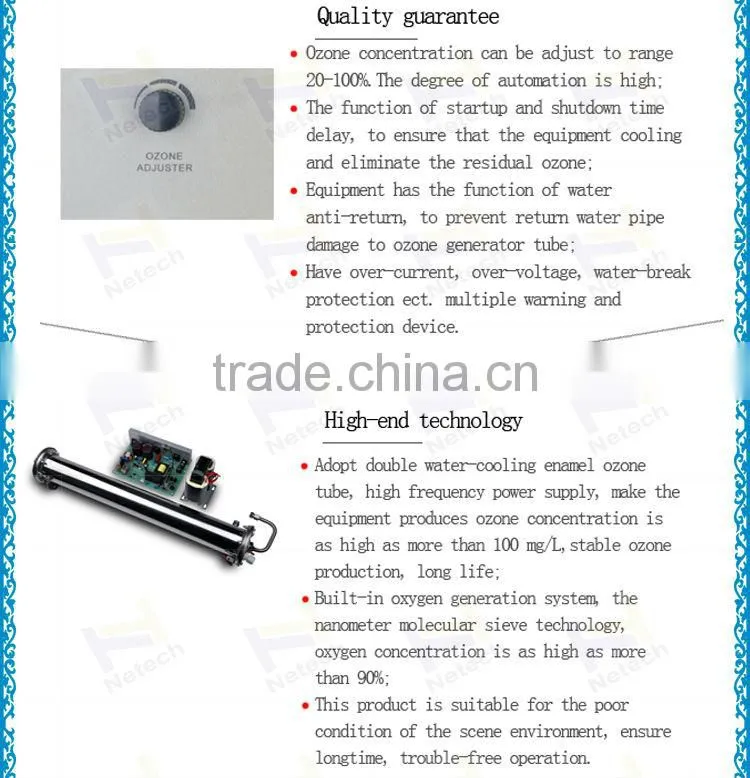

4. Adjustable ozone output: 20~100%
5. Use anti-oxidation and corrosion-resistant materials (teflon, components made of stainless steel).
6. Chiller for cooling water, in order to reduce cost for user, we use dryer’s chiller for cooling water.
7.Adjustable oxygen flow rate, which will change ozone output & concentration for meeting with different lines requirements.
8. Save air supply with low power consumption but high efficiency.
9. No breakdown with easy operation and maintenance.

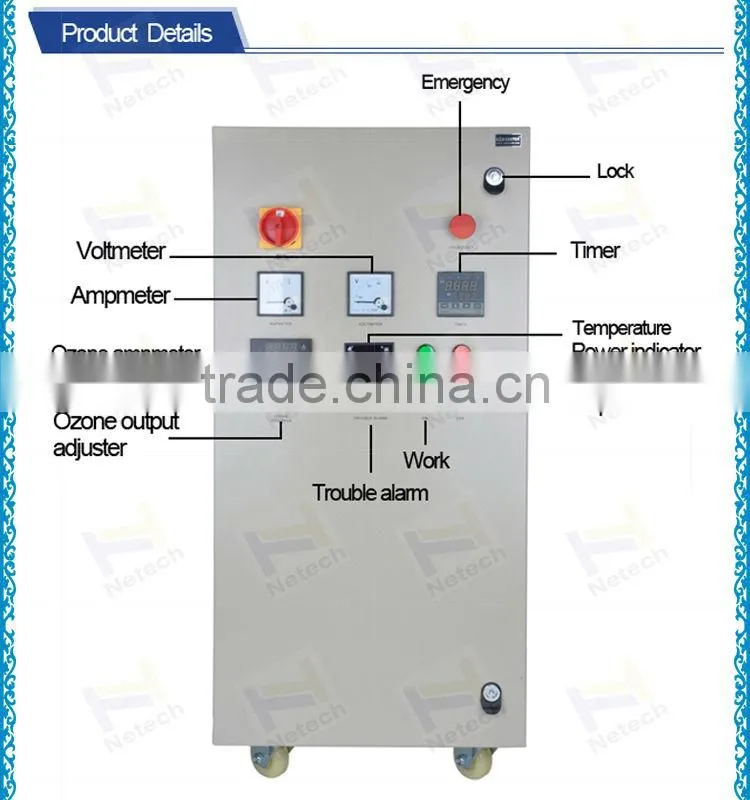

Controls
Ampmeter Timer Oxygen flow meter
Working light Power light Alarm
Ozone adjuster Emergency stop
Parts of NT-Y machine
Enamel Ozone Tube Adjustable Electric Board Oxygen Concentrator
Air Compressor Chiller for Cooling Water Refrigerant Dryer
hot recommend medical enamel ozone sterilization
Application
>>Air purifier, Ozone purifier, Ozone air sterilizer, Restaurant air sterilizer, Hotel room purifier, KTV smell remover
>>Sterilize and remove odor for farming, Keep fresh, wash and remove the residual pesticides for vegetable and fruits, Ozone generator for removing Formaldehyde, Refrigerator keep fresh equipment.
>>Purifier for air conditioner room or newly decorated house, Sterilize for kids clothes and toy, Sterilize for daily necessities, Home water purification, Remove chlorine and oxidation for heavy metals
Ozone Generator
>> Good diffusivity: Ozone gas can reach to everywhere without dead angle.
>> Strong sterilization ability: Ozone sterilization ability is the same with peroxyacetic acid (C2H403),which is stronger than regular disinfectant.
>> Convenient raw material: Ozone use oxygen gas as raw material, which we can get from air ambient.
>> Co-friendly: Ozone can be resolved into oxygen and oxygen atoms, so without secondary pollution.
UV Sterilizer
>> Weak penetrability, which makes the disinfection effect very weak if the UV radiation can’t reach.
>> Shorter life time: the sterilization ability decrease along with using time. And short life time 8,000~12,000 hours (China) with higher repair cost, but ozone with 20,000 hours.
>> Harmful for health: UV light is electromagnetic radiation with a wave length of 328~210nm,this could make microorganism die of losing DNA transformation ability. If UV directly onto people, it will cause skin, eyes problem, even cause skin cancer.
Is ozone harmful to human body ?
>> Once the ozone concentration fails to meet the hygiene and safety standard, we can notice with our sense of smell and dodge away or take actions to avoid further leakage.So far there is no one dealth reported caused by ozone poisoning.
Does the ozone generator work efficently ?
>> Undeniably,ozone can sterilize and remove odor and formaldehyde.It is reported that ozone is a widely used bactericide.It can kill escherichia coli,bacimethrin efficently and resolve the harmful material in a short time.
hot recommend medical enamel ozone sterilization
What we do?
We Provide high-quality ozone generator for :
>> Ozone generator wholesalers Retailers and oneline shops (Ebay, Amazon...)
>> OEM-The custom-made ozone generator are available.
>> Upon customer's idea, drawings, photos etc.
>> ODM-The modification of the ozone generator after customer's selection is accepted.
Excellentafter-sales service:
>> 1 year warranty again the manufacture defect, offer life time consultation on problems occurred.
>> 2M silicone tube and 2PCS air stone gift for any ozone machine order.Report on the making process.Marketing feedbacks tracing.
Why choosing us?
>> Having 7 years production experienced .We are trusty business partner.
>> Quality Controlled:Quality Control personnel check the quality at every stage of production, from the incoming raw materials to the finished product.
>> NT-Y Production Capacity: 3000 pcs per month.
>> We have serial products: ozone tube ,UV water sterilizers, ozone generators, oxygen concentrators, protein skimmers, and filters, mixing pumps and other water or air treatment spare parts.
>> We supply OEM service according to customers' requests and give out professional suggestions. Distributors Offer : Welcome to be our distributor.
Professional factory of ozone generator, best quality, lowest price, good after-sale service and fast shipping !!
We are the trusty partner! Buy base on the trust !
