Specifications
water coolingceramic tube1,Easy to maintain and install
2.air cooling ceramic tube
3,Low working voltage
4.high efficiency

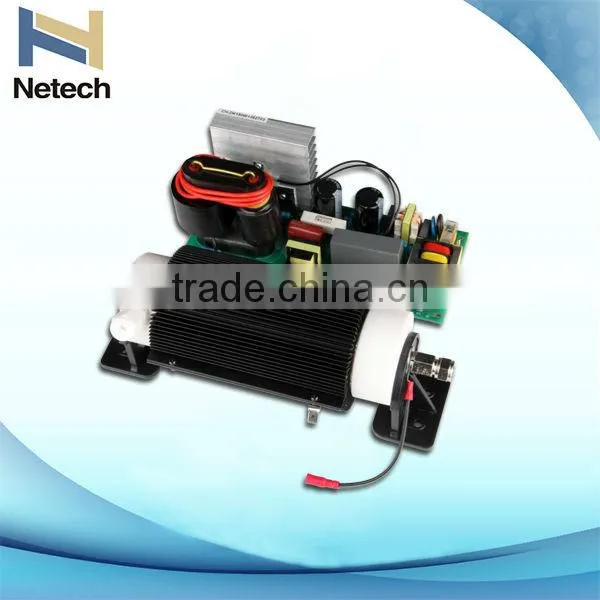

commercial ozone generator parts water cooling ceramic tube
commercial ozone generator parts water cooling ceramic tube

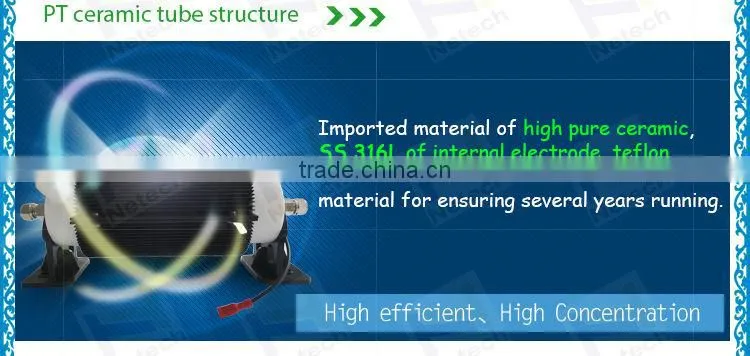

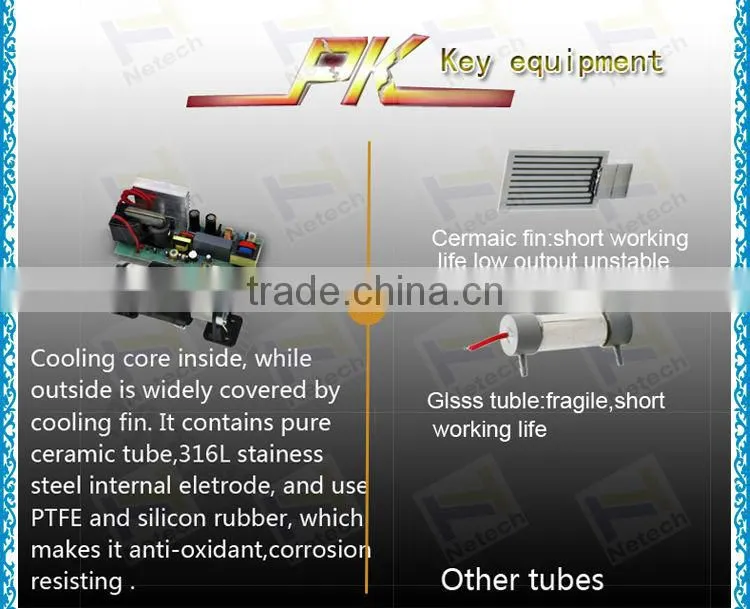

<Imported material of high pure ceramic, SS 316L of internal electrode, teflon connections which <are best anti-oxidation material for ensuring several years running.
Features
<1Extremely low rate of ozone decay & high ozone concentration.
<Ozone concentration can be around 28~65 Mg/L, which is much higher than conventional <products
<2Dometic patent product-got domestic patent in 2008.
<Air cooled for internal & external electrodes with low temperature rise of continuously working, <high efficiency and stable ozone output.
<It saves space effectively. The size is 1/4 smaller than similar products.
commercial ozone generator parts water cooling ceramic tube
NT-PT
Item |
Unit |
CH-PT |
||||
7GM |
7GA |
15GA |
30GA |
50GA |
||
Ambient temperature |
°C |
28 |
21.9 |
22 |
26 |
|
|
||||||
Oxygen feed flow rate |
LPM |
1~3 |
3~5 |
7~9 |
15~18 |
|
Ozone concentration |
Mg/L |
70-40 |
66.4~53 |
62~53 |
52~49 |
|
Ozone output |
G/Hr |
4.2~7.2 |
11.9~15.9 |
26~28.6 |
46.8~52.9 |
|
Power (220V) |
W |
≤100 |
≤100 |
≤190 |
≤300 |
≤500 |
|
||||||
Cooling way |
Air cooling for external electrode,water cooling for internal electrode |
|||||
Cooling water flow rate |
LPM |
>2 |
||||
Diameter of cooling water pipe |
mm |
ED10 |
||||
Temperature of cooling water |
°C |
Ambient temperature ±8°C |
||||
Diameter of cooling fan |
mm |
1pcs Dia.150 fan |
2pcs Dia.150 fan |
|||
Diameter of Gas inlet/outlet |
mm |
ED6 |
ED8 |
ED8 |
ED8 |
|
Ozone output adjust range |
% |
/ |
20-100 |
20-100 |
||
Line power supply |
V/Hz |
110/60 220/50 |
||||
Ozone tube dimensions |
mm |
200×100×105 |
260×100×105 |
340×160×125 |
325×135×150 |
|
Power supply dimensions |
mm |
177×66×53 |
201×86×83 |
212×90×95 |
189×146×95 |
210×146×62 |
weight of power supply |
KG |
1.27 |
1.0 |
2.45 |
2.35 |
|
weight of ozone tube |
KG |
0.91 |
1.35 |
1.9 |
4.3 |
|

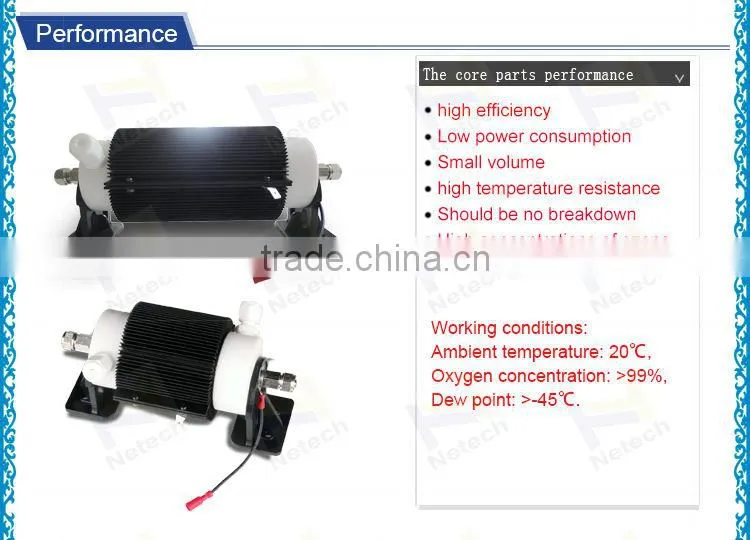

Ambient temperature: 20°C, Oxygen concentration: >99%, Dew point: >-45°C.
<Quality control
<Every procedure has personnel inspection.
<All the products must be tested and qualified before packaging.
<After sales service
<We provide 12month free maintenance.
<The buyer should return the product in the original conditions to us and should
<bear the shipping costs for return.
