Hot Air Welding Tools for Membrance Welding

Specifications

                      hot air welding tools for membrance welding

Please read operating instructions carefully before use and keep it for further reference.

Parameters:

Style no.       LST1600

Voltage         230V

Power         1600W

Frequency:     50/60 Hz

Temperature     20~700 °C distance adjustable

Air volume       Max 180L/Min

Air pressure     2600 pa

Noise level       65 db

Weight         1.05   KGS

Size           320×105mm

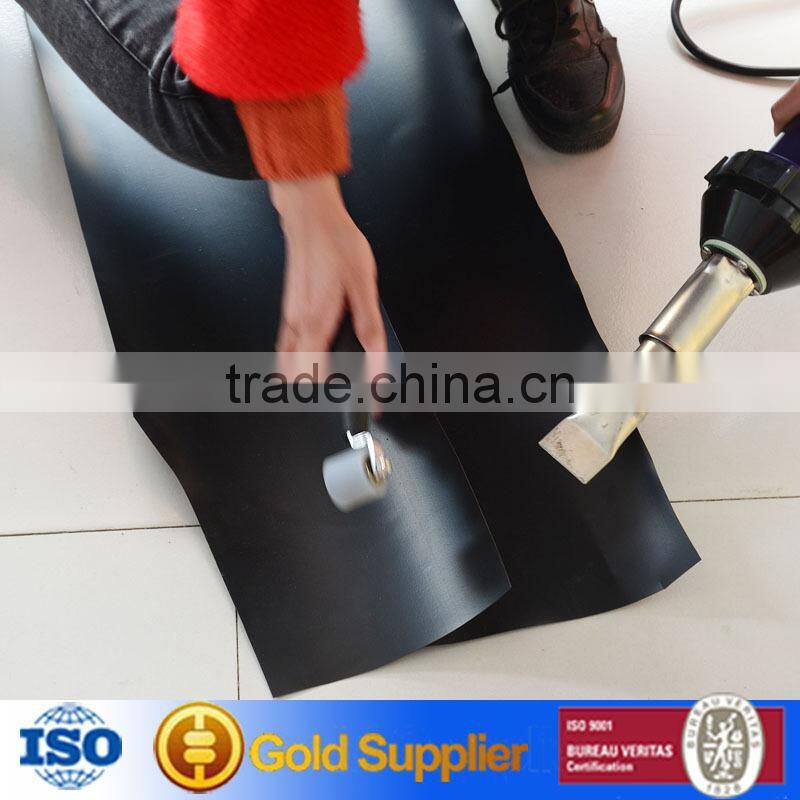

Application:

l  Welding of thermoplastic materials as well as single-ply flexible plastics and modified bitumen in the form of boards,

tubes, profiles, lining membranes, coated materials, films, foams, tiles and sheets. The following procedures are possible:

overlap welding, welding with rod, with tape, butt welding and melt welding.

l  For foaming, ending and sealing of the thermoplastic semi-finished materials and plastic granules.

l  Drying of water-damp surfaces.

l  Shrinking of heat-shrink sleeves, films, tapes, solder sleeves, preformed and mould part.

l  Soldering of copper pipes, solder joints and metal foils.

l  Defrosting of frozen water pipes.

l  Activating and dissolving of solvent free adhesive and fusion adhesives

l  Igniting of wood shavings, paper, coal or straw in furnaces

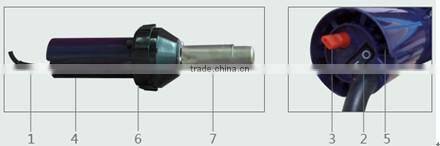

Construction:

Readiness of working:

l  Fit appropriate nozzle as required

l  Connect tool to the line/mains

l  Adjust air temperature

l  Switch on main switch and heat up the tool for approximately 5 minutes.

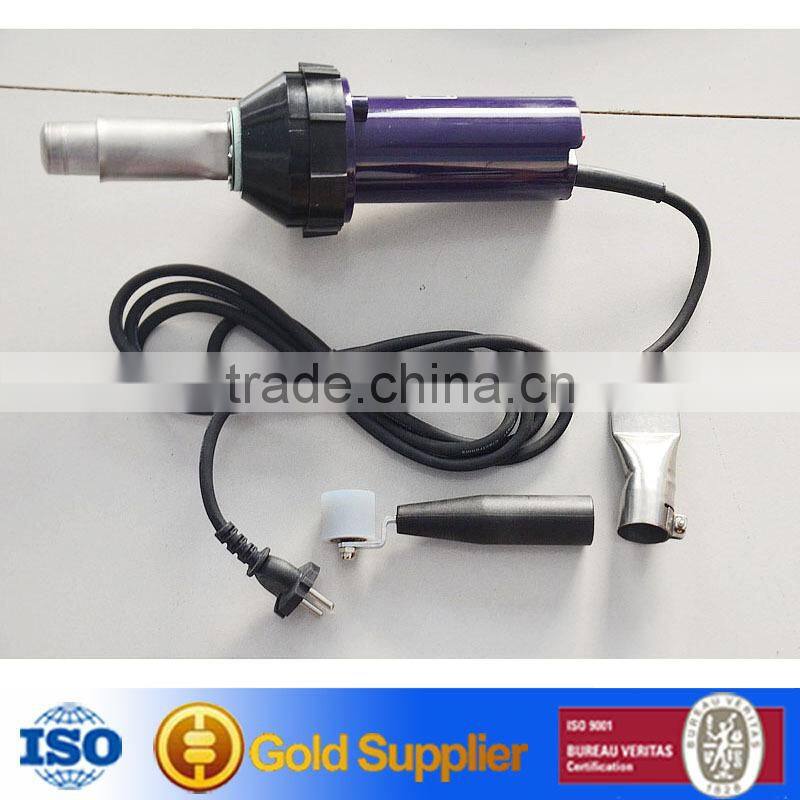

Changeable nozzles

Do not touch the hot nozzle and make sure to place it on a heat resistant surface because of the fire hazard..

Put the nozzle on the heater tube and secure the nozzle by the screw on the cap.

Use nozzles only.

Maintenance:

l  Clean polluted air filter with a small brush or replace it

l  Clean welding nozzle with a steel brush.

l  Check mains cable and plug for electrical and mechanical damage.

Service and repairs

l  The motor switches off automatically when the brush reach their minimum length. Have the tool checked by your

service center. The life of the brushes is about 800 hours.

l  Repairs should be carried out by authorized service centers only. They guarantee a specialized and reliable service.

l  Sorry for not special notice in advance if there would be changes on parameters.

   Warning

Unplug the tools before opening it.

Incorrect use of hot-air blowers can cause fire and explosion hazardous especially near combustible materials and explosive

gases

Do not touch heater tube and nozzle when they are hot. They may cause burns. Do not point hot air flow in the direction of people

or animals.

     Caution:

The voltage rating stated on the tool must correspond to line/mains voltage.

For personal protecting on the building site, we strongly recommend the tool be connected to a GFCI(Ground Fault Circuit Interrupter)

or a RCCB (Residual Current Circuit Breaker)

The tool much be operated with supervision. Heat can reach combustible materials which are out of sight.

Protect tools from damp and wet
