HDPE pipe butt fusion welding machine

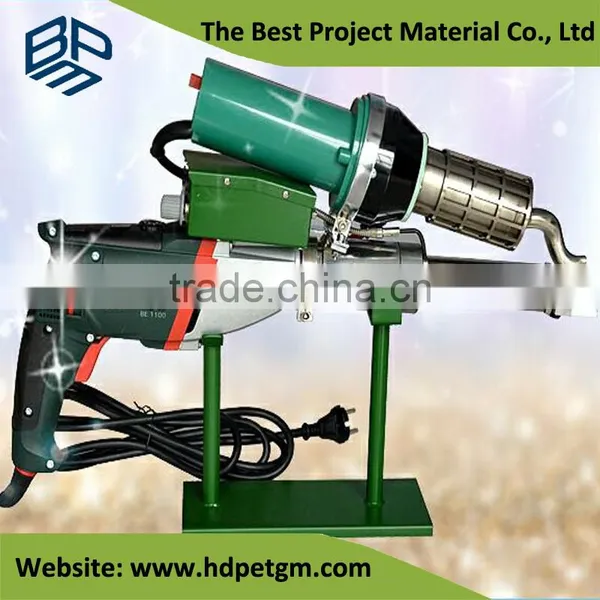

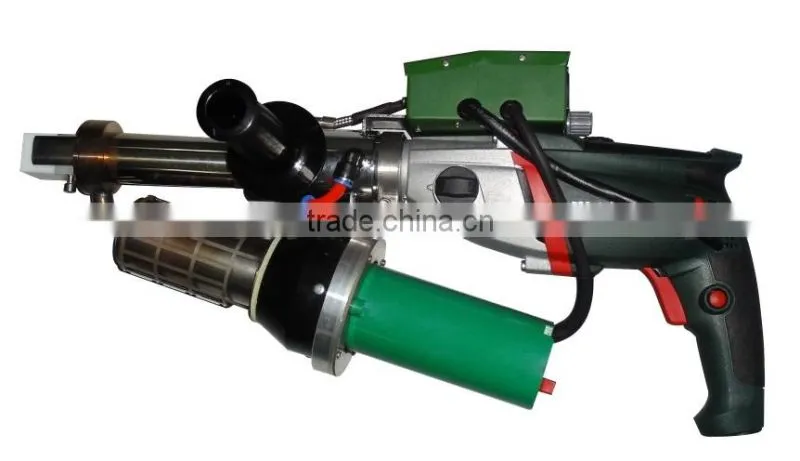

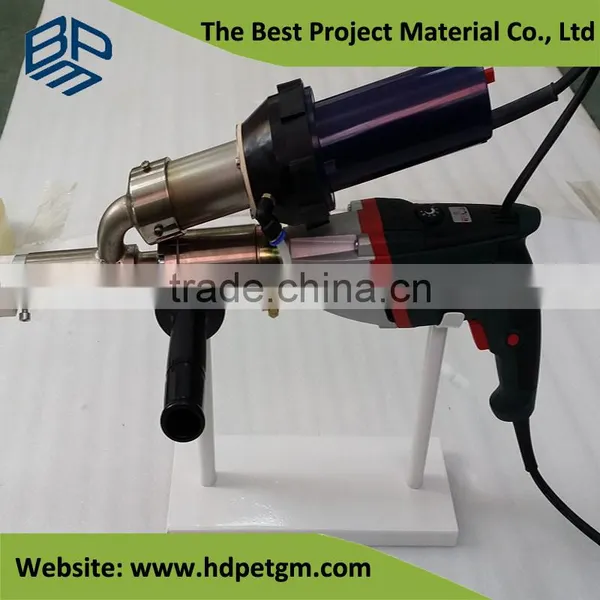

Extrusion welding gun pictures>>>
Please read operating instructions carefully before use and keep it for further reference.
Product Overview>>>
BPM600/610 Series Extruding plastic gun is a new type of hot air welder which imported foreign advanced technology.
Reasonable structure, convenient operation, continuous welding, high working efficiency, powerful extrusion, to make the
weld strength is greatly improved,It is the ideal product for a variety of thermoplastic welding processing.
Available welding materials: thermoplastic HDPE, PP, PVDF, especially PE .Do not apply in a conductive plastic (PE-EL), or cause the machine to produce a conductive short-circuit.
Main technical parameters>>>
BPM610A High Power Hand Extruder:
1)Voltage: 220V
2)Power: extrusion system drive motor: 1020W heating systems: heating tube 1020W + hot air welding torch 1600W
3) Temperature: adjustable air temperature 20 to 600 ° C adjustable plastic extrusion heating temperature is 0 ~ 450 °C
4)preheating air volume: 500L/min
5) welding rod diameter size: Φ3.0mm ~ 4.0mm
Appearance and components(BPM610B for example)>>>
Operation procedures>>>
1) Put the welding gun on the shelf, install the handle, plug in the mains plug.
2) Open the control box switch, welding temperature is generally set at 300 ° C, Open the hot air machine power switch,
thermostat knob, heated a few minutes to operate.
3) The right hand pull the motor switch, the motor starts to rotate. The new machines have noise, probably It mostly is
relevant to the resonance between the tool and the base or the close of the parts inside the tool.If the motor is very smooth,
and the internal sound disappears after sending welding rods.
4)The air temperature and air volume determine welding ‘s strength.Usually hot air temperature is 260 ~ 400 °
5)Hot air motor carbon brush life is about 800 hours, attention to early replacement, do not wait until the carbon brushes to run out.
6) When shutdown, please circumgyratehot air thermostat knob to the minimum, a few minutes blowing before they shut down
the hot air machine.
Product Features>>>
1)Imported hot air welding torch and imported driven system, high temperature, big torque, long service life, stable performance.
2)Light weight, easy to handle and available to operation at different angles.
3)Big extrusion volume can be welded more than 10mm welding seam.
4)Different welding shoes can be applied to different types of welding.
5)It is used in the tank and pipe and comply with Part 4 of the DVS standard (Germany Welding Association).
Product warranty>>>
This welding machine warranty period from the date of delivery for one year
Packaging and shipping of hot air tool(welding gun)>>>
