Help CenterPET Short Fiber Nonwoven Geotextile 135g/m2 for Slope Protection
Related Products
-
PP Nonwoven Needle-punched Geotextile Hot Rolled With High Strength for RoadUS$ 0.17 - 2.69MOQ: 6000 Square Meters -
PET Nonwoven Needle-punched Geotextile for Road With High QuanlityUS$ 0.17 - 2.69MOQ: 6000 Square Meters
-
PP and PET Nonwoven Geotextile Fabric for Slope ProtectionUS$ 0.17 - 2.69MOQ: 6000 Square Meters
-
PP Nonwoven Geotextile FabricUS$ 0.17 - 2.69MOQ: 6000 Square Meters
-
Black PP Nonwoven Geotextile for Road in AmericaUS$ 0.17 - 2.69MOQ: 6000 Square Meters
>>Specification
| raw material | PET continuous filament fabric /PET staple fiber fabric |
| color | white/black/grey or as your request |
| gsm | 100g/m2 to 800g/m2 |
| roll size | width(1m to 6m),length(50m to 200m) |
| process | spun-bonded,needle punched,if required,heat-set is also available |
| packing | PP woven plastic bags |
| project | road construction,geomembrane protection,river bank erosion control,etc |
>>Features
- high elongation
- high tensile strength
- excellent permeablity
- durable CBR puncture resistance and UV stabilized
| No. | Specification(g/m2) | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 700 | 800 | 1000 | Remark |
| 1 | Weight deviation, % | -8 | -8 | -8 | -8 | -7 | -7 | -7 | -7 | -6 | -6 | -6 | -6 | -6 | |
| 2 | Thickness, mm≥ | 0.9 | 1.3 | 1.7 | 2.1 | 2.4 | 2.7 | 3 | 3.3 | 3.6 | 4.1 | 4.5 | 5 | 5.8 | |
| 3 | Width deviation,% | -0.5 | |||||||||||||
| 4 | Breaking strength, KN/m ≥ | 2.5 | 4.5 | 6.5 | 8 | 9.5 | 11 | 12.5 | 14 | 16 | 19 | 22 | 25 | 31 | MD and CD |
| 5 | Breaking elongation,% | 25~100 | |||||||||||||
| 6 | CBR bursting strength, KN≥ | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3.2 | 3.7 | 4 | 5 | |
| 7 | Sieve Size O90 mm | 0.07~0.2 | |||||||||||||
| 8 | Vertical permeability | Kx(10-1~10-3 ) | K=1.0 ~9.9 | ||||||||||||
| coefficient, cm/s | |||||||||||||||
| 9 | Tear strength, KN≥ | 0.08 | 0.12 | 0.16 | 0.2 | 0.24 | 0.28 | 0.33 | 0.38 | 0.42 | 0.46 | 0.53 | 0.6 | 0.75 | MD and CD |
>> Function of geotextiles
The isolation of the railway dregs and the roadbed, roadbed and the soft base, surface of the airdrome and parking lot and the groundsill, different dam materials. It isolates the soil and the gravel of two kinds different
granule pathway from the groundsill or other buildings.
2.Reinforcement
The highway, railway, soil-stone dam, breakwater, airport, backfill soil of retaining wall, slope protection, etc in which distributes the earth stress, prevents the side-displacement of the earth body and improves the earthbody stability.
3.Protection
It prevents the bank from being washed out, protects the bank and the
bottom, prevents the water and soil from being washed away

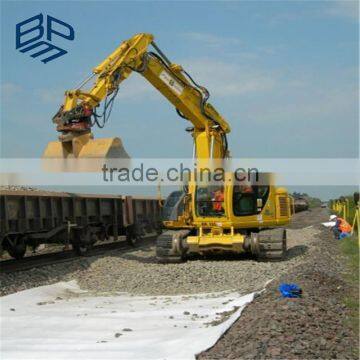

>>Application
All have a wide range of applications and are currently used to advantage in many civil engineering applications including roads,airfields,railroads,embankments,retaining structures,reservoirs,canals,dams,bank protection coastal engineering and reinforce the roadbed.

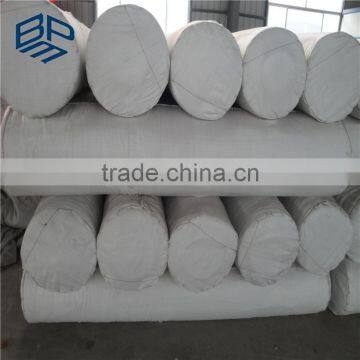

>>Our Packing
Geomembranes are wrapped double layers woven geotextile,and added two strips at both ends.
Geotextiles are wrapped double layers woven geotextile.
Of course, If you have any requests, we will package products as your request.
All products will be loaded container safely.
>>Our Certificates
We have obtained SASO, SONCAP, BV, ISO and other certificates.
And we also have passed DEKRA, Intertek, CNAS and other tests.
Our quality is reliable.
If you have any other test or certificate, we can do it for you.
**If you have any question ,feel free to contact me .
