Black Poly HDPE Geogrid and PP Biaxial Geogrid
Product Introduction:
Biaxial geogrid is made of high molecular polymer after extruded and laminated and punched into regular mesh
before longitudinal stretching.The material on the longitudinal and transverse has great tensile strength, this kind
of structure in the soil can also provide a more effectively undertake the chain and the spread of the thought system,
suitable for large area of permanent bearing foundation reinforcement.
Application:

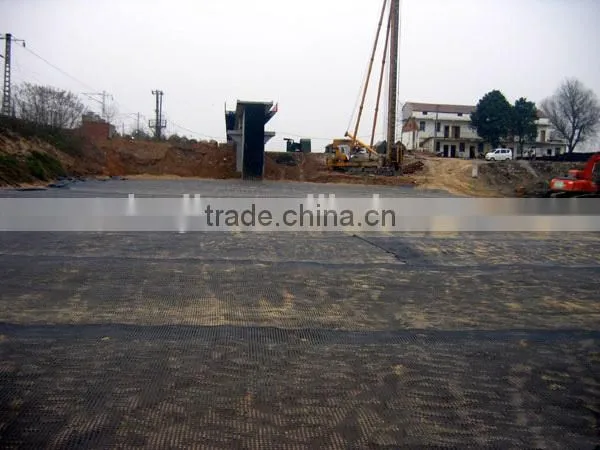

Suitable for all kinds of dam and roadbed reinforcement, slope protection,The cave walls reinforcement, Large airport,
parking lot, wharf freight yard and other permanent bearing foundation reinforcement.
1. Increase road (ground) base bearing capacity and prolong the service life of road (ground).
2. Prevent road (ground) surface collapse or crack, ground is beautiful and tidy.
3. Construction is convenient, save time, effort, and shorten the construction period, reduce maintenance costs.
4. Prevent culvert crack.
5. Enhance soil, prevent soil erosion.
6. Reducing cushion thickness, saving the cost.
7. To support the stability of slope planting grass mat afforest environment.
8. Can replace the metal mesh, used in coal mine underground false roof net.
Technical Parameter
|
Project Size |
Tensile Strength KN/m2 |
Elongation Rate % |
Strength at 2% elongation KN/M |
Strength at 5% elongation ≥KN/M |
||||
Longitudinal |
Transverse |
Longitudinal |
Transverse |
Longitudinal |
Transverse |
Longitudinal |
Transverse |
|
TGSG15-15 |
≥15 |
≥15 |
≤13 |
≤16 |
≥5 |
≥7 |
≤8 |
≤10 |
TGSG20-20 |
≥20 |
≥20 |
≤13 |
≤16 |
≥8 |
≥10 |
≤10 |
≤13 |
TGSG25-25 |
≥25 |
≥25 |
≤13 |
≤16 |
≥8 |
≥11 |
≤11 |
≤13 |
TGSG30-30 |
≥30 |
≥30 |
≤13 |
≤16 |
≥11 |
≥13 |
≤15 |
≤15 |
TGSG35-35 |
≥35 |
≥35 |
≤13 |
≤16 |
≥12 |
≥14 |
≤15 |
≤18 |
TGSG40-40 |
≥40 |
≥40 |
≤13 |
≤16 |
≥13 |
≥15 |
≤16 |
≤20 |
Company Profile
If you are interested in other geosynthetic products, please feel free to contact us.
