Biaxial Geogrid Bx1100 Biaxial Geogrid Price
US$ 0.12 - 2.1
MOQ: 5000 Square Meters
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
BPM
Model Number:
TGGS-Polyester Geogrid
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Polyester Geogrid Prices Plastic Material Geogrids TypeUS$ 0.12 - 2.1MOQ: 5000 Square Meters -
Plastic Geogrid Prices Polypropylene MaterialUS$ 0.12 - 2.1MOQ: 5000 Square Meters
-
Steel- Plastic Geogrid Used in Coal MineUS$ 0.12 - 2.1MOQ: 5000 Square Meters
-
Biaxial Geogrid for Slope ProtectionUS$ 0.12 - 2.1MOQ: 5000 Square Meters
-
High Tensile Biaxial Plastic Geogrid PricesUS$ 0.12 - 2.1MOQ: 5000 Square Meters
Place of Origin
Shandong, China
Brand Name
BPM
Model Number
TGGS-Polyester Geogrid
Material
Plastic

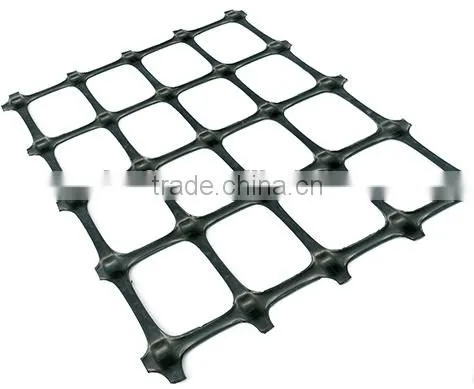

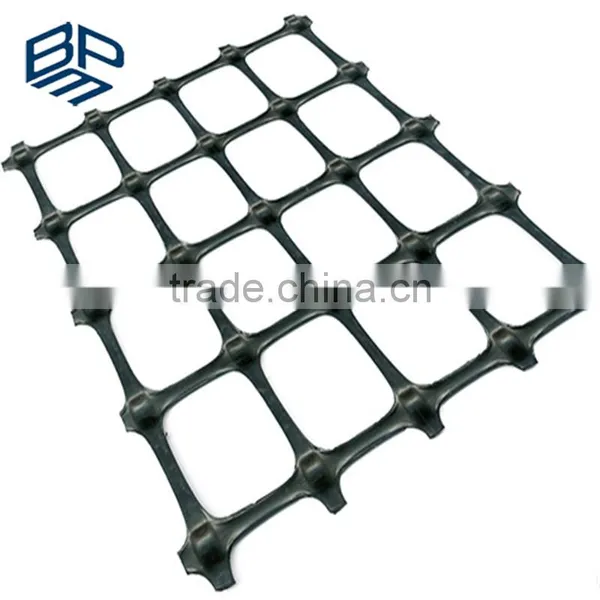

PP Biaxial Geogrid
Introduction :
The properties of Biaxial Geogrids, made in Polypropylene (PP) with their square apertures, high tensile strength and optimised geometry of nodes and ribs make them equal to any other similar material. The reinforcing action of PP Biaxial Geogrids lies mainly in confining soil and increasing its shearing resistance by a process of interlocking between the square ribs and the soil. The load dispersal effect from the interlocking mechanism is highly effective and can reduce sub-base thickness and construction cost. PP Biaxial Geogrids can be used with any kind of mechanical fill material. Two aperture size ranges are available for optimum matching with project fill. Standard Roll Dimensions
Technical parameter :
| Index Properties | Test Method | Unit | GG1515 | GG2020 | GG3030 | GG4040 |
| MD TD | MD TD | MD TD | MD TD | |||
| Polymer | -- | -- | PP | PP | PP | PP |
| Minimum Carbon Black | ASTM D 4218 | % | 2 | 2 | 2 | 2 |
| Tensile Strength@ 2% Strain | ASTM D 6637 | Kn/m | 5 5 | 7 7 | 10.5 10.5 | 14 14 |
| Tensile Strength@ 5% Strain | ASTM D 6637 | Kn/m | 7 7 | 14 14 | 21 21 | 28 28 |
| Ultimate Tensile Strength | ASTM D 6637 | Kn/m | 15 15 | 20 20 | 30 30 | 40 40 |
| Strain @ Ultimate Strength | ASTM D 6637 | % | 13 10 | 13 10 | 13 10 | 13 10 |
| Structural Integrity | ||||||
| Junction Efficiency | GRI GG2 | % | 93 | 93 | 93 | 93 |
| Flexural Rigidity | ASTM D 1388 | Mg-cm | 700000 | 1000000 | 3500000 | 10000000 |
| Aperture Stability | COE Method | mm-N/deg | 646 | 707 | 1432 | 2104 |
| Dimensions | ||||||

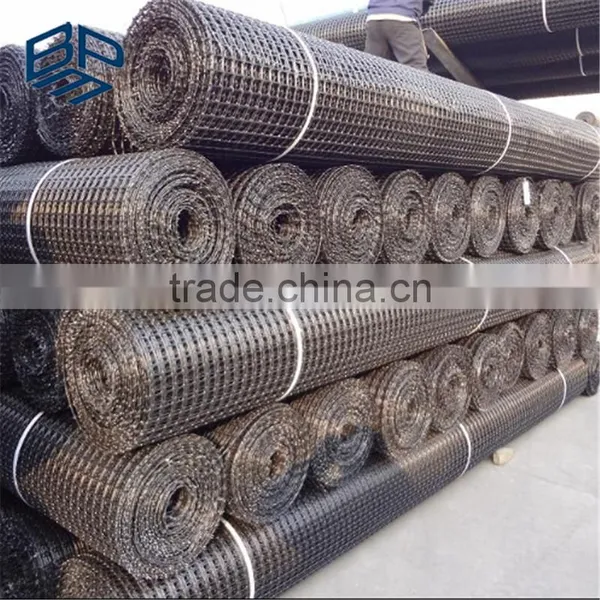

| Roll Width | -- | M | 3.95 | 3.95 | 3.95 | 3.95 |
| Roll Length | -- | M | 50 | 50 | 50 | 50 |
| Roll Weight | -- | Kg | 39 | 50 | 72 | 105 |
| MD denotes Machine direction. TD denotes transverse direction. | ||||||
Applications:
Make reinforce treatment for various kinds of soft soil foundation to evenly distribute load stress and reduce uneven settlement, not easy to generate static electricity, and flammability property good in the coal mine. It is easy to wash coal.

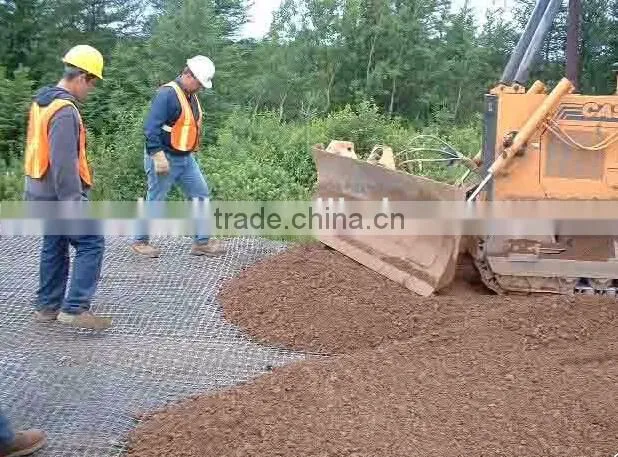

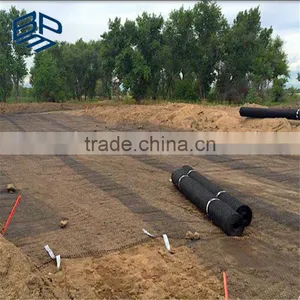

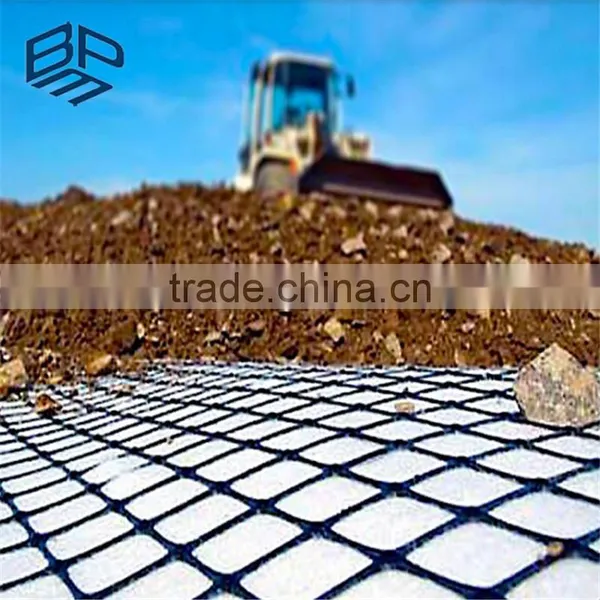

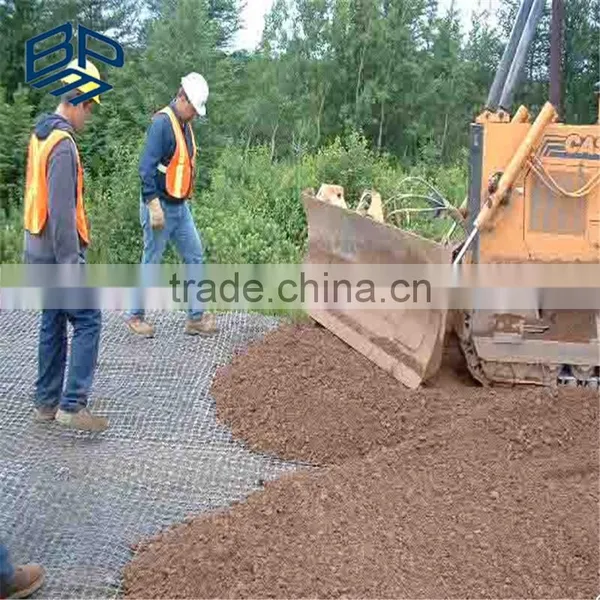

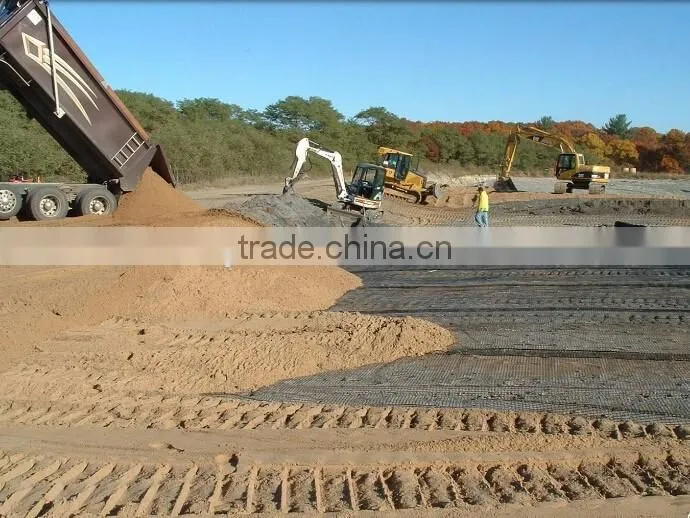

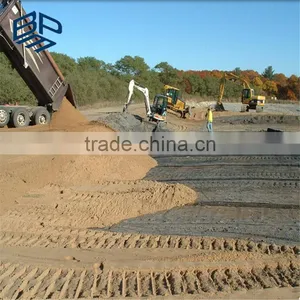

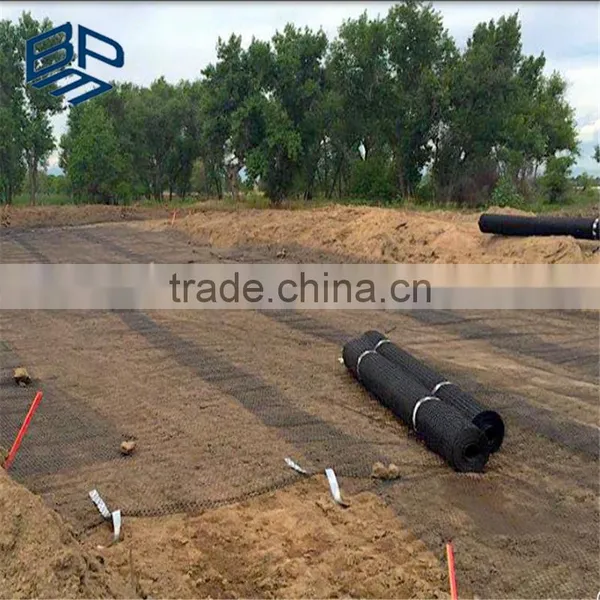

Used in highway, railway, port, airport and municipal project. Support in the recovery working face of coal mine and roadway in the coal mine.
Function:
1. Improving bearing capacity of road foundation and prolong its service life
2. Preventing road surface from subsiding and cracking
3. Be convenient for construction, reducing cost and maintaining expense for the project
4. Providing stability for slopes and avoid the losing of the water and soil
