Home > Construction & Decoration > Pipe Fittings > Tee > Hdpe pp Saddle Clamp/compression Adding Exit Clamp Saddle for Water Supply Pipe Fittings

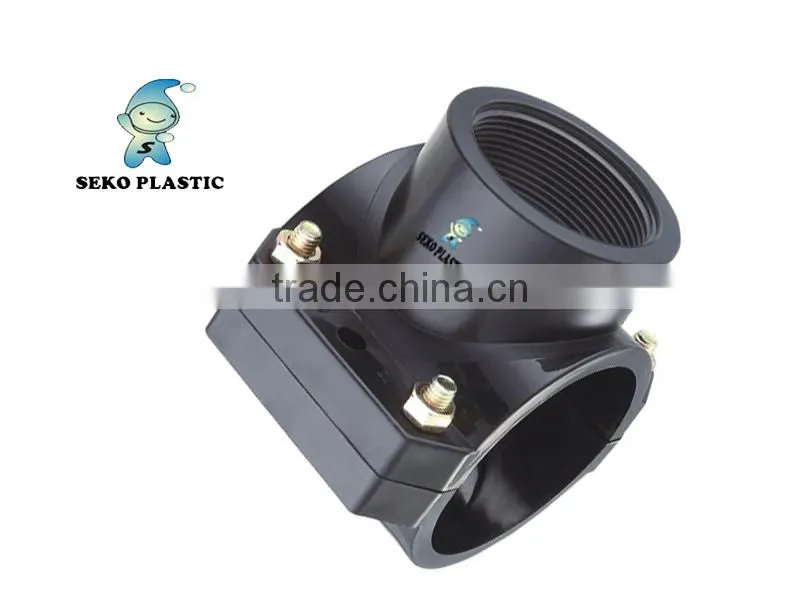

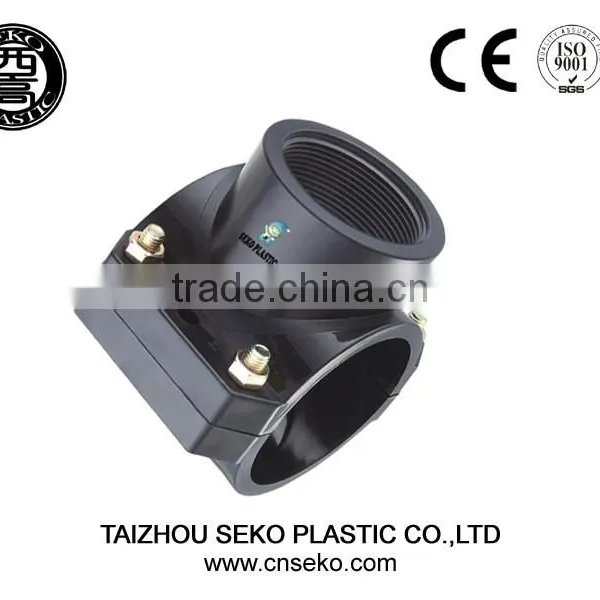

Hdpe pp Saddle Clamp/compression Adding Exit Clamp Saddle for Water Supply Pipe Fittings

Hdpe pp Saddle Clamp/compression Adding Exit Clamp Saddle for Water Supply Pipe Fittings thumbnail-1
Hdpe pp Saddle Clamp/compression Adding Exit Clamp Saddle for Water Supply Pipe Fittings photo-1
US$ 0.2 - 1.5 MOQ: 1 set
Key Specifications
Get Latest Price
Material:
Plastic
Technics:
Forged
Type:
Other, clamp saddle
Contact Supplier Request Quote Chat Now
Taizhou Seko Plastic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Material Plastic
Technics Forged
Type Other, clamp saddle
Place of Origin Zhejiang, China
Model Number SK
Brand Name SEKO
Connection Other, fast connecting
Shape Equal
Head Code Other, round

Specifications



saddle clamp(25mm*1/2"-250mm*4")
Pressure piping applications
Ease of installation
Water distribution,Irrigation







CLAMP SADDLE



SIZE BOLTS AND NUTS qty/ctn Package size n.w. g.w.
pc m m m kgs kgs
25x1/2" 2 200 0.45 0.35 0.31 21.00 21.7
25x3/4" 2 200 0.45 0.35 0.31 22.00 22.7
32x1/2" 2 200 0.45 0.35 0.31 20.20 20.9
32x3/4" 2 200 0.45 0.35 0.31 21.00 21.7
32x1" 2 200 0.45 0.35 0.31 22.00 22.7
40*1/2" 2 160 0.5 0.3 0.28 20.00 20.7
40*3/4" 2 160 0.5 0.3 0.28 20.50 21.2
40*1" 2 160 0.5 0.3 0.28 21.00 21.7
50*1/2" 2 150 0.5 0.3 0.3 21.30 22
50*3/4" 2 150 0.5 0.3 0.3 22.20 22.9
50*1" 2 150 0.5 0.3 0.3 23.30 24
63*1/2" 4 100 0.53 0.38 0.34 26.50 27.5
63*3/4" 4 100 0.53 0.38 0.34 27.00 28
63*1" 4 100 0.53 0.38 0.34 27.50 28.5
63*1-1/4" 4 100 0.53 0.38 0.34 28.20 29.2
63*1-1/2" 4 100 0.53 0.38 0.34 29.00 30
75*1/2" 4 100 0.56 0.35 0.35 22.50 23.5
75*3/4" 4 100 0.56 0.35 0.35 23.00 24
75*1" 4 100 0.56 0.35 0.35 23.50 24.5
75*1-1/4" 4 80 0.48 0.38 0.34 29.00 30
75*1-1/2" 4 80 0.48 0.38 0.34 29.00 30
75*2" 4 80 0.48 0.38 0.34 29.50 30.5
90*1/2" 4 50 0.56 0.41 0.33 21.00 22
90*3/4" 4 50 0.56 0.41 0.33 21.20 22.2
90*1" 4 50 0.56 0.41 0.33 21.80 22.8
90*1-1/4" 4 50 0.58 0.41 0.33 22.20 23.2
90*1-1/2" 4 50 0.58 0.41 0.33 22.50 23.5
90*2" 4 50 0.58 0.41 0.33 23.00 24
90*2-1/2" 4 50 0.58 0.41 0.33 23.00 24
110*1/2" 6 30 0.56 0.35 0.35 17.50 18.5
110*3/4" 6 30 0.56 0.35 0.35 17.90 18.9
110*1" 6 30 0.56 0.41 0.35 17.90 18.9
110*1-1/4" 4 30 0.56 0.41 0.35 18.50 19.5
110*1-1/2" 4 30 0.56 0.41 0.35 18.50 19.5
110*2" 4 30 0.58 0.41 0.35 18.70 19.7
110*2-1/2" 4 30 0.58 0.41 0.35 19.30 20.3
110*3" 4 30 0.58 0.41 0.35 19.80 20.8
125x1/2" 6 25 0.56 0.35 0.33 15.00 16
125x3/4" 6 25 0.56 0.35 0.33 15.20 16.2
125x1" 6 25 0.56 0.35 0.33 15.50 16.5
125x1-1/4" 6 25 0.56 0.35 0.33 15.50 16.5
125x1-1/2" 6 25 0.56 0.35 0.33 16.00 17
125x2" 6 25 0.56 0.35 0.33 16.50 17.5
160x1/2" 6 20 0.56 0.35 0.35 20.80 21.8
160x3/4" 6 20 0.56 0.35 0.35 21.00 22
160x1" 6 20 0.56 0.35 0.35 21.30 22.3
160x1-1/4" 6 20 0.56 0.35 0.35 21.50 22.5
160x1-1/2" 6 20 0.56 0.35 0.35 21.50 22.5
160x2" 6 20 0.56 0.35 0.35 18.20 19.2
160x2-1/2" 6 20 0.56 0.35 0.35 18.50 19.5
160x3" 6 20 0.56 0.35 0.35 19.00 20
160x4" 6 18 0.56 0.35 0.35 20.50 21.5
200x1/2" 6 10 0.56 0.35 0.35 21.50 22.5
200x3/4" 6 10 0.56 0.35 0.35 21.80 22.8
200x1" 6 10 0.56 0.35 0.35 22.50 23.5
200x1-1/4" 6 10 0.56 0.35 0.35 23.00 24
200x1-1/2" 6 10 0.56 0.35 0.35 23.00 24
200x2" 6 10 0.56 0.35 0.35 17.30 18.3
200x2-1/2" 6 10 0.56 0.35 0.33 17.50 18.5
200x3" 6 10 0.56 0.41 0.33 18.20 19.2
200x4" 6 10 0.56 0.41 0.33 19.50 20.5
250x1/2" 6 10 0.56 0.35 0.35 16.90 17.9
250x3/4" 6 10 0.56 0.35 0.35 17.20 18.2
250x1" 6 10 0.56 0.35 0.35 17.50 18.5
250x1-1/4" 6 10 0.56 0.35 0.35 18.00 19
250x1-1/2" 6 10 0.56 0.35 0.35 18.00 19
250x2" 6 4 0.56 0.35 0.35 11.30 12.3
250x2-1/2" 6 4 0.56 0.35 0.35 11.50 12.5
250x3" 6 4 0.56 0.35 0.35 11.80 12.8
250x4" 6 4 0.56 0.35 0.35 12.00 13






WE ARE THE FIRST MANUFACTORY THAT DOING

PP COMPRESSION FITTINGS IN CHINA

BEST QUALITY IN SEKO













FOCUS ON QUALITY

SERVICE WITH HEART

CUSTOMER FIRST

WORK FOR FUTURE
