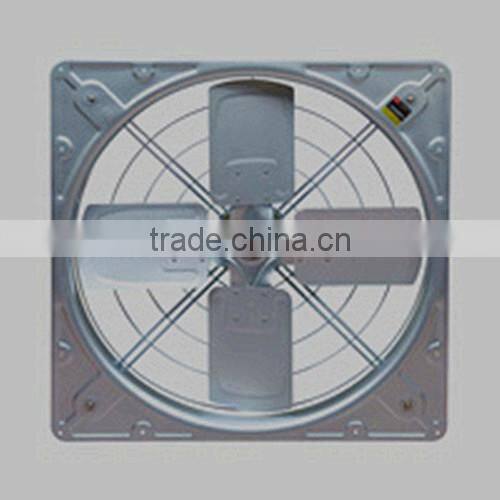

Wall Mounted Reversible Heavy Duty Industrial Exhaust Fan

Specifications

Less Investment
Larger Effectiveness
Power Saving
Strong Cooling Effect
Superior Air Quality

1.Summary:

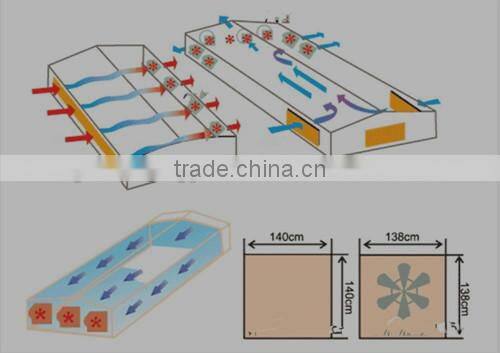

Wall Mounted Reversible Heavy Duty Industrial Exhaust Fan exhausting air out the room pressure falls, indoor



air becomes thin, suction fan is characterized by the formation of a negative pressure zone, the air due to the



pressure difference between the compensation into the room. In practical applications, industrial plants,



centralized suction fan installed in the plant side air intakes in the plant room on the other side, the air intake



ports by the suction fan convection hair. In this process, the suction fan near the doors remain closed,forcing



the air to flow into the inlet side of the shop windows compensation. Air lined up orderly workshop by the inflow



of air intakes, flowing from the workshop, the workshop by the suction fan discharge. Ventilation thorough,



efficient, and ventilation rate can be as high as 99%. Through specific engineering, according to design



ventilation rate and wind speed, no fever, harmful gases, dust can quickly exhaust smoke shop, any



disposable poor ventilation can solve the problem. From a few seconds to turn on the fan to achieve



 ventilation.



2.Features:

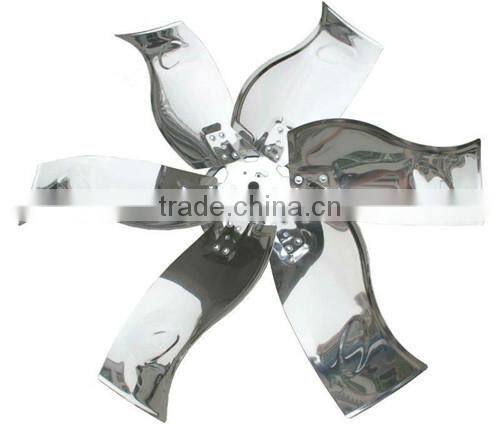

(1 ) Frame and blades made of glass fiber reinforced plastic material (high strength steel) one piece, acid corrosion.
(2) Aluminum efficient motor, 0.75KW, energy efficient.
(3) Direct drive, no belts, provincial trim, maintenance-free.
(4) Four-point fixing bracket, motor fixed more firmly.
(5) machine with stainless steel screws, anti-corrosion, acid and alkali.
(6) Using PVC blinds, anti-rain, anti-mosquitoes.
(7) Using the safety net, and to prevent foreign invasion, to increase security.
(8) Features a waterproof tank, fell into the hole to prevent water intrusion.



3.Specification:



Model	Power	Voltage(v)	Fan Dia(mm)	RMP(r/min)	Air Flow(m3/h)	Noise(db)	Outer size(mm)
GLT-1400	1.5	380	1400	325	55800	<70	1530*1530*400

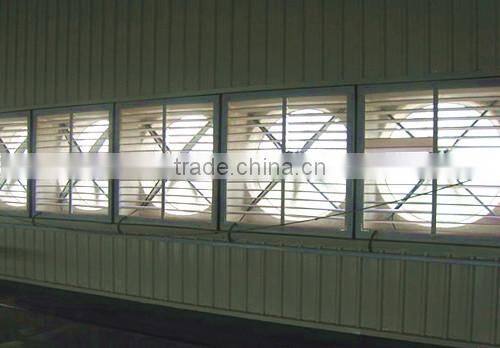

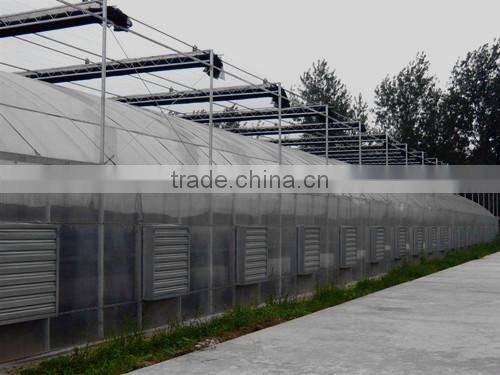

4.Display:
