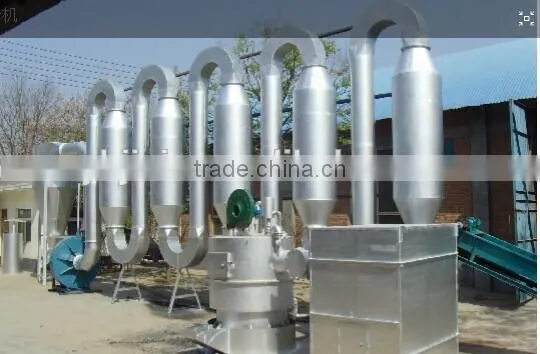

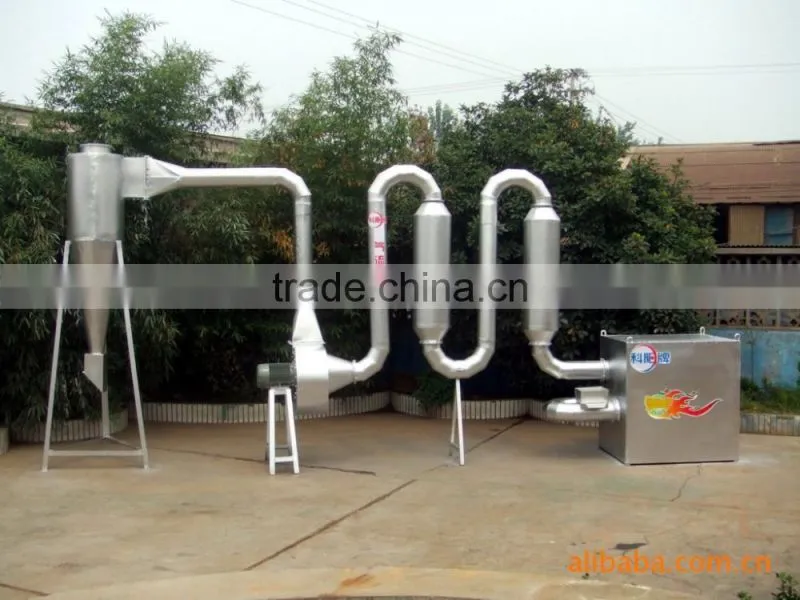

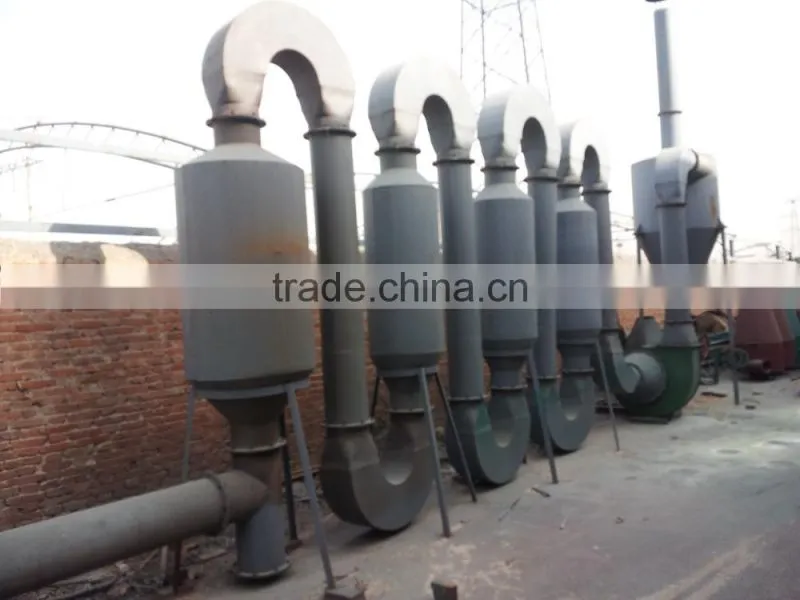

Airflow wood sawdust dryer machine
1. The general introduction of the airflow wood sawdust dryer machine
we have two types of the sawdust dryer , one is the air flow type sawdust dryer with samll capacity , the other is the wood sawdust rotary drum dryer .
2.The general introduction of the airflow wood sawdust dryer machine

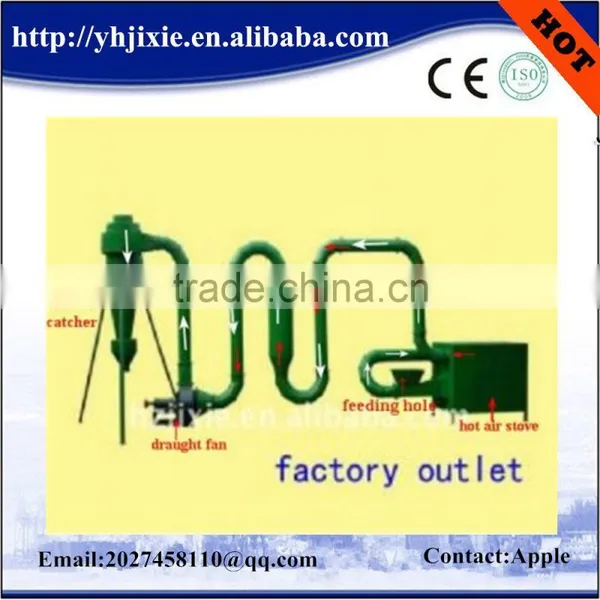

This eco-friendly dryer dryer is suitable for drying materials of moisture 30~60%. The eco-friendly dryer is equipped with two fuel boilers, inlet, steel pipe, exhaust blower (fan), air lock and cyclone. Wet materials are put into the hopper. The fuel boiler generates hot air which mixes with wet materials and then is sucked into the pipes by the exhaust blower (fan) quickly. And then hot air is flowing and going though the curving pipes and buffer (drying chamber) of eco-friendly dryer, thus wet materials is finished to dry, and the dried materials are discharged from the outlet with air lock. This eco-friendly dryer reduces the moisture to 8~12% with the advantages of low cost consumption and high efficiency.
3.(1) The general introduction of the airflow wood sawdust dryer machine

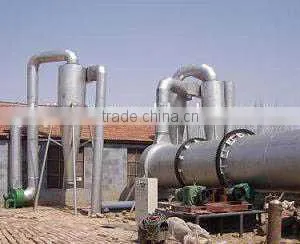

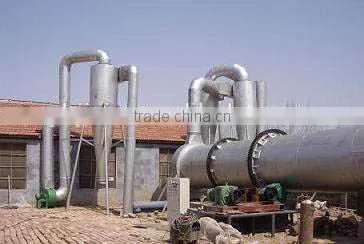

wood roatry drum dryer adopts direct flow type of heating with heat soure from firing unit. The material to be dried is pushed back immindiately by spiral board when enters the shell from feeding tank and feeding chute. Because the dryer is installed in slope, material flows to the back end under gravity and rotation force, meanwhile, sawdsut drying system is lifted by board repeatedly and thrown down accordingly, which make the material form even curtain, and exchange heat sufficiently with inner the heat flow. In the end, water in the material is dried by repeatedly scattering .
(2)The specifications of the airflow wood sawdust dryer machine with capacity 800-2500kg/h capacity :
Model |
YH630 |
YH800 |
YH1000 |
YH1200 |
YH1500 |
Capacity kg/h |
600-800 |
800-1000 |
1200-1500 |
1500-2000 |
2000-2500 |
Main Power |
5.5kw |
7.5kw |
7.5kw |
11kw |
15kw |
Air lock power |
1.1kw |
1.5kw |
2.2kw |
2.2kw |
2.2kw |
Weight |
2600kg |
2800kg |
3800kg |
4500kg |
5000kg |
Diameter of roller |
630mm |
800mm |
1m |
1.2m |
1.5m |
Length of roller |
9m |
10m |
10m |
12m |
12m |
Total length |
9+4m |
10+5m |
10+5m |
12+6 |
12+8m |
Wood waste consumption |
15-20kg/h |
20-25kg/h |
30-40kg/h |
40-50kg/h |
50-60kg/h |
Moisture |
From 40-70% to 8-12% |
||||
Any question about airflow wood sawdust dryer machine, please be free to contact Apple
