| Detail Description Of agriculture spray machine | ||||

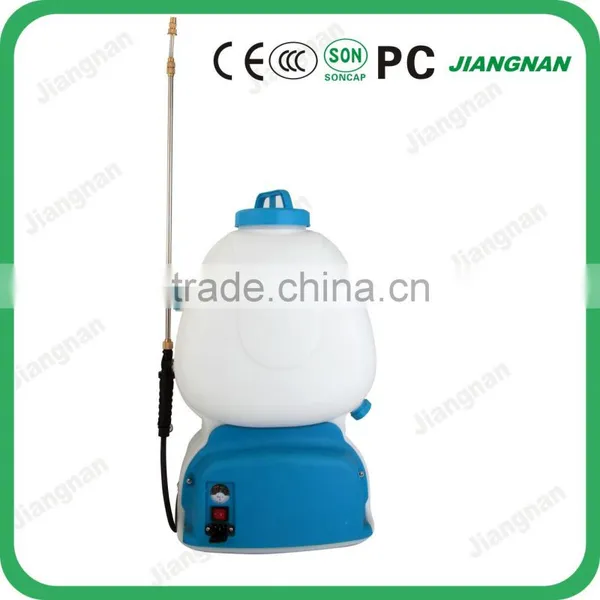

| 20L Agricultural/Battery/Knapsack Sprayer | ||||
Model |
JN-MD20B | Logo | JIANGNAN | |
G.W. |
5.5kgs | Payment | TT, L/C | |
| G.W. | 6.3kgs | Mini order | 300pcs | |
| Hose | 1.3M | Delivering time | 15-20 days | |
| Capacity | 20L | Original place | Taizhou, China | |
| Pressure | 0.2-0.4Mpa | Operational side | Left / right | |
| Size | 41*21*52cm | Power Type | rechargeable battery | |
| Lance | Stainless Steel Lance | Outer packing | 3cartons/box | |
| Switch | plastic switch | Inner packing | 1/pc color box | |
| Battery | 12V8AH 12V/12A | Departure port | Ningbo, Shanghai | |
| Pump | cut off pump 80PSI 100PSI | Supply capacity | 10000pcs/month | |
| Charger | 12V1.0A / 12V 1.7A | Working time | 4-5 hours after full charger | |
| Material | PE | Loading QTY | 20ft: 630pcs | |
| Nozzle | Three nozzles for free | 40ft HQ: 1520pcs | ||
| Certification: CE(Conformite Europeenne),CCC(China Compulsory Certificate) | ||||
|

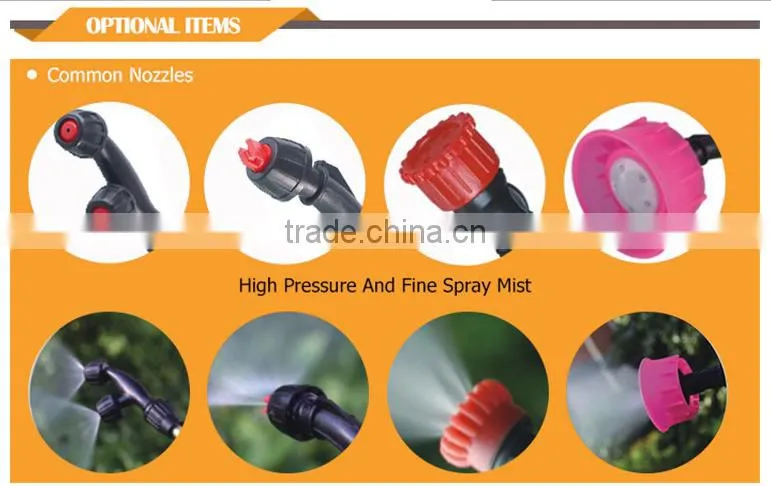

Nozzles(standard for each sprayer):
2-hole nozzle for fog, spraying diameter near 140mm.
4-hole nozzle for fog, watery, spraying distance can be adjust according to demand.
Spraying diameter(fog) near 100mm, spraying distance 0-3.5M.
5-hole nozzle for wide range, good atomization effect, spraying diameter near 130mm.
Note: our company have more than 100 nozzles for customers to choose. Brass nozzles, plastic
nozzles,adjustable nozzles,1-hole-multi-head,1-head-multi-hole, flower nozzles, shield nozzles,
annular nozzles,garden sprinklers,...etc.Details can refer to our catalogue.
If users want to spray for high crop or trees,we can change parts to spraying gun or make the
pressure more high(change high-pressure pump).
• Available colors for choosing:
1.Blue tank+yellow base;2.Yellow tank+black base;3.White tank+red base;4.Green tank+yellow base . If you have many quantity , the color is no problem.

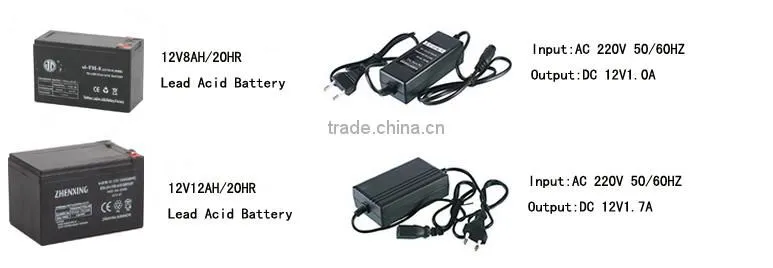

•Battery and Charge
Continuous working time:
4-5 hours within 8AH battery, 2.6L pump.
7-8 hours within 12AH battery, 2.6L pump.
Battery charging time:
8AH: 8 hours (1.0A charger)
12AH: 8 hours (1.7 A charger)

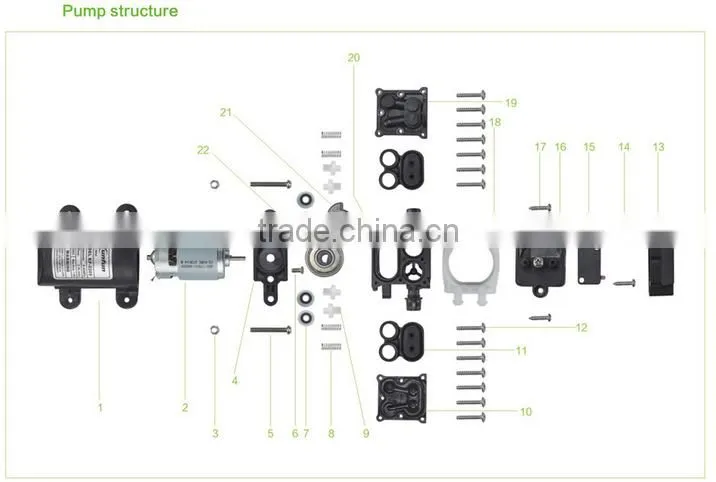

Pump:
Volts: 12V (9-14.4V)
AMPS: 2.1A
Flow: 0.7GPM (2.6LPM)
Press: 80PSI (5.5Bar) Cutoff /100PSI
Note: BBRG, Thermal protected
Note:
1. Mare sure that whether the current of output voltage corresponds to the battery and poles.
2. The indication lamp is red when charge, and green when be full of electric or float charging.
3. Please keep moist-resistant and shock resistant, the surrounding is required with
goodventilation when charge.
4. Please don’t detach it because ints inside has high voltage, only use it in dry place indoors.
5. Please read carefully the directions of product before use.
