Specifications
1.High Cooling Efficiency2.Long Service Time
3.No Water Carry-over
4.Environmentally friendly
5.high corrosion-resistance
We are a professional manufacturer of
1 evaporative cooling pad
2 cooling pad wall and frame
3 industrial exhaust fan
4 evaporative air cooler

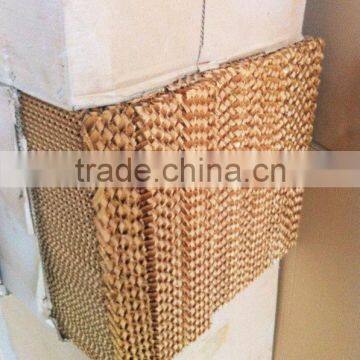

Evaporative cooling pad Features:

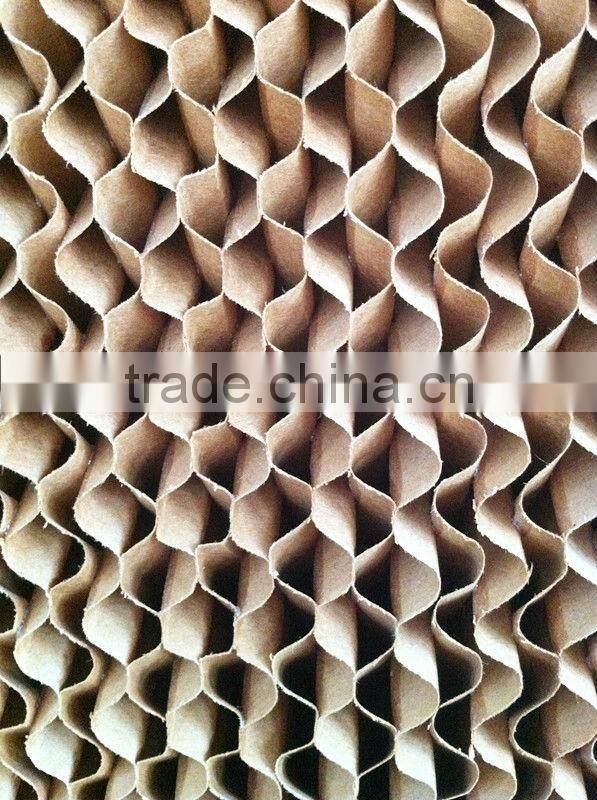

1) Corrugated paper with the spatial crossing linking technology, high absorbability, high water resistant, anti-mildew and long service life.
2) Large evaporation area, cooling efficiency as high as 80%.
3) The product absorbs water naturally, with fast speed of pervasion and lasting effectiveness. One drop of water can diffuse within 4~5 seconds. The natural absorption height is 60~70mm/5minutes, as 200mm/1.5 hours, having reached international standard.
4) The product does not contain phenol which is irritant to the skin and the like chemical products. It is safe, energy saving, environmental protective, economic and durable.
5) Galvanized sheet and aluminum panel optional.
Cooling pad parameters table (Any size can be customized)
Specification |
5090 |
6090 |
7090 |
Height (mm) |
1500 1600 1800 2000 |
1500 1600 1800 2000 |
1500 1600 1800 2000 |
Width (mm) |
200 300 600 |
200 300 600 |
200 300 600 |
Thickness (mm) |
100 150 200 300 |
100 150 200 300 |
150 100 200 300 |
Ripple Height |
5 |
6 |
7 |
Ripple Angle |
45*45 |
45*45 |
45*45 |
Working Principle :
When the water cross the cooling pad, the water become water film on the surface of the pad.
The water film exchange heat with the passing air and evaporate into the air.
As the principle of evaporative cooling, controlling the temperature and humidity through modifying humidifying volume and the ventilation size.

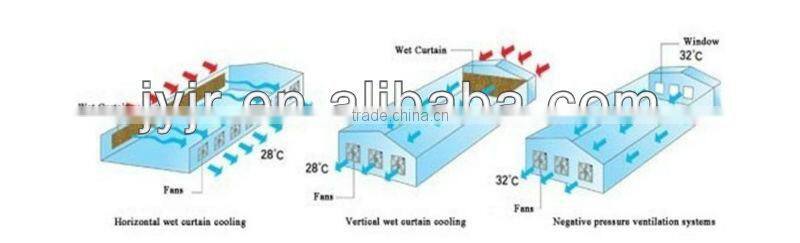

Elementary diagram:
Production Line:

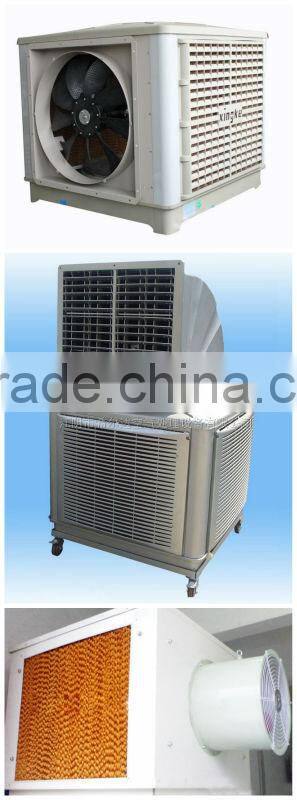

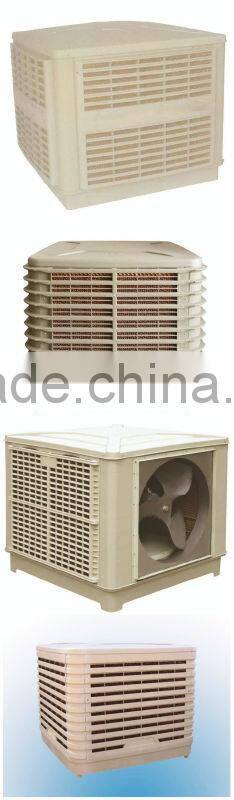

Evaporative cooling pad for different type AIR COOLER ,use for HOME,INDUSTRIAL,LIVESTOCK,GREENHOUSE,FARM.Etc
Entrucking:
Our company is sincere to cooperate with friends in the same industries of all works of life to create a bright future together.
If you are interested in our company or want to get more details about our products, please contact us. :)
