SKJ200 Wood Sawdust Pellet Press Machine SKJ200

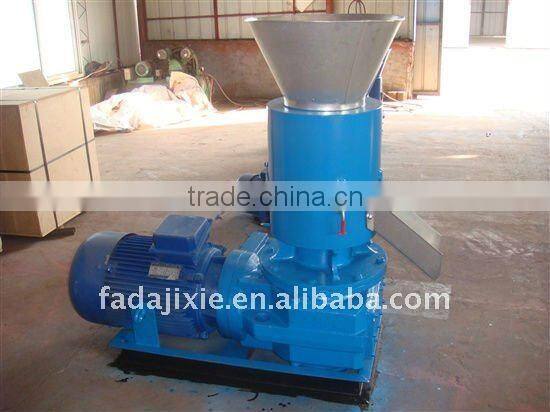

SKJ200 Wood Sawdust Pellet Press Machine SKJ200 photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Wood Pelletizer
Use:
making wood dust,straw pellets
Place of Origin:
Shandong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.
Type Wood Pelletizer
Use making wood dust,straw pellets
Place of Origin Shandong, China
Brand Name FADA
Model Number SKJ200
Certification CE&ISO9001:2008

Specifications

Wood pellet press machine
1.gearbox life without refueling
2.low energy,high efficiency
3.awdust,straw,stalk pellets
4CE&ISO

 SKJ series flat-die wood sawdust pellet mill



Feature (flat die machine I): The use of technology a unique three-in-one machines to complete low-temperature drying, cooling, screening the entire process. The machine with low investment and low operating costs.

Feature (flat die machine): gearbox life without refueling.



Flat die pellet mills have durable operation with high quality.

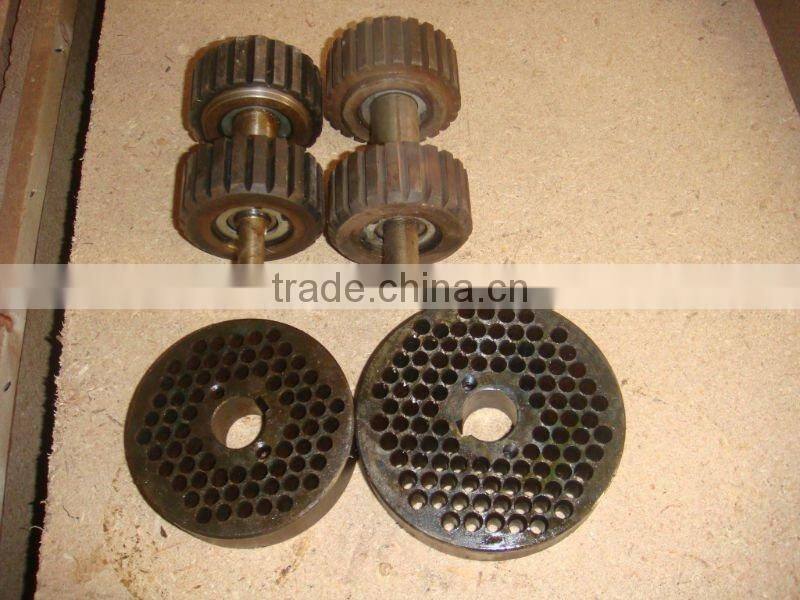

The machines adopt the technology from Germany; with special design reduce the space between the die and the rollers a lot, the lifetime of the die and rollers lengthened a lot.
Because of the high pressure and stable operation, our wood pellet mills can make good density pellets without bond.
The machines have the oil pump matched, which can lubricate the rollers automatically when they are working.

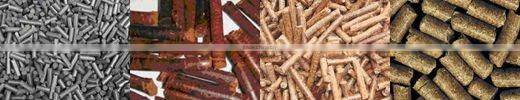

The materials that can be used for making pellets as follows,
Coarse fiber like wood sawdust, cotton stalk and other biomass for burning.
Making pellets from corn, bean, stalk, rice husk, weeds, straw and so on for feed.
Also make biological fertilizer, organic fertilizer.

Specification

MODEL NO.

OUTPUT(KG/H)

POWER(KW)

PARTICLE SPECLFACATION(MM)

DYNAMIC CONFIGURATION

SIZE(MM)

WEIGHT(PACKAGED)(KG)

200

100

7.5

6-8

GEAR BOX

1150*530*750

320

250

150

15

6-8

GEAR BOX

1250*600*850

400

300

200

22

6-10

GEAR BOX

1300*600*900

550

350

400

30

6-15

GEAR BOX

1500*850*1400

800

450

600

45

6-20

GEAR BOX

1600*850*1650

1000

550

1000

55

6-30

GEAR BOX

1600*850*1650

1600

800

1500-2000

110

6-30

GEAR BOX

2000*1050*2050

3500



SKJ200 wood sawdust pellet press machine SKJ200





SKJ200 wood sawdust pellet press machine SKJ200





SKJ200 wood sawdust pellet press machine SKJ200





SKJ200 wood sawdust pellet press machine SKJ200





SKJ200 wood sawdust pellet press machine SKJ200
